HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material

HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material

ST-20PPS-600

€10,32
€10,32
Sale Sold out

Out of stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material
HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material
- 		MIn 60.0mm - 2.36in - 19mm (0.75in) - 3.6mm (0.14in) - 512 kgf (1129 lbf) - ST-20PPS-600 - - - - €10,32 0
HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material
HCL | Smart Tie Cable Ties | High Temp | 19mm (3.4in) Wide | PPS Polymer Material
- 		MIn 60.0mm - 2.36in - 19mm (0.75in) - 3.6mm (0.14in) - 512 kgf (1129 lbf) - ST-20PPS-750 - - - - €11,76 0

Description

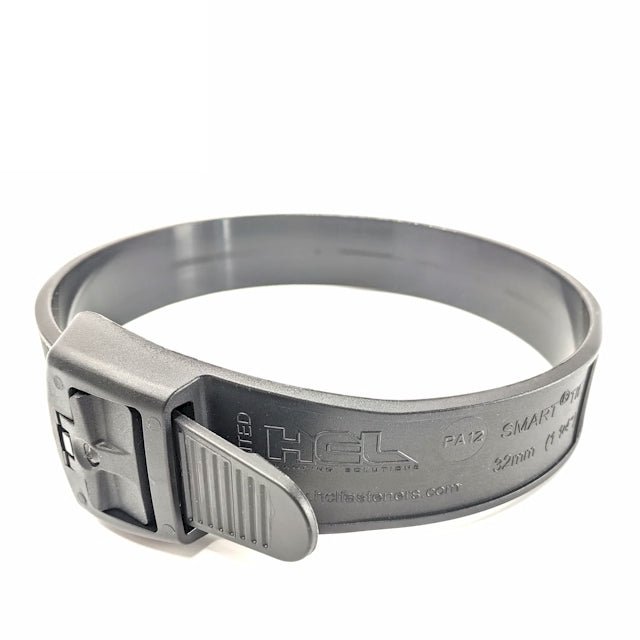

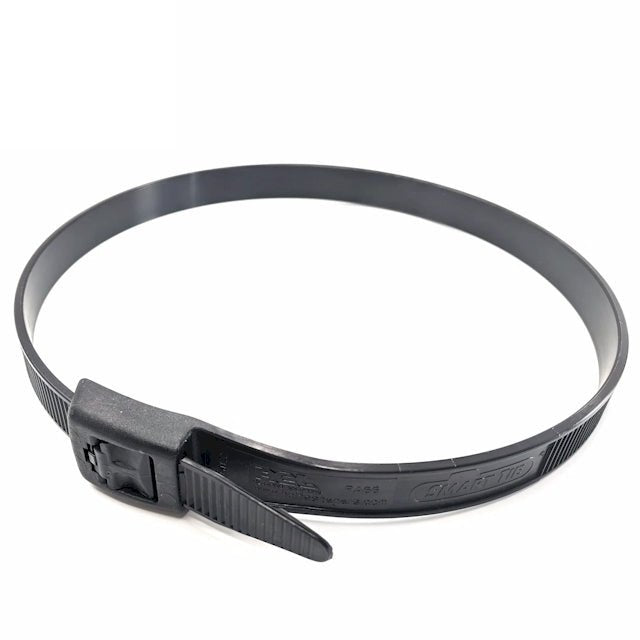

Smart® Tie incorporates the High Strength Tooth Feature of the Smart® Band Hybrid
and Compact and creates the strongest Polymer Cable Tie in the World.

Smart® Tie is a patented heavy duty polymer tie wrap, able to withstand system loads in excess of 1200kgf.* It has the advantage of being manufactured from a range of high temperature polymers, giving it superior chemical and temperature resistance up to 175°C*. Lightweight and very easy to use the Smart® Tie has become the ideal downhole cable tie solution and compatibility with the Smart® Protector provides a complete solution for many downhole applications.

The PPS Material is a premium material offering exception Chemical & temperature resistance properties making it ideal for very aggressive applications, onshore, downhole & offshore.

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N ST-20-PPS
Series HCL Smart Tie
Corrosion Resistance Excellent
Band Material PPS
Max Strength 1129 lbf
Max long Term Operating Temp 175°C (347°F )
Flammability V-0 UL94 Self Extinguishing
Design Life (Outdoor use) 5+ years
Weathering & UV Good
Chemical Resistance Good
Colour Black
Tool Compatibility SM-FT-2000-19 & 32
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Tie PPS Straps | High Temperature Polymer Cable Straps for Extreme Heat

For securing cables and hoses in environments that demand the utmost thermal and chemical resistance, choose Smart Tie PPS Straps. Made from advanced Polyphenylene Sulfide (PPS) polymer, these ties offer a lightweight, non-corrosive solution with superior integrity in extreme heat, far exceeding the performance of standard nylon ties.

Why Choose These PPS High-Temperature Straps?

Extreme Thermal Resistance (PPS Polymer): The core advantage is the Polyphenylene Sulfide (PPS) material, an engineering-grade polymer that provides a high continuous operating temperature and exceptional thermal stability, making it the perfect choice for hot engine compartments and industrial process areas.

Superior Chemical and Flame Resistance: PPS is inherently flame-retardant and highly inert, offering unparalleled resistance to a wide range of harsh chemicals, fuels, oils, and solvents where traditional plastic ties would quickly degrade or melt.

Durable & Reliable Fastening: These straps are designed to maintain high mechanical strength and secure tension on cables, wires, and hoses, ensuring a secure and reliable hold even when subjected to prolonged heat exposure.

Lightweight, Non-Conductive Solution: As a polymer, the Smart Tie PPS strap offers a robust, high-performance fastening solution without the weight or electrical conductivity of metal alternatives.

Quick and Easy Installation: Designed for fast and efficient manual application, simplifying the bundling and routing of cables in demanding industrial settings.

Perfect For:

  • Automotive engine bays (near exhaust manifolds, turbochargers, and hot fluid lines).
  • Industrial ovens, furnaces, and high-temperature processing equipment.
  • Chemical processing and manufacturing facilities with aggressive cleaning agents.
  • Aerospace and defence applications requiring flame and heat resistance.

Don't compromise security in high-heat areas. Order the Smart Tie PPS Straps today and achieve thermal stability in your toughest applications!
