Mikalor | Snap-Fit Hose Clip| With Spring Feature | Colour Coded | W4 304 Stainless Steel

Mikalor | Snap-Fit Hose Clip| With Spring Feature | Colour Coded | W4 304 Stainless Steel

EZY-M-PLUS-8

€0,54
€0,54
Sale Sold out

250 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Colour Code
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

8.5mm - 9.5mm - 0.33in - 0.37in - 3030410 - EZY-M-PLUS-8 - 7.0mm (0.28in) - Yellow - 2D PDF - 2D DXF - 3D STP - €0,54 250
9.5mm - 10.5mm - 0.37in - 0.41in - 3030429 - EZY-M-PLUS-9 - 7.0mm (0.28in) - Violet - 2D PDF - 2D DXF - 3D STP - €0,56 0
10.5mm - 11.5mm - 0.41in - 0.45in - 3030437 - EZY-M-PLUS-10 - 7.0mm (0.28in) - Neutral - 2D PDF - 2D DXF - 3D STP - €0,58 250
11.5mm - 12.5mm - 0.45in - 0.49in - 3030445 - EZY-M-PLUS-11 - 7.0mm (0.28in) - Green - 2D PDF - 2D DXF - 3D STP - €0,62 0
12.5mm - 14.0mm - 0.49in - 0.55in - 3030453 - EZY-M-PLUS-12 - 8.0mm (0.31in) - Black - 2D PDF - 2D DXF - 3D STP - €0,63 500
13.5mm - 15.0mm - 0.53in - 0.59in - 3030461 - EZY-M-PLUS-13 - 8.0mm (0.31in) - Yellow - 2D PDF - 2D DXF - 3D STP - €0,65 500
14.5mm - 16.0mm - 0.57in - 0.63in - 3030470 - EZY-M-PLUS-14 - 8.0mm (0.31in) - Violet - 2D PDF - 2D DXF - 3D STP - €0,67 0
15.5mm - 17.0mm - 0.61in - 0.67in - 3030488 - EZY-M-PLUS-15 - 8.0mm (0.31in) - Neutral - 2D PDF - 2D DXF - 3D STP - €0,69 750
16.5mm - 18.0mm - 0.65in - 0.71in - 3030496 - EZY-M-PLUS-16 - 8.0mm (0.31in) - Green - 2D PDF - 2D DXF - 3D STP - €0,71 250
17.5mm - 19.0mm - 0.69in - 0.75in - 3030509 - EZY-M-PLUS-17 - 8.0mm (0.31in) - Black - 2D PDF - 2D DXF - 3D STP - €0,73 250
19.5mm - 21.0mm - 0.77in - 0.83in - 3030525 - EZY-M-PLUS-19 - 8.0mm (0.31in) - Violet - 2D PDF - 2D DXF - 3D STP - €0,76 250
21.5mm - 23.0mm - 0.85in - 0.91in - 3030541 - EZY-M-PLUS-21 - 8.0mm (0.31in) - Green - 2D PDF - 2D DXF - 3D STP - €0,80 250
22.5mm - 24.0mm - 0.89in - 0.94in - 3030550 - EZY-M-PLUS-22 - 8.0mm (0.31in) - Black - 2D PDF - 2D DXF - 3D STP - €0,82 500
23.5mm - 25.0mm - 0.93in - 0.98in - 3030568 - EZY-M-PLUS-23 - 8.0mm (0.31in) - Yellow - 2D PDF - 2D DXF - 3D STP - €0,84 500
24.5mm - 26.0mm - 0.96in - 1.02in - 3030576 - EZY-M-PLUS-24 - 8.0mm (0.31in) - Violet - 2D PDF - 2D DXF - 3D STP - €0,82 500

Description

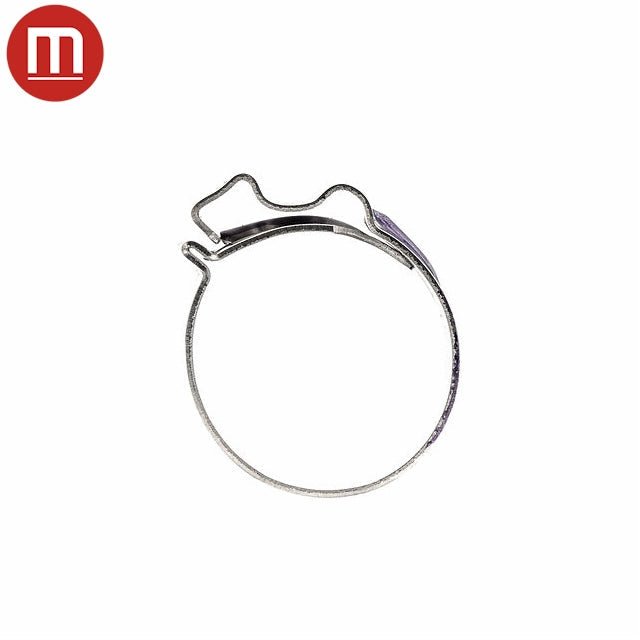

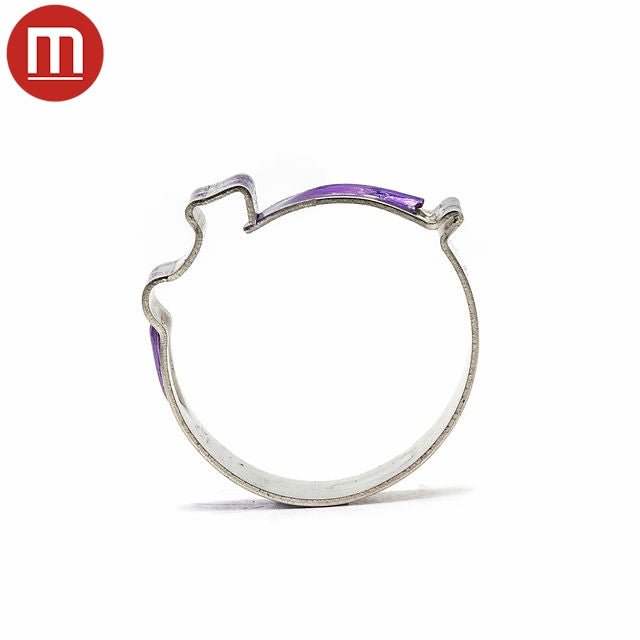

The Clip Clamp is manufactured entirely from one strip of stainless steel. The design of the locking mechanism of the Clip Clamp allows for great precision and safety in assembly. This mechanism, together with the folds in the material confers a spring function to this clamp, meaning that it can maintain constant pressure around the hose despite possible changes in temperature or pressure. The perfectly rounded band edges avoid damage to the hose during application. The corrosion resistance is excellent due to the AISI 304 material employed in its manufacture.

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N EZY-M-PLUS-X
Series Clip Clamp
Corrosion Resistance Very Good
Hose Clamp Width mm/in 7.0mm (0.28in) 8.0mm (0.31in)
Band Material W4 304 Stainless Steel
Colour Silver
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Space-Saving & Self-Adjusting: Mikalor Snap Fit Low Profile Metal Hose Clamp with Spring for Constant Tension - 304 Stainless Steel (8.5-26.0mm | 0.33-1.02 Inches)

Experience rapid, tool-free installation and a consistently secure seal that adapts to temperature changes in space-restricted areas with the Mikalor Snap Fit Low Profile Metal Hose Clamp. Constructed entirely from high-quality 304 stainless steel, this clamp offers excellent corrosion resistance and incorporates a spring for automatic tension adjustment. The unique snap-fit design allows for quick, one-handed installation and removal across a compact size range of 8.5 to 26.0mm (0.33 to 1.02 Inches), while its low profile minimizes protrusion.

Why Choose the Mikalor Snap Fit Low Profile Metal Hose Clamp with Spring for Constant Tension?

  • Ultra-Fast Snap-Fit Installation: Simply push to engage and squeeze to release – no tools required for quick and easy application, even in tight spaces.
  • Low Profile Design: Ideal for applications with limited space or where minimal protrusion is desired.
  • Automatic Constant Tension with Spring: The integrated spring mechanism compensates for hose expansion and contraction due to temperature changes, maintaining optimal sealing pressure.
  • Superior 304 Stainless Steel: Offers excellent corrosion resistance for long-lasting performance in various environments.
  • Compact Size Range: Accommodates hose and tube diameters from 8.5 to 26.0mm (0.33 to 1.02 Inches), perfect for smaller connections.
  • Self-Locking Design: Ensures a secure and reliable hold once engaged.
  • Excellent Corrosion Resistance: The full 304 stainless steel construction provides maximum protection against rust and degradation.
  • Trusted Mikalor Quality: Mikalor is a reputable global manufacturer known for producing high-performance fastening and connecting solutions.

Perfect For:

  • Automotive Vacuum and Small Fluid Lines in Tight Engine Bays
  • Appliance Assembly in Space-Constrained Areas
  • Medical Equipment
  • Low-Profile Cable and Wire Management
  • Applications where quick installation, constant tension, a low profile, and full metal durability are crucial
  • Irrigation Applications

Enjoy Effortless, Self-Adjusting Connections in Tight
Spaces with Full Metal Durability:

The Mikalor Snap Fit Low Profile Metal Hose Clamp offers the ultimate in convenience, consistent sealing, space efficiency, and robust metal construction. Its innovative snap-fit design allows for incredibly fast, tool-free installation, saving valuable time during assembly or maintenance in confined areas. The full 304 stainless steel construction provides exceptional
corrosion resistance and durability, while the integrated spring ensures a consistently tight seal that adapts to temperature fluctuations. The key advantage of this clamp is its low profile, minimizing bulk and potential interference in space-restricted applications, combined with the strength and reliability of stainless steel.

Key Features:

  • Material: Full 304 Stainless Steel
  • Type: Snap Fit (Quick Release), Low Profile Hose Clamp with Constant Tension Spring
  • Size Range: 8.5-26.0mm (0.33-1.02 Inches)
  • Excellent Corrosion Resistance (Full 304 Stainless Steel)
  • Ultra-Fast, Ultra-Fast, Install with Manual Pliers or HCL's High Speed Pneumatic Air Tools
  • Low Profile Design for Space-Restricted Areas
  • Automatic Constant Tension for a Leak-Free Seal
  • Durable Full Metal Construction

For the ultimate in rapid, self-adjusting, space-saving, and durable metal hose and tube connections, choose the Mikalor Snap Fit Low Profile Metal Hose Clamp. Browse our selection and experience the ease and reliability of Mikalor's innovative design today!
