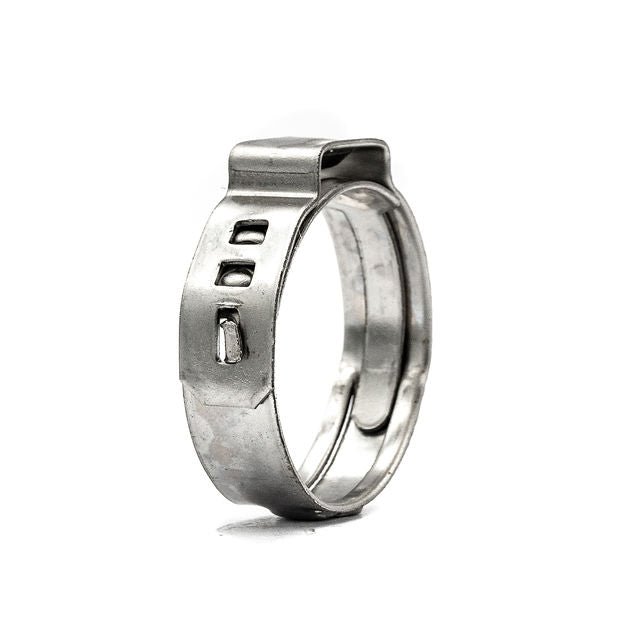

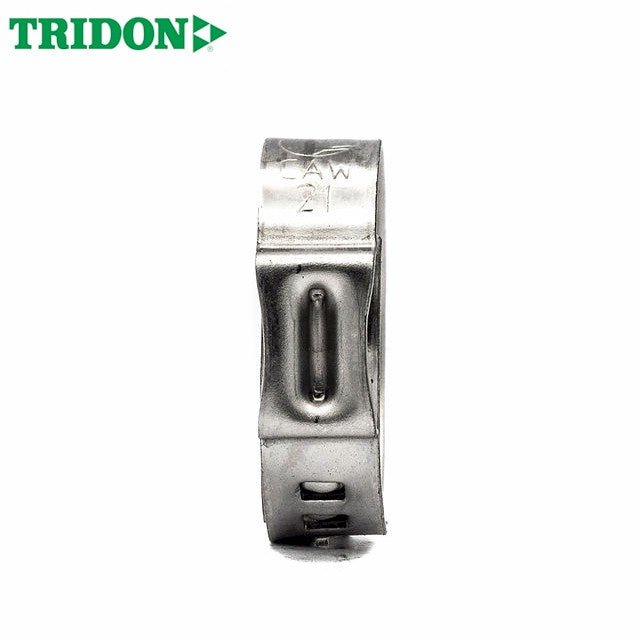

  • Single Ear Hose Clamp - Zero Leak - 9.8-12.3mm - 304SS - HCL Clamping USA- ZLEC-12.3-W4
  • Single Ear Hose Clamp - Zero Leak - 9.8-12.3mm - 304SS - HCL Clamping USA- ZLEC-12.3-W4
  • Single Ear Hose Clamp - Zero Leak - 9.8-12.3mm - 304SS - HCL Clamping USA- ZLEC-12.3-W4
  • Single Ear Hose Clamp - Zero Leak - 9.8-12.3mm - 304SS - HCL Clamping USA- ZLEC-12.3-W4
1 4

Tridon | Zero Leak Ear (Pinch) Hose Clamp | 7mm Wide | W4 304 Stainless Steel

Tridon | Zero Leak Ear (Pinch) Hose Clamp | 7mm Wide | W4 304 Stainless Steel

ZLEC-12.3-W4

€0,60
€0,60
Sale Sold out

500 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Band Thk ?

Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

10.1mm - 11.8mm - 0.40in - 0.46in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-12.3-W4 - No - Very Good - 304SS - - - - €0,60 500
10.3mm - 12.8mm - 0.41in - 0.50in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-12.8-W4 - No - Very Good - 304SS - - - - €0,62 500
10.8mm - 13.3mm - 0.43in - 0.52in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-13.3-W4 - No - Very Good - 304SS - - - - €0,64 500
11.3mm - 13.8mm - 0.44in - 0.54in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-13.8-W4 - No - Very Good - 304SS - - - - €0,66 500
11.5mm - 14.0mm - 0.45in - 0.55in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-14.0-W4 - No - Very Good - 304SS - - - - €0,67 200
11.7mm - 14.2mm - 0.46in - 0.56in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-14.2-W4 - No - Very Good - 304SS - - - - €0,69 500
12.0mm - 14.5mm - 0.47in - 0.57in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-14.5-W4 - No - Very Good - 304SS - - - - €0,71 200
12.3mm - 14.8mm - 0.48in - 0.58in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-14.8-W4 - No - Very Good - 304SS - - - - €0,72 500
12.8mm - 15.3mm - 0.50in - 0.60in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-15.3-W4 - No - Very Good - 304SS - - - - €0,74 100
13.2mm - 15.7mm - 0.52in - 0.62in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-15.7-W4 - No - Very Good - 304SS - - - - €0,76 400
13.5mm - 16.0mm - 0.53in - 0.63in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-16.0-W4 - No - Very Good - 304SS - - - - €0,78 500
14.3mm - 16.8mm - 0.56in - 0.66in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-16.8-W4 - No - Very Good - 304SS - - - - €0,79 500
14.5mm - 17.0mm - 0.57in - 0.67in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-17.0-W4 - No - Very Good - 304SS - - - - €0,81 0
15.0mm - 17.5mm - 0.59in - 0.69in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-17.5-W4 - No - Very Good - 304SS - - - - €0,83 500
14.8mm - 18.0mm - 0.58in - 0.71in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-18.0-W4 - No - Very Good - 304SS - - - - €0,84 500
15.3mm - 18.5mm - 0.60in - 0.73in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-18.5-W4 - No - Very Good - 304SS - - - - €0,86 500
16.0mm - 19.2mm - 0.63in - 0.76in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-19.2-W4 - No - Very Good - 304SS - - - - €0,88 250
17.8mm - 21.0mm - 0.70in - 0.83in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-21.0-W4 - No - Very Good - 304SS - - - - €0,90 500
20.9mm - 24.1mm - 0.82in - 0.95in - 7.0mm (0.25in) - 1/32in (0.6mm) - ZLEC-24.1-W4 - No - Very Good - 304SS - - - - €1,12 0

Description

Tridon's 7.0mm wide Zero Leak Ear clamp (O-Clip) is ideal for rubber and PVC hoses. The steel hose clamp forms a complete circle, removing the possibility of leakage. It is quick and easy to assemble, has a low profile design and is manufactured from corrosion resistant Stainless Steel 304 or W4. The Zero leak metal hose clip is also known sometimes as a low profile hose clamp.

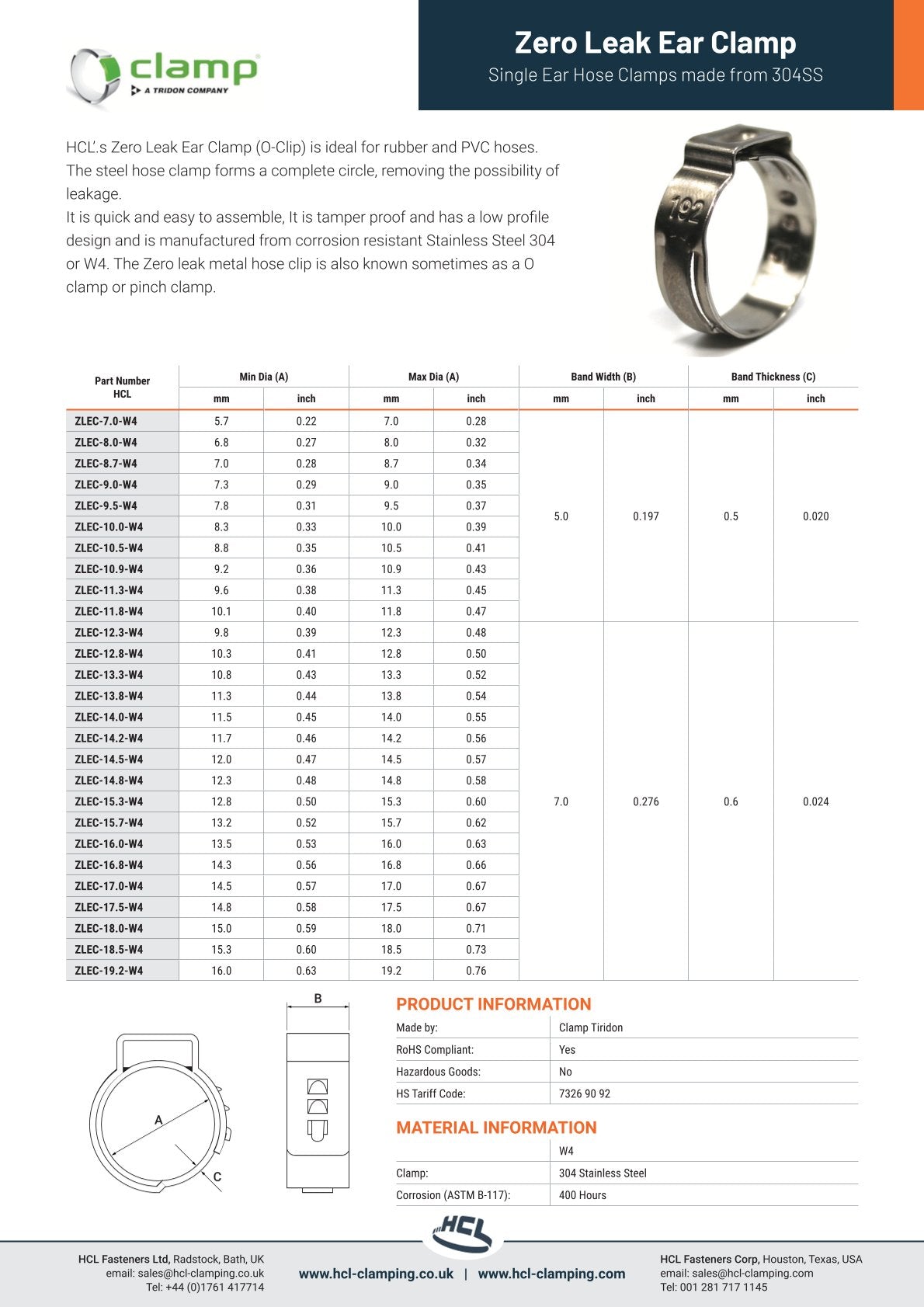

Product Specification Sheet

Download

Specification

Manufactured By Tridon
HCL P/N ZLEC-X-W4
Series Zero Leak
Corrosion Resistance Very Good
Hose Clamp Width mm/in 6.5mm (0.26in)
Band Material W4 304 Stainless Steel
Finish Stainless Steel
Colour Silver
Country of Manufacture Poland
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Eliminate Leaks with Tridon Zero Leak 7.0mm (0.25 inch) wide Ear Pinch O-Clamps (304 Stainless Steel) - Unmatched Sealing Performance!

Stop leaks and ensure reliable, high-pressure hose
connections with genuine Tridon Zero Leak Ear Pinch O-Clamps, crafted from premium 304 Stainless Steel. Engineered for superior sealing and corrosion
resistance, these clamps deliver a uniform, 360° grip for demanding applications.

Why Choose Tridon Zero Leak Ear Pinch O-Clamps?

  • True Zero Leak Design: Specifically engineered to provide a tight,
    leak-free seal, preventing fluid or gas escape even under high pressure.
  • Premium 304 Stainless Steel Construction: Built to withstand harsh environments, these clamps offer exceptional resistance to rust, corrosion, and chemicals, guaranteeing long-lasting performance.
  • Ear Pinch O-Clamp Design for Consistent Grip: Provides a secure, 360-degree radial compression, eliminating leak paths and ensuring a uniform, reliable grip.
  • Enhanced Sealing for Critical Applications: Designed for applications requiring high sealing integrity, such as automotive, industrial, and marine systems.
  • Easy and Efficient Installation: Simple installation with standard ear/pinch tools, allowing for quick and secure hose connections.
  • Durable and Reliable Under Pressure: Built to withstand vibration, pressure, and temperature fluctuations, ensuring consistent performance in demanding conditions.
  • Comprehensive Size Range for Versatility: Available in a wide range of sizes to accommodate various hose diameters and applications.

Perfect For:

  • Automotive Fuel and Coolant Lines
  • Industrial Fluid and Air Handling Systems
  • Marine Applications (Saltwater Resistant)
  • Hydraulic and Pneumatic Systems
  • Critical Hose Connections Requiring Zero Leaks

Invest in Quality. Invest in Tridon Zero Leak Ear Pinch
O-Clamps. Experience the peace of mind that comes with truly reliable, leak-free hose connections. Browse our extensive selection of sizes and order yours today!
