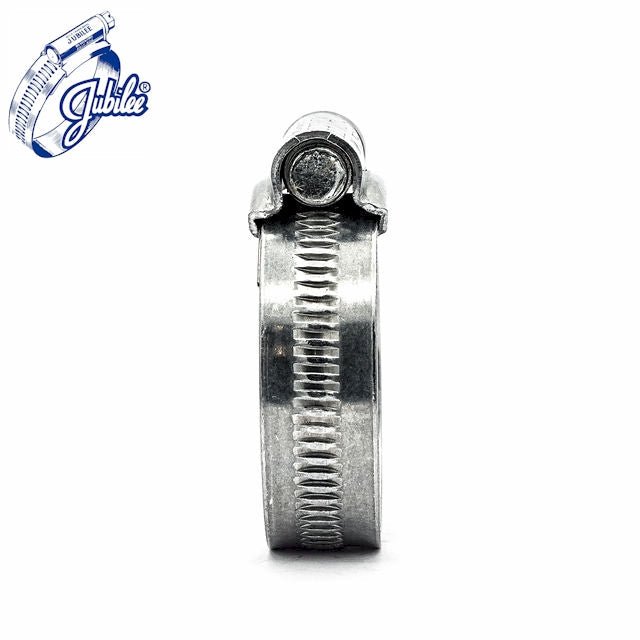

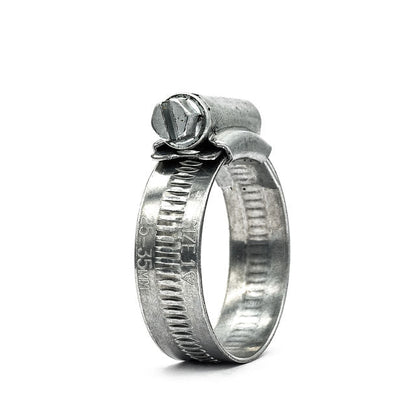

  • Jubilee Original Hose Clip - 9.5-12mm - Zinc Plated Steel - HCL Clamping USA- WD-JUB-000
  • Jubilee Original Hose Clip - 9.5-12mm - Zinc Plated Steel - HCL Clamping USA- WD-JUB-000
  • Jubilee Original Hose Clip - 70-90mm - Zinc Plated Steel - HCL Clamping USA- WD-JUB-4

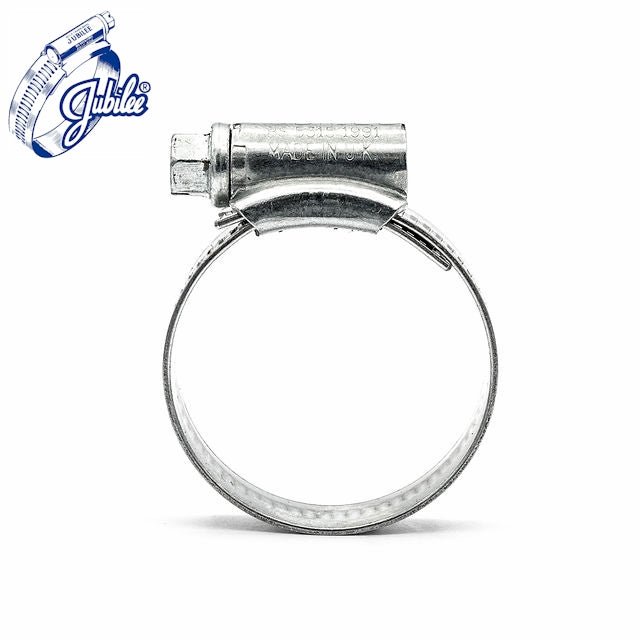

  • Jubilee Original Hose Clip - 85-100mm - Zinc Plated Steel - HCL Clamping USA- WD-JUB-4X

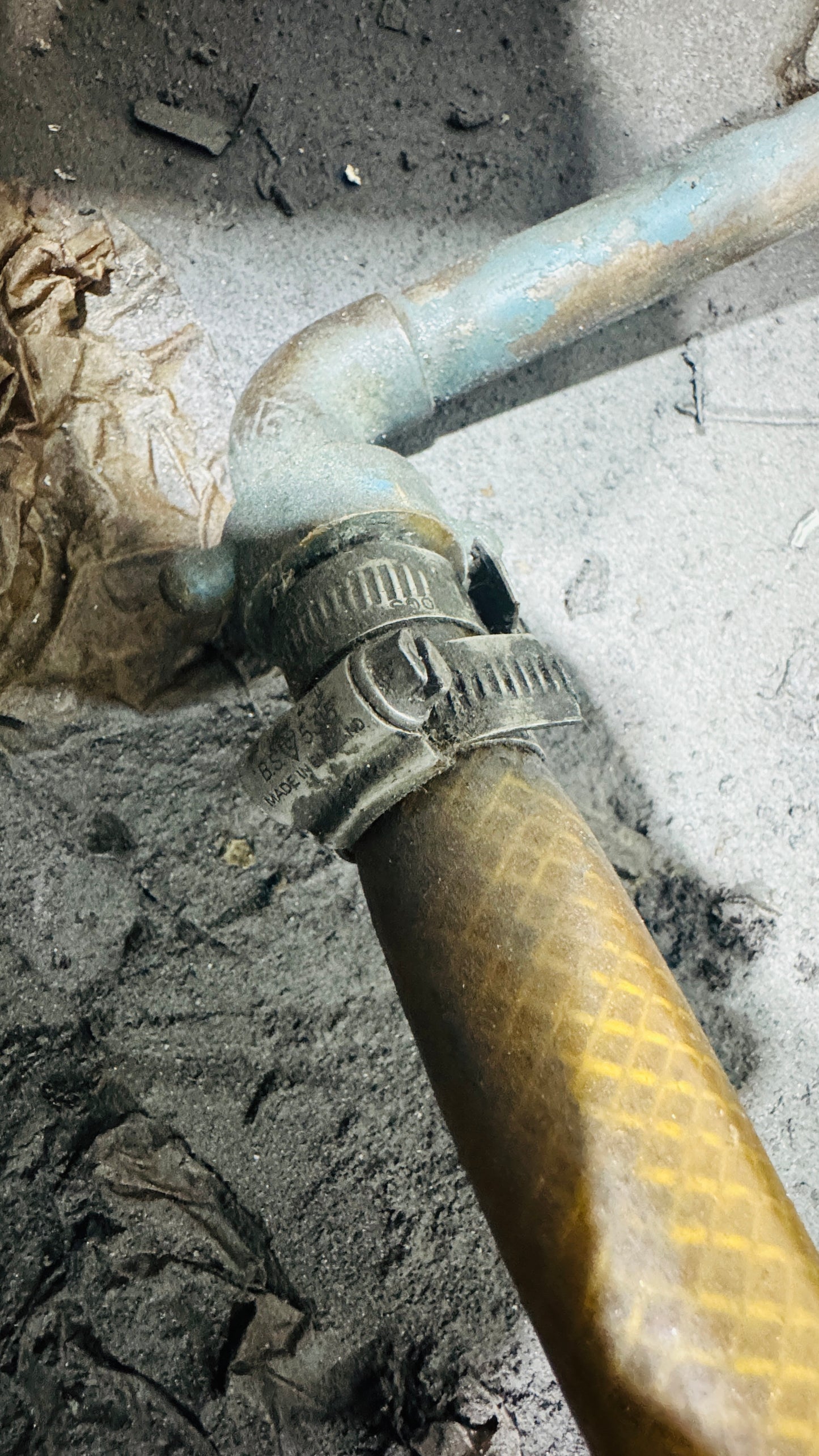

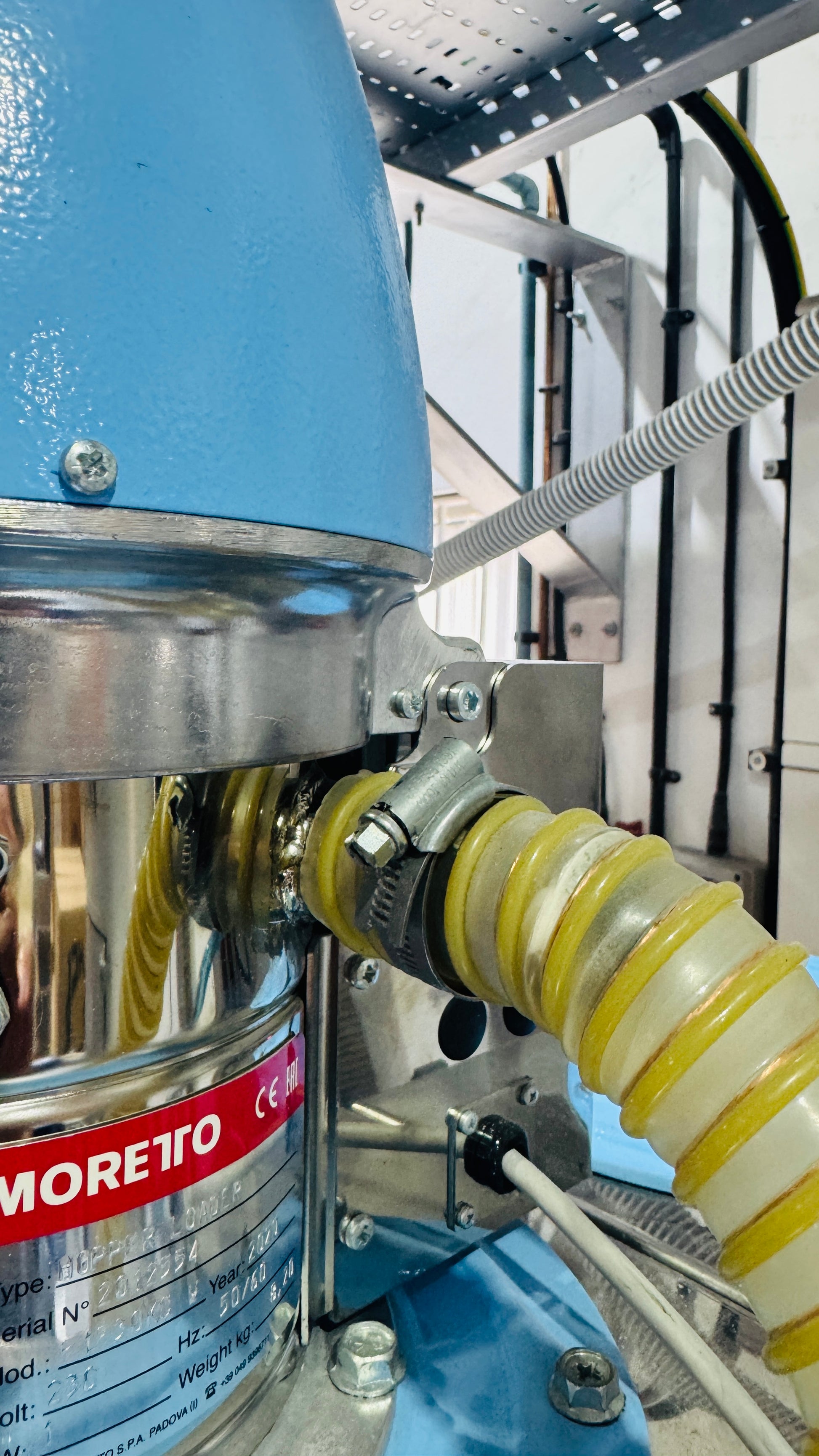

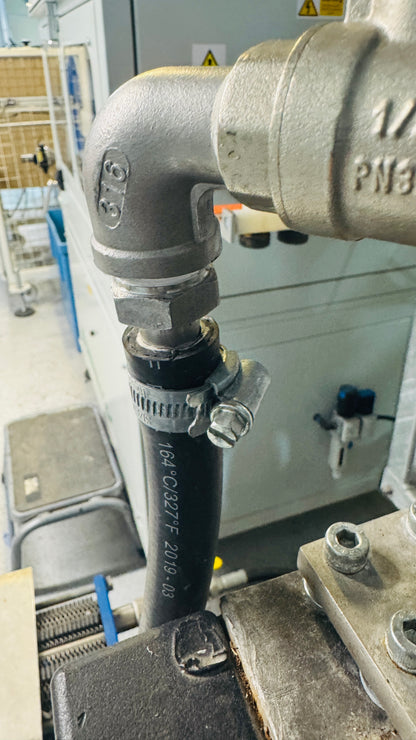

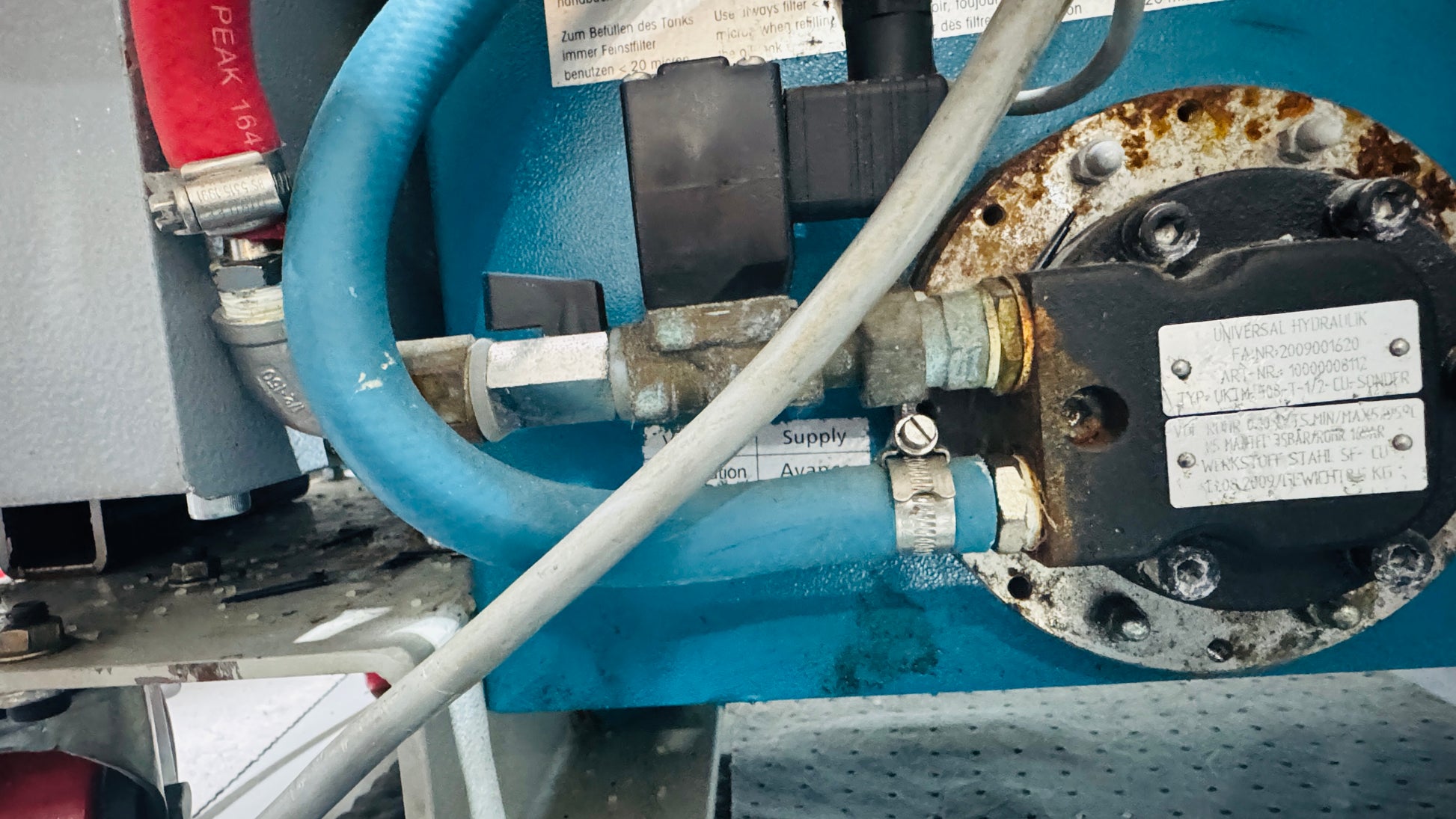

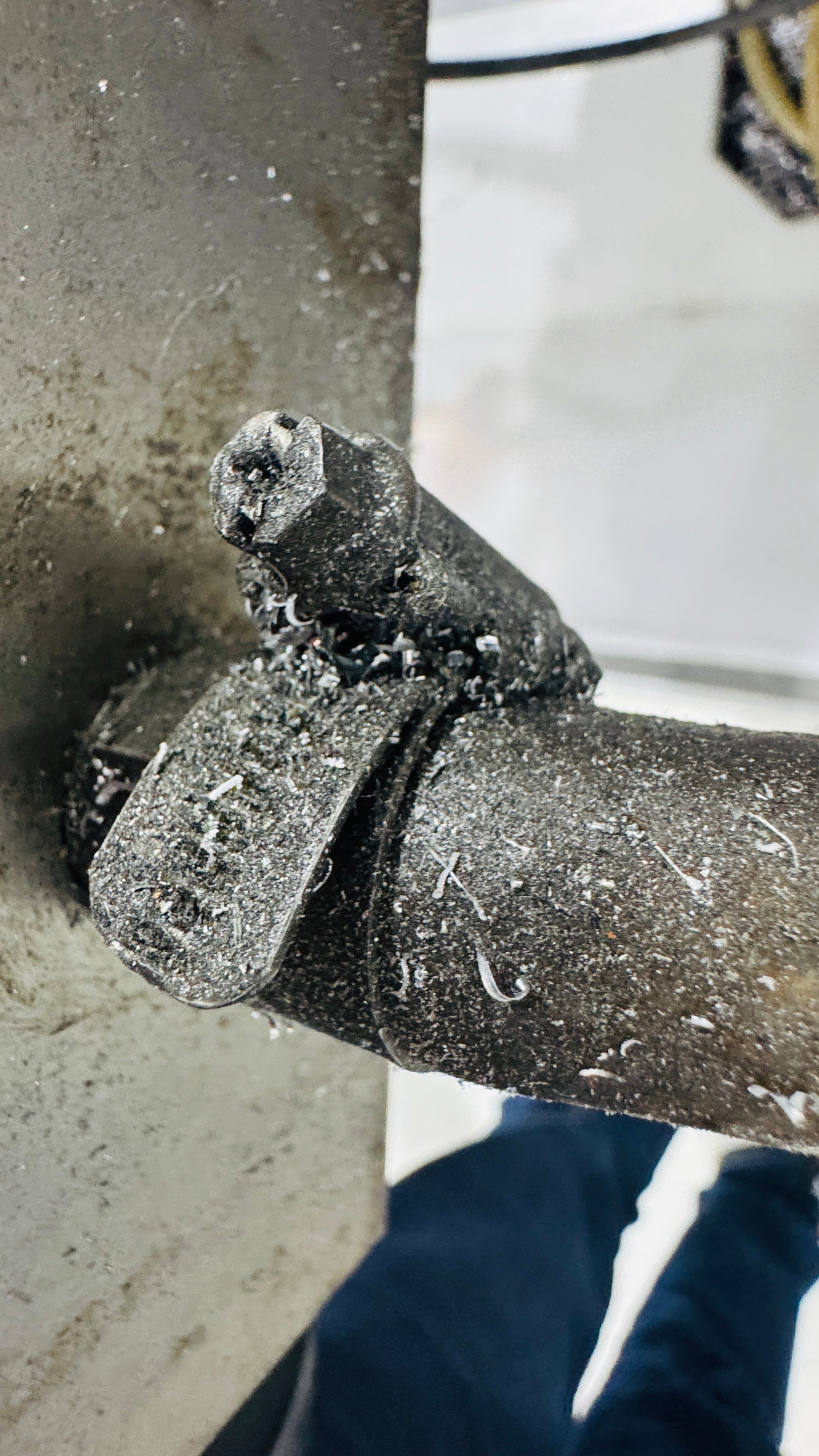

  • Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel 9.5mm - 12.0mm (0.37-0.47in) - HCL Fasteners EU - Image 5
  • Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel 9.5mm - 12.0mm (0.37-0.47in) - HCL Fasteners EU - Image 6
  • Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel 9.5mm - 12.0mm (0.37-0.47in) - HCL Fasteners EU - Image 7
  • Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel 9.5mm - 12.0mm (0.37-0.47in) - HCL Fasteners EU - Image 8
  • Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel 9.5mm - 12.0mm (0.37-0.47in) - HCL Fasteners EU - Image 9
1 9

Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel

Jubilee | The Original Worm Drive Hose Clip | BSi Standard | Kite Marked | W1 Zinc Plated Steel

WD-JUB-M00

€0,92
€0,92
Sale Sold out

200 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Rec Torque ?

Rec Torque: The suggested torque setting to correctly install the clamp for best performance and seal.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

9.5mm - 12.0mm - 0.37in - 0.47in - 9.9mm (0.39in) - WD-JUB-000 - 000MS - Good - 3.4 Nm - 4.5 Nm - 203 PSI - €0,80 0
11.0mm - 16.0mm - 0.43in - 0.63in - 9.9mm (0.39in) - WD-JUB-M00 - M00MS - Good - 3.4 Nm - 4.5 Nm - 203 PSI - €0,92 200
13.0mm - 20.0mm - 0.51in - 0.79in - 9.9mm (0.39in) - WD-JUB-00 - 00MS - Good - 3.4 Nm - 4.5 Nm - 203 PSI - €0,96 500
16.2mm - 22.2mm - 0.64in - 0.87in - 13.0mm (0.51in) - WD-JUB-0 - 0MS - Good - 4.2 Nm - 5.6 Nm - 203 PSI - €1,03 500
18.0mm - 25.0mm - 0.71in - 0.98in - 13.0mm (0.51in) - WD-JUB-0X - 0XMS - Good - 4.2 Nm - 5.6 Nm - 203 PSI - €1,07 500
22.0mm - 30.0mm - 0.87in - 1.18in - 13.0mm (0.51in) - WD-JUB-1A - 1AMS - Good - 5.1 Nm - 6.8 Nm - 203 PSI - €1,13 200
25.0mm - 35.0mm - 0.98in - 1.38in - 13.0mm (0.51in) - WD-JUB-1 - 1MS - Good - 5.1 Nm - 6.8 Nm - 102 PSi - €1,19 200
30.0mm - 40.0mm - 1.18in - 1.57in - 13.0mm (0.51in) - WD-JUB-1X - 1XMS - Good - 5.1 Nm - 6.8 Nm - 102 PSi - €1,23 200
32.0mm - 45.0mm - 1.26in - 1.77in - 13.0mm (0.51in) - WD-JUB-1M - 1MMS - Good - 5.1 Nm - 6.8 Nm - 102 PSi - €1,25 100
35.0mm - 50.0mm - 1.38in - 1.97in - 13.0mm (0.51in) - WD-JUB-2A - 2AMS - Good - 5.9 Nm - 7.9 Nm - 102 PSi - €1,29 50
40.0mm - 55.0mm - 1.57in - 2.17in - 13.0mm (0.51in) - WD-JUB-2 - 2MS - Good - 5.9 Nm - 7.9 Nm - 102 PSi - €1,33 0
45.0mm - 60.0mm - 1.77in - 2.36in - 13.0mm (0.51in) - WD-JUB-2X - 2XMS - Good - 5.9 Nm - 7.9 Nm - 102 PSi - €1,40 100
55.0mm - 70.0mm - 2.17in - 2.76in - 13.0mm (0.51in) - WD-JUB-3 - 3MS - Good - 6.7 Nm - 9 Nm - 102 PSi - €1,54 100
60.0mm - 80.0mm - 2.36in - 3.15in - 13.0mm (0.51in) - WD-JUB-3X - 3XMS - Good - 6.7 Nm - 9 Nm - 44 PSi - €1,66 80
70.0mm - 90.0mm - 2.76in - 3.54in - 13.0mm (0.51in) - WD-JUB-4 - 4MS - Good - 6.7 Nm - 9 Nm - 44 PSi - €1,77 50
85.0mm - 100.0mm - 3.35in - 3.94in - 13.0mm (0.51in) - WD-JUB-4X - 4XMS - Good - 6.7 Nm - 9 Nm - 44 PSi - €1,97 50
90.0mm - 120.0mm - 3.54in - 4.72in - 13.0mm (0.51in) - WD-JUB-5 - 5MS - Good - 6.7 Nm - 9 Nm - 44 PSi - €2,20 20
110.0mm - 140.0mm - 4.33in - 5.51in - 13.0mm (0.51in) - WD-JUB-6 - 6MS - Good - 6.7 Nm - 9 Nm - 44 PSi - €2,44 50
120.0mm - 150.0mm - 4.72in - 5.91in - 13.0mm (0.51in) - WD-JUB-6X - 6XMS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €2,61 25
135.0mm - 165.0mm - 5.31in - 6.50in - 13.0mm (0.51in) - WD-JUB-7 - 7MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €2,77 20
158.0mm - 190.0mm - 6.22in - 7.48in - 13.0mm (0.51in) - WD-JUB-7.5 - 7.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €3,35 20
184.0mm - 216.0mm - 7.24in - 8.50in - 13.0mm (0.51in) - WD-JUB-8.5 - 8.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €3,68 25
210.0mm - 242.0mm - 8.27in - 9.53in - 13.0mm (0.51in) - WD-JUB-9.5 - 9.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €4,03 15
235.0mm - 267.0mm - 9.25in - 10.51in - 13.0mm (0.51in) - WD-JUB-10.5 - 10.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €4,35 20
260.0mm - 292.0mm - 10.24in - 11.50in - 13.0mm (0.51in) - WD-JUB-11.5 - 11.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €4,74 40
286.0mm - 318.0mm - 11.26in - 12.52in - 13.0mm (0.51in) - WD-JUB-12.5 - 12.5MS - Good - 5.9 Nm - 7.9 Nm - 18 PSi - €5,05 15

Description

The original Jubilee© Clip, the product that started it all! For the vast majority of applications this sturdy worm drive hose clip is more than suitable. Available as a mild steel zinc protected clamp; this product offers good corrosion protection and also has a band that is continuously threaded enabling extra flexibility when adjusting the clip to the correct size. The smooth inside profile of the band and rolled edges give protection for all types of hoses including soft hoses made from rubber or silicone. All our original Jubilee© Clips are independently tested by the British Standards Institute (BSi) and carry the British Standard Kitemark, which is universally regarded as the most stringent standard there is for a hose clamp

Product Specification Sheet

Download

Specification

Manufactured By Jubilee Clips
HCL P/N WD-JUB-X
Series Jubilee Original W1
Corrosion Resistance Good
Corrosion Specification 240 Hours Salt Spray (NSS Test)
Hose Clamp Width mm/in 9.0mm (0.35in)13.0mm (0.51in)
Band Style Embossed Band
Band Material W1 Zinc Plated Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W1 Zinc Plated Steel
Bolt/Screw Size 7.0mm (0.28in) A/F
Finish Galvanised Steel
Colour Silver
Specification 1 Kitemarked to BS 5315:1991
Country of Manufacture United Kingdom
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Jubilee Clip 9mm Worm Gear Hose Clamp: Extra-Wide Range, Durable Galvanized Construction (9.5mm-318mm)

Achieve unmatched versatility and reliable fastening with the Jubilee Clip Worm Gear Hose Clamp. Featuring a robust galvanized steel band and screw, this clamp is designed for exceptional durability and corrosion resistance, coupled with an incredibly wide clamping range to handle a multitude of applications.

Why Choose Jubilee Clip 9mm Galvanized Worm Gear Hose Clamps?

  • Unparalleled Clamping Range: With an extraordinary adjustment range of 9.5mm to 318mm (0.37 to 12.51 inches), this clamp eliminates the need for numerous clamp sizes, providing ultimate flexibility.
  • Durable Galvanized Construction: Both the band and screw are crafted from high-quality galvanized steel, offering excellent corrosion protection and long-lasting performance in various environments.
  • Trusted Jubilee Quality: Rely on the renowned quality and reliability of Jubilee Clips, a pioneer in clamping solutions, for consistent and dependable performance.
  • 9mm Band Strength: The 9mm band width provides a balance of strength and flexibility, suitable for a wide array of clamping tasks, from small to large diameters.
  • Cost-Effective Solution: Galvanized steel offers a practical and economical solution for general-purpose clamping needs.

Key Features:

  • Material: Galvanized Steel (Band & Screw)
  • Size: 9.5mm / 13mm Worm Gear Hose Clamp
  • Clamping Range: 9.5mm - 318mm (0.37in - 12.51in)
  • Extra-Wide Adjustment Range
  • Durable Galvanized Construction
  • Jubilee Clip Reliability

Ideal Applications:

  • Large Diameter Automotive Hoses
  • Industrial Ducting and Piping
  • Plumbing and HVAC Systems
  • Agricultural Equipment
  • General Large-Scale Fastening
  • Versatile general purpose clamping.

Experience the unmatched versatility and reliability of the Jubilee Clip 9mm Worm Gear Hose Clamp. The extra-wide clamping range and durable galvanized construction make it an essential tool for a multitude of applications. Order your Jubilee Clips today for dependable performance and exceptional value.
