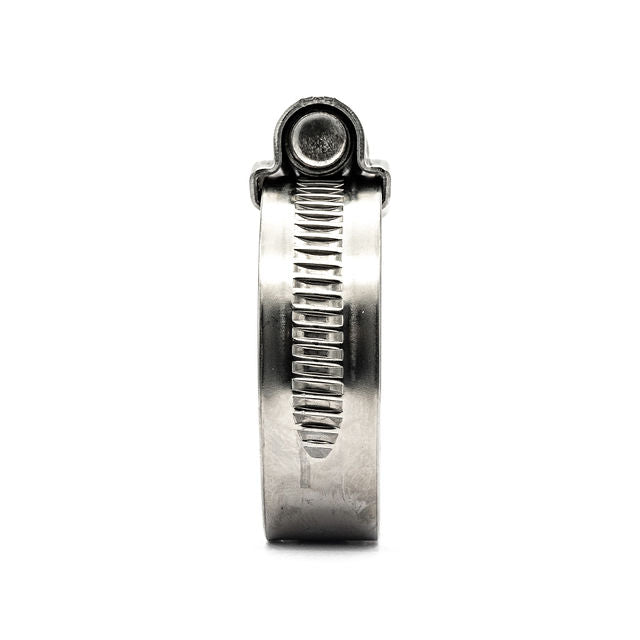

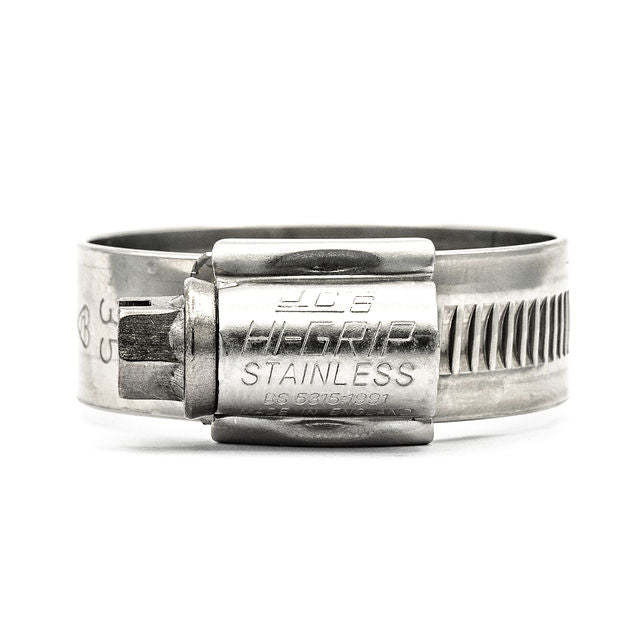

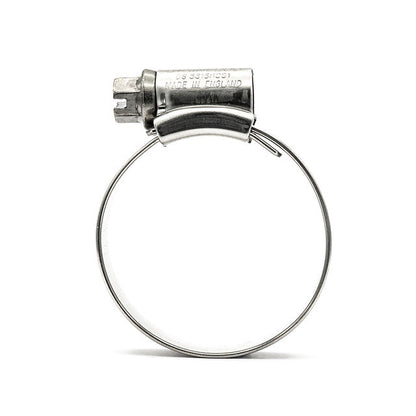

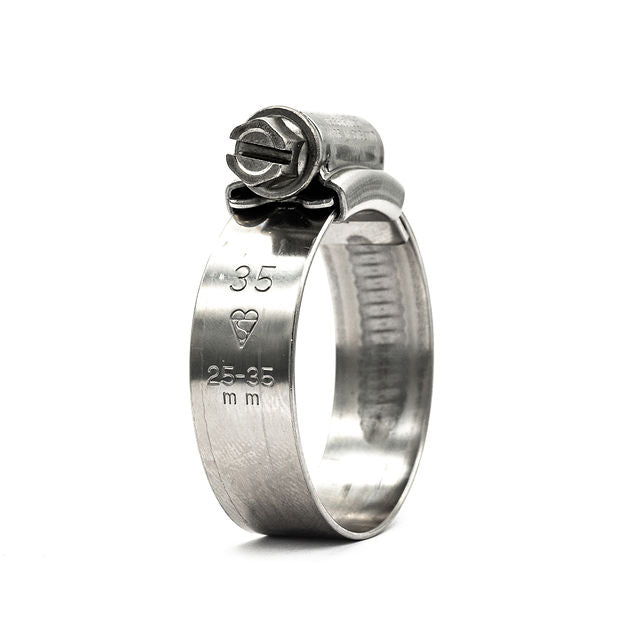

JCS| Hi-Grip Worm Drive Hose Clip | BSi Standard | Kite Marked | W4 304 Stainless Steel

JCS| Hi-Grip Worm Drive Hose Clip | BSi Standard | Kite Marked | W4 304 Stainless Steel

WD-JCS-HG-12-W4

€2,15
€2,15
Sale Sold out
Shipping calculated at checkout.

50 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

9.5mm - 12.0mm - 0.37in - 0.47in - 9.0mm (0.35in) - WD-JCS-HG-12-W4 - HGS12BP - Very Good - €2,15 50
11.0mm - 16.0mm - 0.43in - 0.63in - 9.0mm (0.35in) - WD-JCS-HG-16-W4 - HGS16BP - Very Good - €2,25 100
13.0mm - 20.0mm - 0.51in - 0.79in - 9.0mm (0.35in) - WD-JCS-HG-20-W4 - HGS20BP - Very Good - €2,35 25
14.0mm - 22.0mm - 0.55-0.87in - 13.0mm (0.51in) - WD-JCS-HG-22-W4 - HGS22BP - Very Good - €2,49 100
17.0mm - 25.0mm - 0.67-0.98in - 13.0mm (0.51in) - WD-JCS-HG-25-W4 - HGS25BP - Very Good - €2,53 200
22.0mm - 30.0mm - 0.87in - 1.18in - 13.0mm (0.51in) - WD-JCS-HG-30-W4 - HGS30BP - Very Good - €2,62 50
25.0mm - 35.0mm - 0.98in - 1.38in - 13.0mm (0.51in) - WD-JCS-HG-35-W4 - HGS35BP - Very Good - €2,71 100
30.0mm - 40.0mm - 1.18in - 1.57in - 13.0mm (0.51in) - WD-JCS-HG-40-W4 - HGS40BP - Very Good - €2,80 25
35.0mm - 45.0mm - 1.38-1.77in - 13.0mm (0.51in) - WD-JCS-HG-45-W4 - HGS45BP - Very Good - €2,91 100
35.0mm - 50.0mm - 1.38in - 1.97in - 13.0mm (0.51in) - WD-JCS-HG-50-W4 - HGS50BP - Very Good - €3,15 100
40.0mm - 55.0mm - 1.57in - 2.17in - 13.0mm (0.51in) - WD-JCS-HG-55-W4 - HGS55BP - Very Good - €3,26 0
45.0mm - 60.0mm - 1.77in - 2.36in - 13.0mm (0.51in) - WD-JCS-HG-60-W4 - HGS60BP - Very Good - €3,41 40
50.0mm - 70.0mm - 1.97-2.76in - 13.0mm (0.51in) - WD-JCS-HG-70-W4 - HGS70BP - Very Good - €3,72 20
60.0mm - 80.0mm - 2.36in - 3.15in - 13.0mm (0.51in) - WD-JCS-HG-80-W4 - HGS80BP - Very Good - €3,94 75
70.0mm - 90.0mm - 2.76in - 3.54in - 13.0mm (0.51in) - WD-JCS-HG-90-W4 - HGS90BP - Very Good - €4,19 25
80.0mm - 100.0mm - 3.15-3.94in - 13.0mm (0.51in) - WD-JCS-HG-100-W4 - HGS100BP - Very Good - €4,44 50
90.0mm - 120.0mm - 3.54in - 4.72in - 13.0mm (0.51in) - WD-JCS-HG-120-W4 - HGS120BP - Very Good - €4,96 20
110.0mm - 140.0mm - 4.33in - 5.51in - 13.0mm (0.51in) - WD-JCS-HG-140-W4 - HGS140BP - Very Good - €5,46 0
130.0mm - 160.0mm - 5.12-6.30in - 13.0mm (0.51in) - WD-JCS-HG-160-W4 - HGS160BP - Very Good - €6,00 0
150.0mm - 180.0mm - 5.91-7.01in - 13.0mm (0.51in) - WD-JCS-HG-180-W4 - HGS180BP - Very Good - €6,51 75
170.0mm - 200.0mm - 6.69-7.87in - 13.0mm (0.51in) - WD-JCS-HG-200-W4 - HGS200BP - Very Good - €7,03 0
190.0mm - 220.0mm - 7.48-8.66in - 13.0mm (0.51in) - WD-JCS-HG-220-W4 - HGS220BP - Very Good - €7,54 40
210.0mm - 240.0mm - 8.27-9.45in - 13.0mm (0.51in) - WD-JCS-HG-240-W4 - HGS240BP - Very Good - €8,05 0

Description

JCS Hi-Grip general purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, have BSI Kitemark and NATO approval, and exceeds all operational requirements of the relevant DIN and SAE standards.

304 STAINLESS STEEL (A2) hose clips have become the industry standard for demanding applications throughout the world due to their Made entirely from 18/8 marine ideal for salt water and other corrosive environments.

Product Specification Sheet

Download

Specification

Manufactured By JCS
HCL P/N WD-JCS-HG-X-W4
Series JCS Hi-Grip W4
Corrosion Resistance Very Good
Hose Clamp Width mm/in 13.0mm (0.51in)9.0mm (0.35in)
Band Style Embossed Band
Band Material W4 304 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W4 304 Stainless Steel
Bolt/Screw Size 7.0mm (0.28in) A/F
Finish Stainless Steel
Colour Silver
Specification 1 Kitemarked to BS 5315:1991
Country of Manufacture United Kingdom
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes
