  • Mikalor Spring Clip W1 Zinc Plated Dia 8mm - HCL Clamping USA- MIK-SPCL-W1-8
  • Mikalor Spring Clip W1 Zinc Plated Dia 10mm - HCL Clamping USA- MIK-SPCL-W1-10
  • Mikalor Spring Clip W1 Zinc Plated Dia 8mm - HCL Clamping USA- MIK-SPCL-W1-8
  • Mikalor Spring Clip W1 Zinc Plated Dia 12mm - HCL Clamping USA- MIK-SPCL-W1-12
1 4

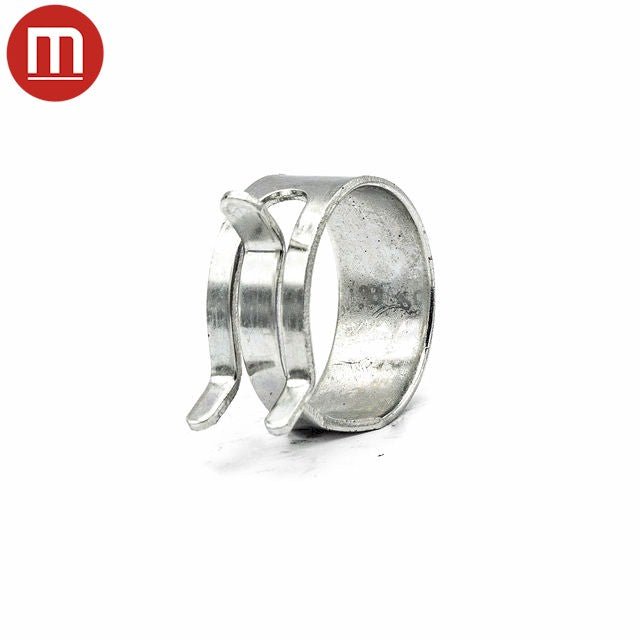

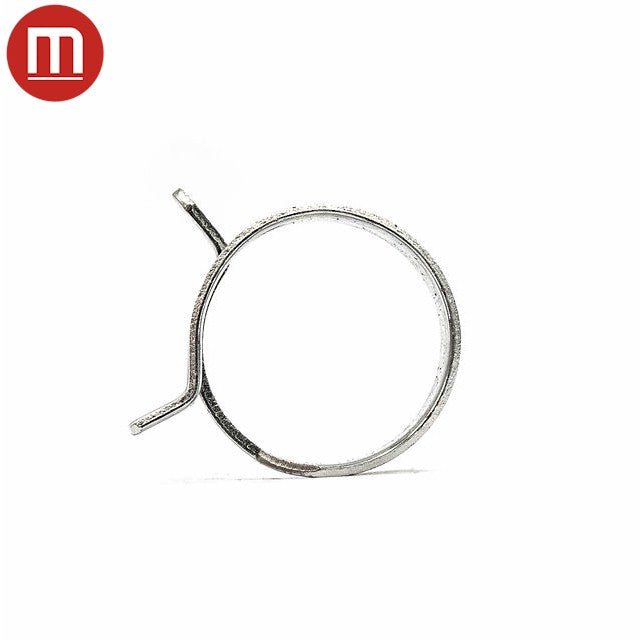

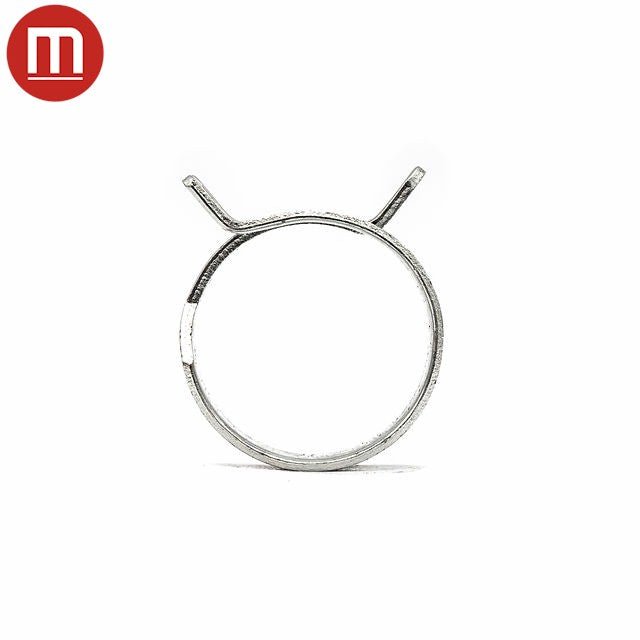

Mikalor | Spring Band Hose Clamp | Light Duty | Silver | W1 Zinc Plated Steel

Mikalor | Spring Band Hose Clamp | Light Duty | Silver | W1 Zinc Plated Steel

MIK-SPCL-W1-6

€0,15
€0,15
Sale Sold out

1000 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5.5mm - 6.0mm - 0.22in - 0.24in - 7.0mm (0.28in) - MIK-SPCL-W1-6 - 02014025 - Yes - 2D PDF - 2D DXF - 3D STP - €0,15 1000
6.4mm - 7.0mm - 0.25in - 0.28in - 7.0mm (0.28in) - MIK-SPCL-W1-7 - 02014033 - Yes - 2D PDF - 2D DXF - 3D STP - €0,13 1000
7.4mm - 8.0mm - 0.29in - 0.31in - 8.0mm (0.31in) - MIK-SPCL-W1-8 - 02014041 - Yes - 2D PDF - 2D DXF - 3D STP - €0,13 1000
8.4mm - 9.0mm - 0.33in - 0.35in - 8.0mm (0.31in) - MIK-SPCL-W1-9 - 02014050 - Yes - 2D PDF - 2D DXF - 3D STP - €0,12 1500
9.3mm - 10.0mm - 0.37in - 0.39in - 8.0mm (0.31in) - MIK-SPCL-W1-10 - 02014068 - Yes - 2D PDF - 2D DXF - 3D STP - €0,14 1000
10.3mm - 11.0mm - 0.41in - 0.43in - 8.0mm (0.31in) - MIK-SPCL-W1-11 - 02014076 - Yes - 2D PDF - 2D DXF - 3D STP - €0,15 500
11.1mm - 12.0mm - 0.44in - 0.47in - 8.0mm (0.31in) - MIK-SPCL-W1-12 - 02014084 - Yes - 2D PDF - 2D DXF - 3D STP - €0,15 500
12.9mm - 14.0mm - 0.51in - 0.55in - 8.0mm (0.31in) - MIK-SPCL-W1-14 - 02014092 - Yes - 2D PDF - 2D DXF - 3D STP - €0,18 500
13.5mm - 15.0mm - 0.53in - 0.59in - 8.0mm (0.31in) - MIK-SPCL-W1-15 - 02014105 - Yes - 2D PDF - 2D DXF - 3D STP - €0,20 2000
15.3mm - 17.0mm - 0.60in - 0.67in - 8.0mm (0.31in) - MIK-SPCL-W1-17 - 02014113 - Yes - 2D PDF - 2D DXF - 3D STP - €0,22 1500
18.0mm - 20.0mm - 0.71in - 0.79in - 8.0mm (0.31in) - MIK-SPCL-W1-20 - 02014121 - Yes - 2D PDF - 2D DXF - 3D STP - €0,27 2000

Description

Spring clips are designed to distribute pressure uniformly around the application zone, thanks to the material used in their manufacture.

Their use is recommended when the hose is subject to rapid changes in temperature which can cause expansion and contraction of the materials used in the assembly.

These clips are quick and easy to assemble and can even be mounted manually in some cases, without the need for tools.

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N MIK-SPCL-W1-X
Series Mikalor Spring Clip
Corrosion Resistance Fair
Corrosion Specification 144 Hrs Salt Spray Protection ASTM B-117
Hose Clamp Width mm/in 7.0mm (0.28in) 8.0mm (0.31in)
Band Material W1 Zinc Plated Steel
Colour Silver
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Reliable & Cost-Effective: Mikalor Light Duty Spring Band Steel Hose Clamp / Clip - Silver (5.5-21.5mm | 0.22-0.84 Inches)

Ensure a reliable and cost-effective seal for light-duty applications with the Mikalor Light Duty Spring Band Steel Hose Clamp / Clip. Constructed with a durable steel band and a spring mechanism, this clamp automatically adjusts to maintain consistent pressure despite minor hose expansion and contraction. Featuring a silver finish, it provides a secure connection across a compact size range of 5.5 to 21.5mm (0.22 to 0.84 Inches).

Why Choose the Mikalor Light Duty Spring Band Steel Hose Clamp / Clip?

  • Automatic Self-Adjustment: The spring mechanism compensates for minor hose expansion and contraction due to temperature changes, helping to maintain a consistent seal.
  • Cost-Effective Solution: Provides a reliable seal for less demanding applications at an economical price point.
  • Durable Steel Band: Offers good strength for light-duty clamping needs.
  • Compact Size Range: Covers diameters from 5.5 to 21.5mm (0.22 to 0.84 Inches), suitable for smaller hose and tubing applications.
  • Easy Installation: Designed for quick and straightforward slip-on installation without the need for specialized tools.
  • Maintains Seal: Helps prevent minor leaks due to thermal cycling in light-duty systems.
  • Trusted Mikalor Quality: Mikalor is a reputable manufacturer known for producing reliable fastening solutions.
  • Silver Finish: Offers a clean and functional appearance.

Perfect For:

  • Small Engine Fuel Lines
  • Vacuum Lines
  • Low-Pressure Air Lines
  • Appliance Hoses
  • Irrigation Tubing
  • Other light-duty applications where a self-adjusting seal is beneficial

Experience Simple and Reliable Light-Duty Sealing:

The Mikalor Light Duty Spring Band Steel Hose Clamp / Clip offers a practical and efficient solution for securing hoses and tubing in less
demanding applications. The spring action provides automatic adjustment to maintain a consistent seal, while the steel band offers sufficient strength for
light-duty use. The silver finish provides a clean look, and the simple slip-on installation makes it a convenient choice for various projects.

Key Features:

  • Material: Steel Band with a Silver Finish (typically spring steel)
  • Type: Light Duty Constant Pressure Spring Clamp / Clip
  • Size Range: 5.5-21.5mm (0.22-0.84 Inches)
  • Automatic Self-Adjustment for a Consistent Seal
  • Cost-Effective Solution for Light-Duty Applications
  • Easy Slip-On Installation
  • Silver Finish

For a reliable, cost-effective, and self-adjusting seal in light-duty applications, choose the Mikalor Light Duty Spring Band Steel Hose Clamp / Clip. Order yours today for simple and effective hose connections!
