ABA | Mini Screw Hose Clamp | W4 304 Stainless Steel

ABA | Mini Screw Hose Clamp | W4 304 Stainless Steel

ABA-MINI-9-W4-8

29,01 Kč
29,01 Kč
Sale Sold out

Out of stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

7.0mm - 9.0mm - 0.28in - 0.35in - 9.0mm (0.37in) - ABA-MINI-9-W4-8 - 0810 3002 008 - 304SS - Very Good - - - - 29,01 Kč 0
8.0mm - 10.0mm - 0.31in - 0.39in - 9.0mm (0.37in) - ABA-MINI-9-W4-9 - 0810 3002 009 - 304SS - Very Good - - - - 29,01 Kč 0
9.0mm - 10.0mm - 0.35in - 0.39in - 9.0mm (0.37in) - ABA-MINI-9-W4-10 - 0810 3002 010 - 304SS - Very Good - - - - 30,00 Kč 0
10.0mm - 12.0mm - 0.39in - 0.47in - 9.0mm (0.37in) - ABA-MINI-9-W4-11 - 0810 3002 011 - 304SS - Very Good - - - - 30,00 Kč 0
11.0mm - 13.0mm - 0.43in - 0.51in - 9.0mm (0.37in) - ABA-MINI-9-W4-12 - 0810 3002 012 - 304SS - Very Good - - - - 31,99 Kč 0
12.0mm - 14.0mm - 0.47in - 0.55in - 9.0mm (0.37in) - ABA-MINI-9-W4-13 - 0810 3002 013 - 304SS - Very Good - - - - 31,99 Kč 0
13.0mm - 15.0mm - 0.51in - 0.59in - 9.0mm (0.37in) - ABA-MINI-9-W4-14 - 0810 3002 014 - 304SS - Very Good - - - - 33,47 Kč 0
14.0mm - 16.0mm - 0.55in - 0.63in - 9.0mm (0.37in) - ABA-MINI-9-W4-15 - 0810 3002 015 - 304SS - Very Good - - - - 33,47 Kč 0
15.0mm - 17.0mm - 0.59in - 0.67in - 9.0mm (0.37in) - ABA-MINI-9-W4-16 - 0810 3002 016 - 304SS - Very Good - - - - 35,71 Kč 0
16.0mm - 18.0mm - 0.63in - 0.71in - 9.0mm (0.37in) - ABA-MINI-9-W4-17 - 0810 3002 017 - 304SS - Very Good - - - - 35,71 Kč 0

Description

ABA Mini Standard clamp is particularly suitable for use on small, thin-walled hoses. This little clamp provides an excellent clamping force well over screwless clamps. ABA Mini cross slot screw permits use of various installation tools.

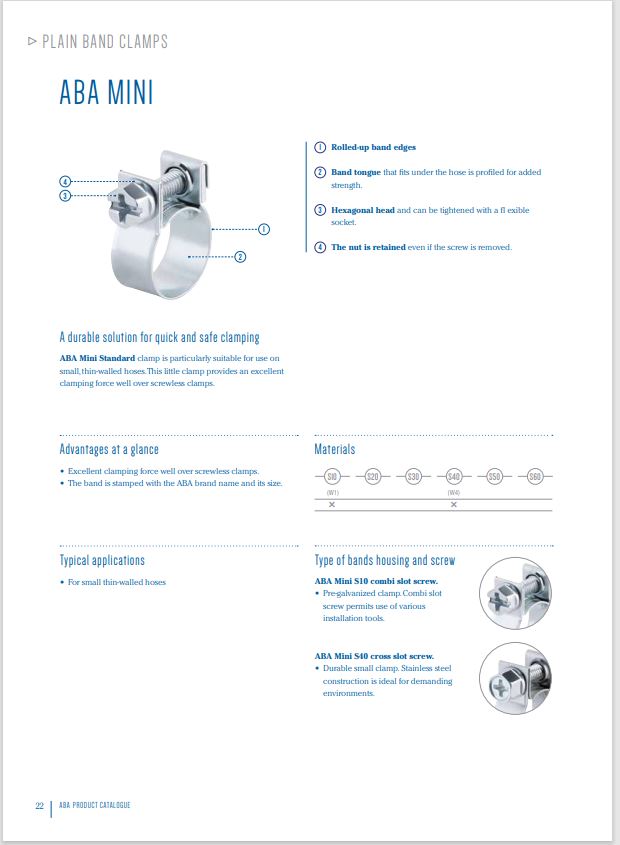

Product Specification Sheet

Download

Specification

Manufactured By ABA
HCL P/N ABA-MINI-X-W4
Series ABA MINI
Corrosion Resistance Very Good
Hose Clamp Width mm/in 9.0mm (0.35in)
Band Material W4 304 Stainless Steel
Bolt/Screw Type Phillips Hex
Bolt/Screw Material W4 304 Stainless Steel
Bolt/Screw Size 7.0mm (0.25in) AF
Colour Silver
Country of Manufacture Sweden
Tariff Code 7326.9
Hazardous Goods No
RoHS Compliant Yes

Compact & Corrosion-Resistant: ABA 9.0mm Mini
Screw Hose Clamp - 304 Stainless Steel (7.0-18.0mm | 0.28-0.71 Inches)

Ensure secure and reliable connections in confined spaces with excellent corrosion resistance using the ABA 3/8 Inch Mini Screw Hose Clamp. Constructed entirely from high-quality 304 stainless steel, this compact clamp features a standard screw tightening mechanism and a narrow 3/8 Inch (9mm) band. It provides a dependable sealing solution for smaller diameter hoses and tubes across a precise size range of 8.0 to 17.0mm (0.31 to 0.67 Inches).

Why Choose the ABA 9mm Mini Screw Hose Clamp?

  • Compact Size: The narrow 3/8 Inch band and small overall footprint make it ideal for tight spaces and smaller diameter hoses.
  • Reliable Screw Tightening: Allows for precise adjustment of clamping pressure to achieve a secure and leak-free seal.
  • Superior 304 Stainless Steel: Offers excellent corrosion resistance for long-lasting performance in various environments, including marine and chemical applications.
  • Precise Size Range: Covers diameters from 8.0 to 17.0mm (0.31 to 0.67 Inches), specifically suited for very small hose, thin walled hose and tubing applications.
  • Easy Installation: Can be easily installed and tightened with a standard screwdriver or nut driver.
  • Durable and Long-Lasting: The 304 stainless steel construction ensures excellent durability and resistance to rust and degradation.
  • Trusted ABA Quality: ABA is a renowned manufacturer known for producing high-quality and reliable clamping solutions.

Perfect For:

  • Small Engine Fuel Lines
  • Vacuum Lines
  • Low-Pressure Air Lines
  • Small Appliance Hoses
  • Instrumentation Tubing
  • Marine Applications (small hoses)
  • Chemical Processing (low concentration, small hoses)
  • Any application requiring a compact, corrosion-resistant clamp in tight spaces
  • Thin Walled Hoses

Experience Reliable Sealing with Superior Corrosion
Resistance in Tight Spaces:

The ABA 9.0mm Mini Screw Hose Clamp is designed to provide a secure and leak-free seal in applications where both space and corrosion resistance are critical. Its compact size allows it to fit into tight areas, while the reliable screw tightening mechanism ensures that the clamping pressure can be precisely adjusted. The full 304 stainless steel construction offers superior protection against rust and corrosion, making it ideal for demanding environments.

Key Features:

  • Material: Full 304 Stainless Steel (Band and Screw)
  • Bandwidth: 9mm
  • Size Range: 8.0-17.0mm (0.31-0.67 Inches)
  • Type: Mini Screw Hose Clamp, Pertol Pipe Clip or Fuel Line Hose Clamp
  • Compact Size for Very Tight Spaces
  • Reliable Screw Tightening Mechanism
  • Superior Corrosion Resistance (Full 304 Stainless Steel)
  • Durable and Long-Lasting

For secure, corrosion-resistant connections in confined spaces with very small diameter hoses and tubes, choose the ABA 9.0mm Mini Screw Hose Clamp. Order yours today for a high-quality and reliable clamping solution!
