HCL | Smart Band Banding (Strapping) | 10mm & 19mm Wide | Various Reel Lengths | PA66 Nylon Material

SKU:SB-BA-3/8-30M-PA66

1.769,92 Kč

Sale Sold out

Out of stock

Quantity

Free standard shipping. Next day delivery available. Find out more

View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu

Scroll

Image	Band Width ? Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.	Reel Length ? Reel Length ft/m: Indicates the total length of the material wound on the reel, measured in both meters and feet.	Max System Str ? Max System Str: The overall maximum strength or working pressure limit of the assembled system.	Band Thk ? Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.	HCL P/N ? HCL/ PN: The unique identifying number assigned to a part by HCL	2D PDF ? 2D PDF: A standard document format containing two-dimensional drawings.	2D DXF ? 2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.	3D STP ? 3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.	Price ? Price: The cost per unit
-	10.0mm (0.37in) -	30.0m (100ft) -	264kgf - 581lbf -	3.6mm (0.14in) -	SB-BA-3/8-30M-PA66 -	-	-	-	1.769,92 Kč
-	10.0mm (0.37in) -	125.0m (410ft) -	264kgf - 581lbf -	3.6mm (0.14in) -	SB-BA-3/8-125M-PA66 -	-	-	-	7.375,01 Kč
-	19.0mm (0.74in) -	30.0m (100ft) -	440kgf - 969lbf -	3.6mm (0.14in) -	SB-BA-3/4-30M-PA66 -	-	-	-	4.322,65 Kč
-	19.0mm (0.74in) -	60.0m (200ft) -	440kgf - 969lbf -	3.6mm (0.14in) -	SB-BA-3/4-60M-PA66 -	-	-	-	8.645,05 Kč

Description

Smart® Band is a non-metallic band and buckle system. Highly suited to a variety of Banding applications, Non-Corrosive, Non-Conductive & Non-Magnetic. The Smart Band is available in 4 widths and several reel lengths and is capable of withstanding extreme loads making it the strongest non-metallic clamping system in the world. Strength figures are dependent on Buckle Choice (see brochure for more information) HCL also offers a number of installation tools to provide safe & simple installation.

The PA66 banding is designed to work with the PA66 Standard buckle of compatible size - and is useful for general applications offering enhanced corrosion resistance, good weathering and toughness properties and flexibility

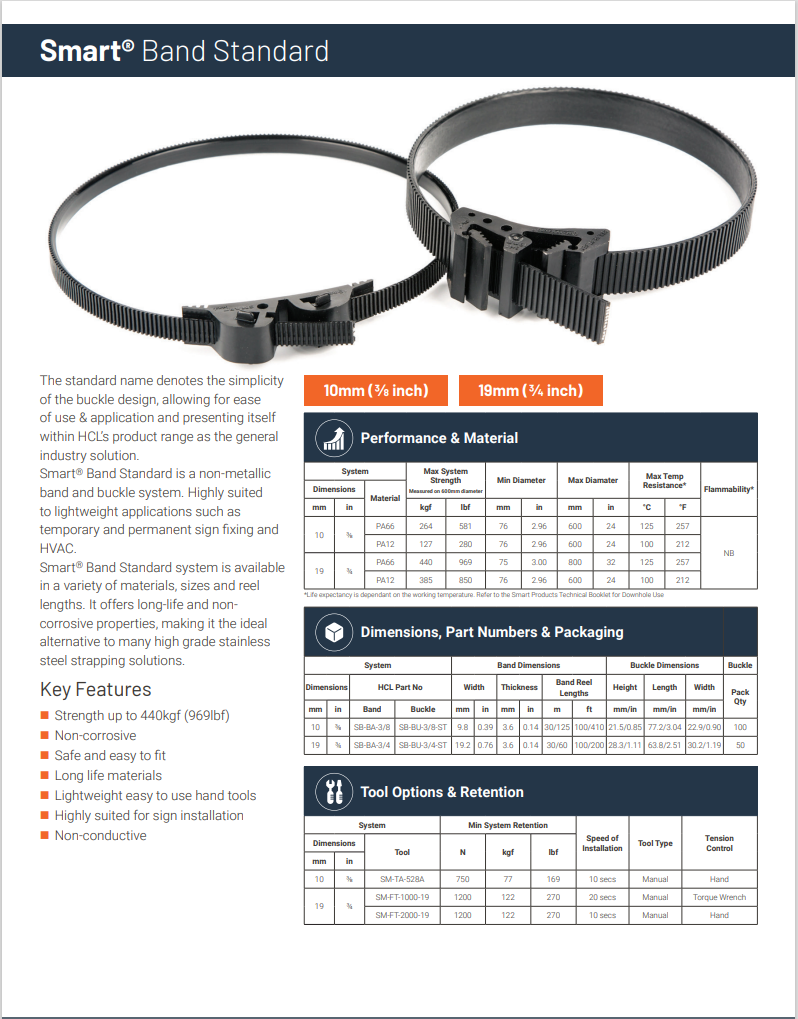

Product Specification Sheet

Download

Specification

Manufactured By	HCL
HCL P/N	SB-BA-X-XM-PA66
Series	HCL Smart Band
Corrosion Resistance	Excellent
Band Material	Nylon 6.6 (PA66)
Max Strength	969 lbf
Max long Term Operating Temp	257°F (125°C)
Flammability	HB UL94 Self Extinguishing
Weathering & UV	Good
Chemical Resistance	Good
Colour	Black
Tool Compatibility	SM-FT-2000-S
For use with	Smart Band 10mm & 19mm Standard Heads
Country of Manufacture	United Kingdom
Tariff Code	3917 40 00 99
RoHS Compliant	Yes

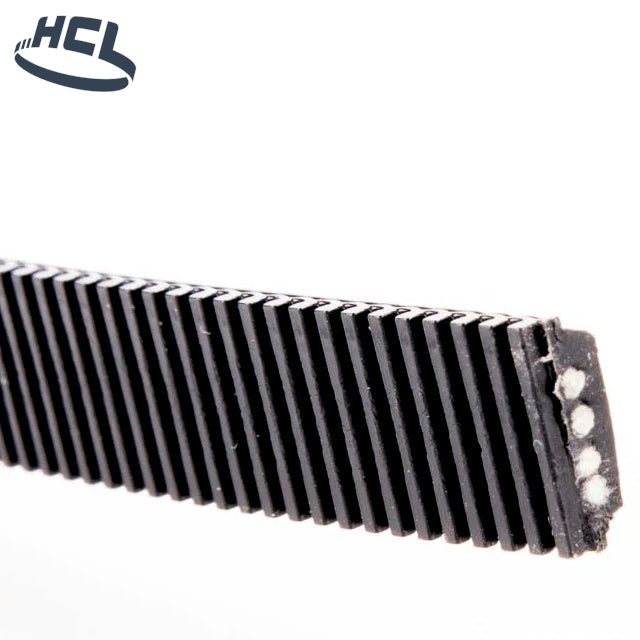

Smart Band PA66 Polymer Band (Reels) | Reinforced Nylon 6.6 Strapping for High Mechanical Loads

The Smart Band PA66 Polymer Band provides professional-grade, high-strength fastening for industrial applications. Made from Reinforced Nylon 6.6, this strapping delivers superior mechanical performance, rigidity, and non-metal safety, supplied on bulk reels for efficient, high-volume securing.

Why Choose This Reinforced PA66 Band?

Reinforced Nylon 6.6 High Strength: The core advantage is the Reinforced PA66 material, which provides superior mechanical strength, high tensile strength, and increased rigidity compared to standard polymer banding, allowing it to handle heavier loads securely.

Excellent Industrial Durability: Nylon 6.6 is highly resistant to abrasion, impact, and common industrial fluids, oils, and greases, ensuring the band maintains its integrity and provides a reliable, long service life in general manufacturing and maintenance settings.

Non-Corrosive and Non-Conductive: I will stress the non-metal benefits: completely immune to rust and general corrosion and inherently non-conductive, making it a safe and ideal choice for securing assets in electrical, utility, and general industrial environments.

Good Thermal Performance: PA66 offers good thermal stability, making it suitable for many indoor industrial applications where resistance to moderate heat is required, exceeding the capabilities of standard plastics.

Bulk Reels for High-Volume Use: Supplied on convenient reels, this strapping is perfect for high-volume projects, ensuring a continuous, waste-reducing supply on large-scale job sites.

Perfect For:

High-volume securing of cables, hoses, and conduits in general industry.
Electrical utilities and telecommunications requiring non-conductive, high-strength strapping.
Manufacturing and fleet maintenance where durability and chemical resistance are key.
Indoor/outdoor applications with moderate environmental exposure.

Get the strength of metal with the safety of polymer. Order the Smart Band PA66 Polymer Band in bulk reels today!
