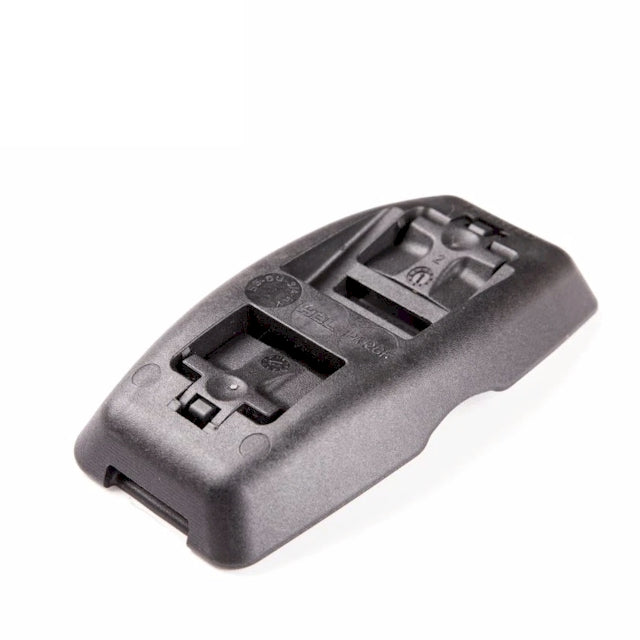

  • HCL | Smart Band Buckle | Hybrid | 19mm | Acetal Polymer | Suitable for 19mm Acetal Smart Band 19.0mm (0.74in) - HCL Fasteners EU - Image 1
1 1

HCL | Smart Band Buckle | Hybrid | 19mm | Acetal Polymer | Suitable for 19mm Acetal Smart Band

HCL | Smart Band Buckle | Hybrid | 19mm | Acetal Polymer | Suitable for 19mm Acetal Smart Band

SB-BU-3/4-HY-POM

111,83 Kč
111,83 Kč
Sale Sold out

Out of stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu

Description

Smart® Band is a non-metallic band and buckle system. Highly suited to a variety of Banding applications, Non-Corrosive, Non-Conductive & Non-Magnetic. The Smart Band is available in 4 widths and several reel lengths and is capable of withstanding extreme loads making it the strongest non-metallic clamping system in the world. Strength figures are dependent on Buckle Choice (see brochure for more information) HCL also offers a number of installation tools to provide safe & simple installation.

The Hybrid buckles offer superior system strength in comparison to the standard buckles and are designed to be used with the compatible sized band of the same POM material.

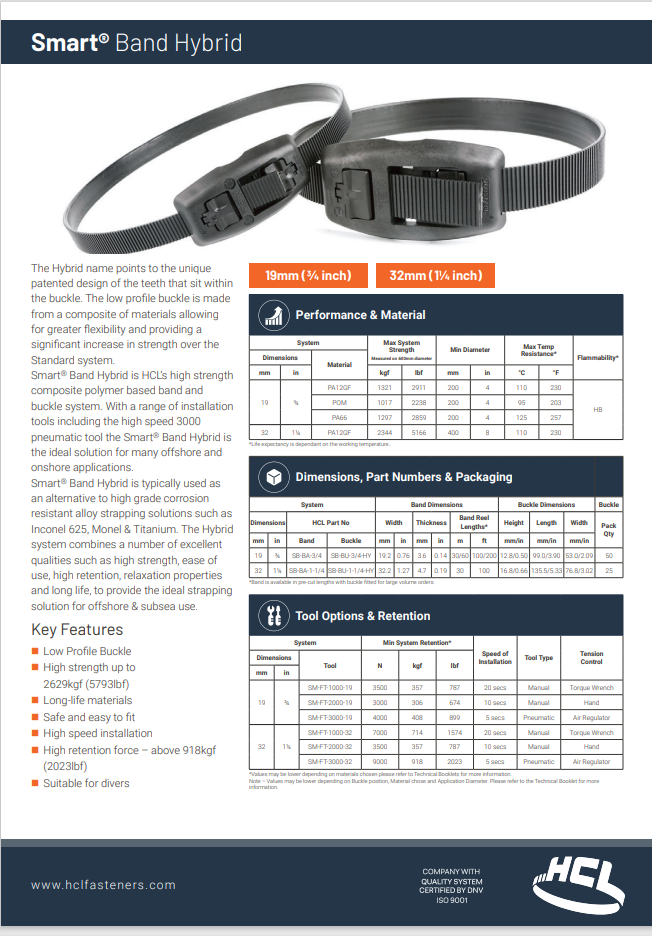

Product Specification Sheet

Download

Specification

Manufactured By HCL
Series HCL Smart Band Hybrid
Corrosion Resistance Excellent
Band Material Acetal POM
Max Strength 2238 lbf
Max long Term Operating Temp 203°F (95°C)
Flammability HB UL94 Self Extinguishing
Weathering & UV Excellent
Chemical Resistance Good
Colour Black
For use with 19mm POM Reels
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band POM Hybrid Buckle (19mm) | Acetal Polymer for High Stiffness & Dimensional Stability

Achieve a precise, highly consistent, and secure clamp with the Smart Band POM Hybrid Buckle. Made from high-performance Acetal (Polyoxymethylene) polymer, this buckle is engineered for superior stiffness and exceptional resistance to creep, ensuring the tension you apply is maintained over the long term.

Why Choose This POM Hybrid Buckle?

High Stiffness and Dimensional Stability (POM): Utilizing Acetal (POM), this buckle boasts high mechanical stiffness and minimal moisture absorption. This ensures the component maintains its precise dimensions and high clamping force over time, even with temperature and humidity fluctuations.

Excellent Creep Resistance: The superior resistance to creep (material deformation under continuous load) is the key differentiator. This ensures that the initial tension applied to the band remains consistent, preventing the bundle from loosening over the service life of the connection.

Low Friction Installation: The naturally low coefficient of friction of the Acetal material allows the banding to slide smoothly during tensioning, helping technicians achieve maximum, uniform, and precise tension without binding.

Non-Corrosive & Non-Conductive: Like other high-performance polymer solutions, it is completely immune to rust and general corrosion and is non-conductive, making it safe for both electrical and harsh chemical environments.

19mm Standard Size: The 19mm width is compatible with corresponding standard-width Smart Band materials for versatile application.

Perfect For:

  • Applications requiring consistent clamping force over a long period.
  • Securing bundles subject to constant vibration or mechanical load.
  • Telecommunications and electrical utility work (non-conductive benefit).
  • Industrial applications where stability and resistance to creep are paramount.

For stable, long-lasting tension in your critical bundles, choose mechanical precision. Order the Smart Band POM Hybrid Buckle today!
