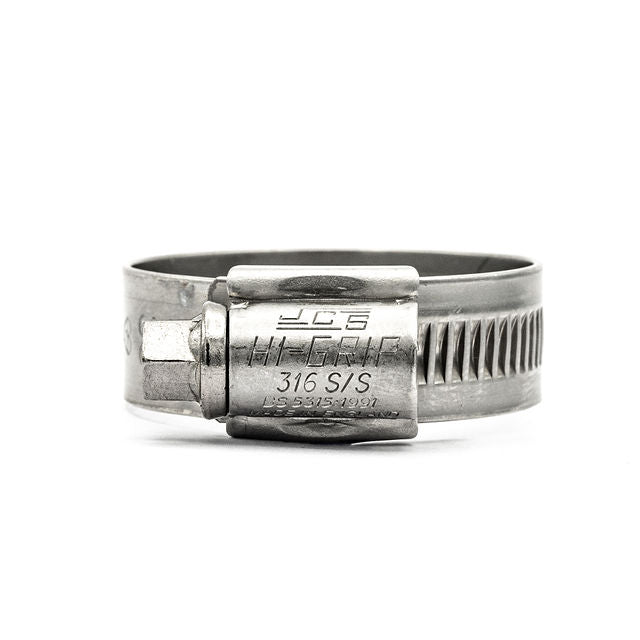

JCS| Hi-Grip Worm Drive Hose Clip | BSi Standard | Kite Marked | W5 316 Stainless Steel

JCS| Hi-Grip Worm Drive Hose Clip | BSi Standard | Kite Marked | W5 316 Stainless Steel

WD-JCS-HG-12-W5

73,40 Kč
73,40 Kč
Sale Sold out

150 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

9.5mm - 12.0mm - 0.37in - 0.47in - 9.0mm (0.35in) - WD-JCS-HG-12-W5 - HGJ12BP - Excellent - 73,40 Kč 150
11.0mm - 16.0mm - 0.43in - 0.63in - 9.0mm (0.35in) - WD-JCS-HG-16-W5 - HGJ16BP - Excellent - 76,12 Kč 100
13.0mm - 20.0mm - 0.51in - 0.79in - 9.0mm (0.35in) - WD-JCS-HG-20-W5 - HGJ20BP - Excellent - 78,60 Kč 0
14.0mm - 22.0mm - 0.55-0.87in - 13.0mm (0.51in) - WD-JCS-HG-22-W5 - HGJ22BP - Excellent - 85,05 Kč 0
17.0mm - 25.0mm - 0.67-0.98in - 13.0mm (0.51in) - WD-JCS-HG-25-W5 - HGJ25BP - Excellent - 86,54 Kč 50
22.0mm - 30.0mm - 0.87in - 1.18in - 13.0mm (0.51in) - WD-JCS-HG-30-W5 - HGJ30BP - Excellent - 89,51 Kč 0
25.0mm - 35.0mm - 0.98in - 1.38in - 13.0mm (0.51in) - WD-JCS-HG-35-W5 - HGJ35BP - Excellent - 92,74 Kč 0
30.0mm - 40.0mm - 1.18in - 1.57in - 13.0mm (0.51in) - WD-JCS-HG-40-W5 - HGJ40BP - Excellent - 95,96 Kč 0
35.0mm - 45.0mm - 1.38-1.77in - 13.0mm (0.51in) - WD-JCS-HG-45-W5 - HGJ45BP - Excellent - 99,43 Kč 0
35.0mm - 50.0mm - 1.38in - 1.97in - 13.0mm (0.51in) - WD-JCS-HG-50-W5 - HGJ50BP - Excellent - 107,86 Kč 100
40.0mm - 55.0mm - 1.57in - 2.17in - 13.0mm (0.51in) - WD-JCS-HG-55-W5 - HGJ55BP - Excellent - 111,58 Kč 100
45.0mm - 60.0mm - 1.77in - 2.36in - 13.0mm (0.51in) - WD-JCS-HG-60-W5 - HGJ60BP - Excellent - 116,79 Kč 0
50.0mm - 70.0mm - 1.97-2.76in - 13.0mm (0.51in) - WD-JCS-HG-70-W5 - HGJ70BP - Excellent - 127,20 Kč 0
60.0mm - 80.0mm - 2.36in - 3.15in - 13.0mm (0.51in) - WD-JCS-HG-80-W5 - HGJ80BP - Excellent - 134,64 Kč 100
70.0mm - 90.0mm - 2.76in - 3.54in - 13.0mm (0.51in) - WD-JCS-HG-90-W5 - HGJ90BP - Excellent - 143,32 Kč 40
80.0mm - 100.0mm - 3.15-3.94in - 13.0mm (0.51in) - WD-JCS-HG-100-W5 - HGJ100BP - Excellent - 152,25 Kč 75
90.0mm - 120.0mm - 3.54in - 4.72in - 13.0mm (0.51in) - WD-JCS-HG-120-W5 - HGJ120BP - Excellent - 169,85 Kč 0
110.0mm - 140.0mm - 4.33in - 5.51in - 13.0mm (0.51in) - WD-JCS-HG-140-W5 - HGJ140BP - Excellent - 187,70 Kč 60
130.0mm - 160.0mm - 5.12-6.30in - 13.0mm (0.51in) - WD-JCS-HG-160-W5 - HGJ160BP - Excellent - 205,31 Kč 0
150.0mm - 180.0mm - 5.91-7.01in - 13.0mm (0.51in) - WD-JCS-HG-180-W5 - HGJ180BP - Excellent - 222,91 Kč 25
170.0mm - 200.0mm - 6.69-7.87in - 13.0mm (0.51in) - WD-JCS-HG-200-W5 - HGJ200BP - Excellent - 240,52 Kč 0
190.0mm - 220.0mm - 7.48-8.66in - 13.0mm (0.51in) - WD-JCS-HG-220-W5 - HGJ220BP - Excellent - 258,12 Kč 50
210.0mm - 240.0mm - 8.27-9.45in - 13.0mm (0.51in) - WD-JCS-HG-240-W5 - HGJ240BP - Excellent - 275,48 Kč 0

Description

JCS Hi-Grip general purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, have BSI Kitemark and NATO approval, and exceeds all operational requirements of the relevant DIN and SAE standards.

Principally aimed at the marine, food,
petro-chemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the the same superior
performance as the rest of the Hi-Grip range but with maximum corrosion
resistance.

Lloyd's register Type Approval for marine, offshore and industrial use

Product Specification Sheet

Download

Specification

Manufactured By JCS
HCL P/N WD-JCS-HG-X-W5
Series JCS Hi-Grip W5
Corrosion Resistance Excellent
Hose Clamp Width mm/in 13.0mm (0.51in)9.0mm (0.35in)
Band Style Embossed Band
Band Material W5 316 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W5 316 Stainless Steel
Bolt/Screw Size 7.0mm (0.28in) A/F
Finish Stainless Steel
Colour Silver
Specification 1 Kitemarked to BS 5315:1991
Specification 2 Lloyd's Register Approval
Country of Manufacture United Kingdom
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes
