Mikalor | Constant Tension High Torque ASFA Hose Clamps | 16mm | W4 304 Stainless Steel

Mikalor | Constant Tension High Torque ASFA Hose Clamps | 16mm | W4 304 Stainless Steel

MIK-HTCT-W4-25

261,10 Kč
261,10 Kč
Sale Sold out

50 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

25.0mm - 45.0mm - 0.98in - 1.77in - 16.0mm (0.63in) - MIK-HTCT-W4-25 - 03069001 - 14 Nm - 55 Bars - Very Good - 261,10 Kč 50
32.0mm - 54.0mm - 1.26in - 2.13in - 16.0mm (0.63in) - MIK-HTCT-W4-32 - 03069002 - 14 Nm - 50 Bars - Very Good - 265,81 Kč 50
45.0mm - 67.0mm - 1.77in - 2.64in - 16.0mm (0.63in) - MIK-HTCT-W4-45 - 03069003 - 14 Nm - 45 Bars - Very Good - 272,75 Kč 50
57.0mm - 79.0mm - 2.24in - 3.11in - 16.0mm (0.63in) - MIK-HTCT-W4-57 - 03069004 - 14 Nm - 40 Bars - Very Good - 278,70 Kč 25
70.0mm - 92.0mm - 2.76in - 3.62in - 16.0mm (0.63in) - MIK-HTCT-W4-70 - 03069005 - 14 Nm - 30 Bars - Very Good - 285,65 Kč 50
83.0mm - 105.0mm - 3.27in - 4.13in - 16.0mm (0.63in) - MIK-HTCT-W4-83 - 03069006 - 14 Nm - 20 Bars - Very Good - 292,34 Kč 25
95.0mm - 118.0mm - 3.74in - 4.65in - 16.0mm (0.63in) - MIK-HTCT-W4-95 - 03069007 - 14 Nm - 17 Bars - Very Good - 299,29 Kč 25
108.0mm - 130.0mm - 4.25in - 5.12in - 16.0mm (0.63in) - MIK-HTCT-W4-108 - 03069008 - 14 Nm - 14 Bars - Very Good - 305,48 Kč 25
121.0mm - 143.0mm - 4.76in - 5.63in - 16.0mm (0.63in) - MIK-HTCT-W4-121 - 03069009 - 14 Nm - 11 Bars - Very Good - 312,43 Kč 25
133.0mm - 156.0mm - 5.24in - 6.14in - 16.0mm (0.63in) - MIK-HTCT-W4-133 - 03069010 - 14 Nm - 8 Bars - Very Good - 319,12 Kč 25
146.0mm - 168.0mm - 5.75in - 6.61in - 16.0mm (0.63in) - MIK-HTCT-W4-146 - 03069011 - 14 Nm - 6 Bars - Very Good - 325,32 Kč 25
159.0mm - 181.0mm - 6.26in - 7.13in - 16.0mm (0.63in) - MIK-HTCT-W4-159 - 03069012 - 14 Nm - 5 Bars - Very Good - 332,26 Kč 25
172.0mm - 194.0mm - 6.77in - 7.64in - 16.0mm (0.63in) - MIK-HTCT-W4-172 - 03069013 - 14 Nm - 4 Bars - Very Good - 338,96 Kč 25
184.0mm - 206.0mm - 7.24in - 8.11in - 16.0mm (0.63in) - MIK-HTCT-W4-184 - 03069014 - 14 Nm - 3 Bars - Very Good - 345,16 Kč 25
197.0mm - 219.0mm - 7.76in - 8.62in - 16.0mm (0.63in) - MIK-HTCT-W4-197 - 03069015 - 14 Nm - 2 Bars - Very Good - 351,85 Kč 25
210.0mm - 232.0mm - 8.27in - 9.13in - 16.0mm (0.63in) - MIK-HTCT-W4-210 - 03069016 - 14 Nm - 2 Bars - Very Good - 358,80 Kč 25

Description

The MIKALOR High Torque Constant Tension clamp has been designed to guarantee constant performance and torque values.

The screw is fitted with special conical washers, which adapt their behaviour according to the vibrations and temperature changes occurring in the application. Thanks to the 8 mm hexagonal screw and a bandwidth of 16 mm, we can increase the tightening torque by more than 118 % compared to the range with a bandwidth of 12 mm, while at the same time
increasing the performance by 48 %.

Designed and manufactured with perfectly rounded band edges and a housing with a double fastening reinforcement.

Due to its high performance, it is especially used in industrial applications and in the agricultural machinery, naval and industrial vehicle sectors.

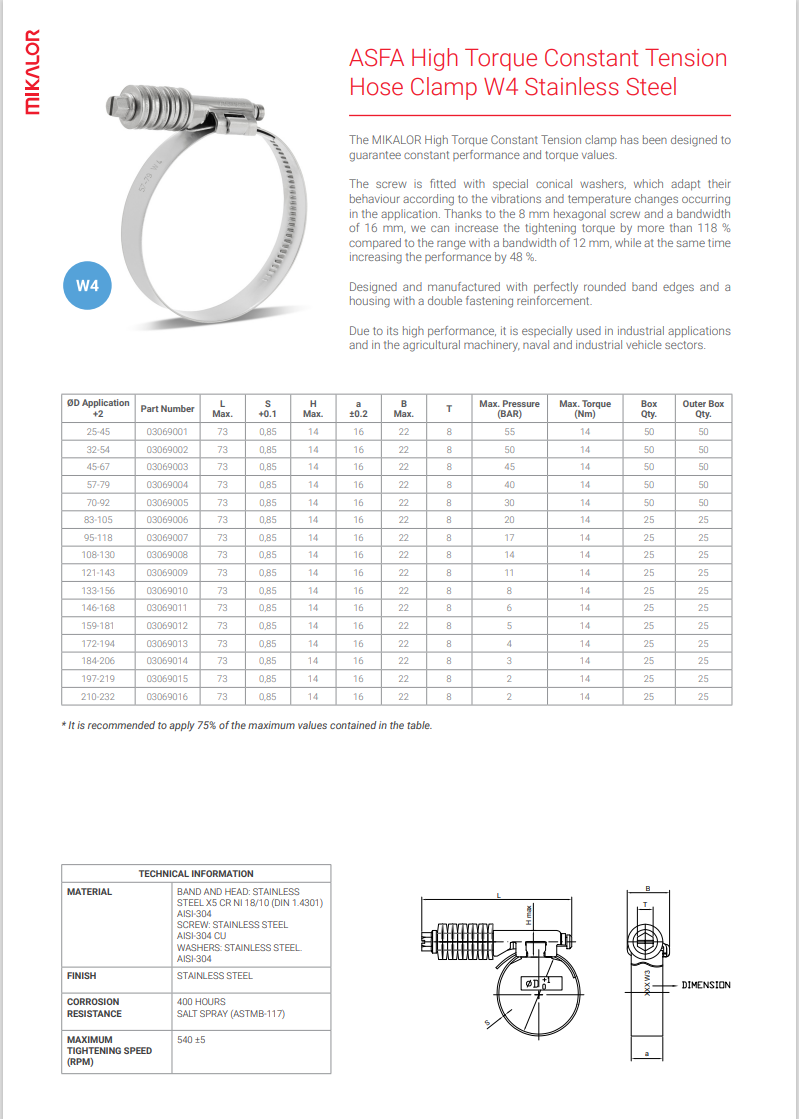

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N MIK-HTCT-W4-X
Series ASFA HT Constant Tension W4
Corrosion Resistance Very Good
Corrosion Specification 400 Hours Salt Spray (ASTM B-117)
Hose Clamp Width mm/in 16.0mm (0.63in)
Band Style Embossed Band
Band Material W4 304 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W4 304 Stainless Steel
Bolt/Screw Size 8.0mm (0.31in) A/F
Finish Stainless Steel
Colour Silver
Max Tightening Speed RPM 540 +/-5
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes
