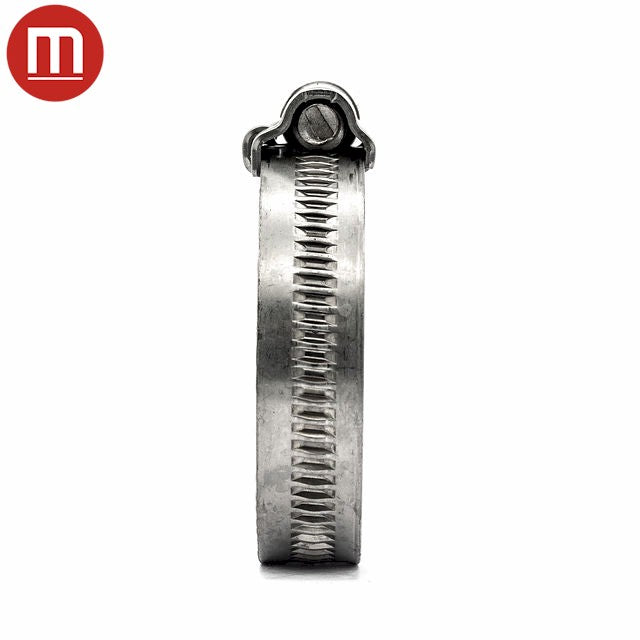

  • Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel 16.0mm - 27.0mm (0.63-1.06in) - HCL Fasteners EU - Image 1
  • Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel 16.0mm - 27.0mm (0.63-1.06in) - HCL Fasteners EU - Image 2
  • Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel 16.0mm - 27.0mm (0.63-1.06in) - HCL Fasteners EU - Image 3
  • Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel 16.0mm - 27.0mm (0.63-1.06in) - HCL Fasteners EU - Image 4
1 4

Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel

Mikalor | ASFA-S Worm Drive Hose Clamps | 12mm Embossed Band Width | W4 304 Stainless Steel

WD-12-DIN-160-W4

135,88 Kč
135,88 Kč
Sale Sold out

25 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

16.0mm - 27.0mm - 0.63in - 1.06in - 12.0mm (0.47in) - WD-12-DIN-16-W4 - 03014730 - 5.5 Nm - 40 Bars - Very Good - 59,51 Kč 0
20.0mm - 32.0mm - 0.79in - 1.26in - 12.0mm (0.47in) - WD-12-DIN-20-W4 - 03014510 - 5.5 Nm - 40 Bars - Very Good - 61,99 Kč 0
25.0mm - 40.0mm - 0.98in - 1.57in - 12.0mm (0.47in) - WD-12-DIN-25-W4 - 03014529 - 5.5 Nm - 35 Bars - Very Good - 65,71 Kč 0
30.0mm - 45.0mm - 1.18in - 1.77in - 12.0mm (0.47in) - WD-12-DIN-30-W4 - 03014748 - 6.5 Nm - 35 Bars - Very Good - 69,68 Kč 0
32.0mm - 50.0mm - 1.26in - 1.97in - 12.0mm (0.47in) - WD-12-DIN-32-W4 - 03014537 - 6.5 Nm - 30 Bars - Very Good - 69,92 Kč 0
40.0mm - 60.0mm - 1.57in - 2.36in - 12.0mm (0.47in) - WD-12-DIN-40-W4 - 03014545 - 7 Nm - 25 Bars - Very Good - 74,64 Kč 0
50.0mm - 70.0mm - 1.97in - 2.76in - 12.0mm (0.47in) - WD-12-DIN-50-W4 - 03014553 - 7 Nm - 20 Bars - Very Good - 81,58 Kč 0
60.0mm - 80.0mm - 2.36in - 3.15in - 12.0mm (0.47in) - WD-12-DIN-60-W4 - 03014561 - 7 Nm - 17 Bars - Very Good - 90,01 Kč 0
70.0mm - 90.0mm - 2.76in - 3.54in - 12.0mm (0.47in) - WD-12-DIN-70-W4 - 03014570 - 7 Nm - 14 Bars - Very Good - 94,47 Kč 0
80.0mm - 100.0mm - 3.15in - 3.94in - 12.0mm (0.47in) - WD-12-DIN-80-W4 - 03014588 - 7 Nm - 12 Bars - Very Good - 98,19 Kč 0
90.0mm - 110.0mm - 3.54in - 4.33in - 12.0mm (0.47in) - WD-12-DIN-90-W4 - 03014596 - 7 Nm - 10 Bars - Very Good - 101,17 Kč 0
100.0mm - 120.0mm - 3.94in - 4.72in - 12.0mm (0.47in) - WD-12-DIN-100-W4 - 03014609 - 7 Nm - 8 Bars - Very Good - 109,10 Kč 0
110.0mm - 130.0mm - 4.33in - 5.12in - 12.0mm (0.47in) - WD-12-DIN-110-W4 - 03014617 - 7 Nm - 7 Bars - Very Good - 112,32 Kč 0
120.0mm - 140.0mm - 4.72in - 5.51in - 12.0mm (0.47in) - WD-12-DIN-120-W4 - 03014625 - 7 Nm - 6 Bars - Very Good - 113,32 Kč 0
130.0mm - 150.0mm - 5.12in - 5.91in - 12.0mm (0.47in) - WD-12-DIN-130-W4 - 03014633 - 7 Nm - 5 Bars - Very Good - 116,79 Kč 0
140.0mm - 160.0mm - 5.51in - 6.30in - 12.0mm (0.47in) - WD-12-DIN-140-W4 - 03014641 - 7 Nm - 4 Bars - Very Good - 120,51 Kč 0
150.0mm - 170.0mm - 5.91in - 6.69in - 12.0mm (0.47in) - WD-12-DIN-150-W4 - 03014650 - 7 Nm - 3 Bars - Very Good - 130,18 Kč 0
160.0mm - 180.0mm - 6.30in - 7.09in - 12.0mm (0.47in) - WD-12-DIN-160-W4 - 03014668 - 7 Nm - 2 Bars - Very Good - 135,88 Kč 25
170.0mm - 190.0mm - 6.69in - 7.48in - 12.0mm (0.47in) - WD-12-DIN-170-W4 - 03014676 - 7 Nm - 2 Bars - Very Good - 142,33 Kč 0
180.0mm - 200.0mm - 7.09in - 7.87in - 12.0mm (0.47in) - WD-12-DIN-180-W4 - 03014684 - 7 Nm - 2 Bars - Very Good - 145,30 Kč 10
190.0mm - 210.0mm - 7.48in - 8.27in - 12.0mm (0.47in) - WD-12-DIN-190-W4 - 03014692 - 7 Nm - 1.6 Bars - Very Good - 147,53 Kč 0
200.0mm - 220.0mm - 7.87in - 8.66in - 12.0mm (0.47in) - WD-12-DIN-200-W4 - 03014705 - 7 Nm - 1.6 Bars - Very Good - 149,77 Kč 0
210.0mm - 230.0mm - 7.48in - 9.06in - 12.0mm (0.47in) - WD-12-DIN-210-W4 - 03014713 - 7 Nm - 1.5 Bars - Very Good - 153,73 Kč 0
220.0mm - 240.0mm - 8.66in - 9.45in - 12.0mm (0.47in) - WD-12-DIN-220-W4 - 03014721 - 7 Nm - 1.5 Bars - Very Good - 158,69 Kč 0

Description

The ASFA S hose clip combines an innovative housing and a sturdy 12mm band which together make this a high-performance hose clip. The cold-formed stamped band thread, smoothed on the underside, combined with bevelled band edges protects the hose from any damage. The (AISI-304) Stainless steel Material makes this product highly suited to corrosive environments. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N WD-12-DIN-X-W4
Series Mikalor ASFA-S W4
Corrosion Resistance Very Good
Corrosion Specification 400 Hours Salt Spray (ASTM B-117)
Hose Clamp Width mm/in 12.0mm (0.47in)
Band Style Embossed Band
Band Material W4 304 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W4 304 Stainless Steel
Bolt/Screw Size 7.0mm (0.28in) A/F
Finish Stainless Steel
Colour Silver
Max Tightening Speed RPM 540 +/-5
Specification 1 DIN 3017
Specification 2 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Ultimate Corrosion Resistance & Strength: Mikalor ASFA S 12mm Full 304 Stainless Steel Worm Gear Hose Clamps (16.0mm-240.0mm)

Achieve the highest level of corrosion resistance and exceptional strength for your critical hose connections with Mikalor ASFA S 12mm Full 304 Stainless Steel Worm Gear Hose Clamps. Engineered entirely from premium 304 stainless steel, including both the band and the screw, these clamps are built to excel in the most demanding and corrosive environments. The wider ½" bandwidth delivers superior clamping force, perfectly suited for hoses ranging from 16.0mm to 240.0mm (0.63-9.44in).

Why Choose Mikalor ASFA S 12mm Full 304 Stainless Steel Worm Gear Hose Clamps?

  • Complete 304 Stainless Steel Construction: Band and screw are manufactured from high-grade 304 stainless steel for unparalleled corrosion resistance.
  • Maximum Corrosion Protection: Ideal for marine, chemical processing, food and beverage, and other severely corrosive environments.
  • Powerful 12mm Bandwidth: Provides exceptional clamping force and a wider contact area for a secure and reliable seal, especially on larger hoses.
  • Extensive Size Versatility: Accommodates a broad range of hose diameters from 16.0mm to 240.0mm (0.63-9.44in).
  • Smooth and Reliable Worm Gear: Enables easy, precise adjustment and ensures a consistently tight, leak-free connection.
  • Premium Quality for Critical Applications: Designed for long-term reliability and performance in the most demanding situations.

Ideally Suited For:

  • Marine and Coastal Applications
  • Chemical Handling and Processing
  • Food and Beverage Production
  • Pharmaceutical Industries
  • Any environment requiring the highest level of corrosion resistance

Experience Uncompromising Quality and Performance:

Mikalor ASFA S 12mm Full 304 Stainless Steel Worm Gear
Hose Clamps represent the ultimate in corrosion resistance and clamping power. The full 304 stainless steel construction offers superior protection against rust, pitting, and chemical degradation, ensuring years of reliable service. The wider ½" band provides the extra strength needed for larger or more rigid hoses, while the smooth worm gear mechanism allows for precise torque control, preventing over-tightening and ensuring a secure, leak-proof seal.

Key Features:

  • Material: Full 304 Stainless Steel (Band & Screw)
  • Bandwidth: 12mm
  • Size Range: 16.0mm-240.0mm (0.63-9.44in)
  • Type: Worm Gear Hose Clamp
  • Highest Level of Corrosion Resistance and Strength

For the absolute best in corrosion resistance and reliable clamping power for your larger hoses, choose Mikalor ASFA S 12mm Full 304 Stainless Steel Worm Gear Hose Clamps. Invest in quality and ensure lasting, leak-free connections. Order yours today!
