HCL | Pneumatic (Air) Installation Tool | For Ezyclik Polymer Hose Clamps | Suitable for Production Lines

HCL | Pneumatic (Air) Installation Tool | For Ezyclik Polymer Hose Clamps | Suitable for Production Lines

PHCT-J04-B02-H02

€608,22
€608,22
Sale Sold out

Out of stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu

Description

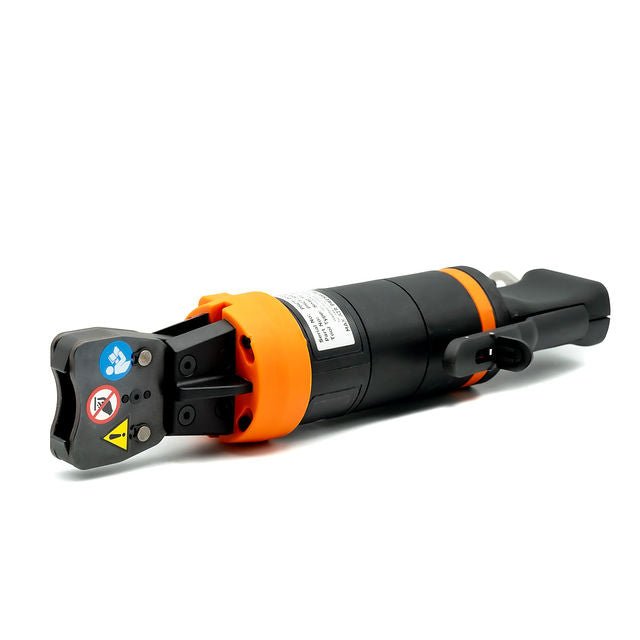

HCL Ezyclik-P Hose Clamp Air Tool - Fast & Audibly Confirmed Installation!. Ensure every connection is perfect with the HCL Ezyclik-P Hose Clamp Air Pneumatic Installation Tool, part number PHCT-J04-B02-H01. This specialized tool provides a fast, powerful, and audibly confirmed crimp, making the installation of Ezyclik-P clamps a simple, precise, and highly efficient process.

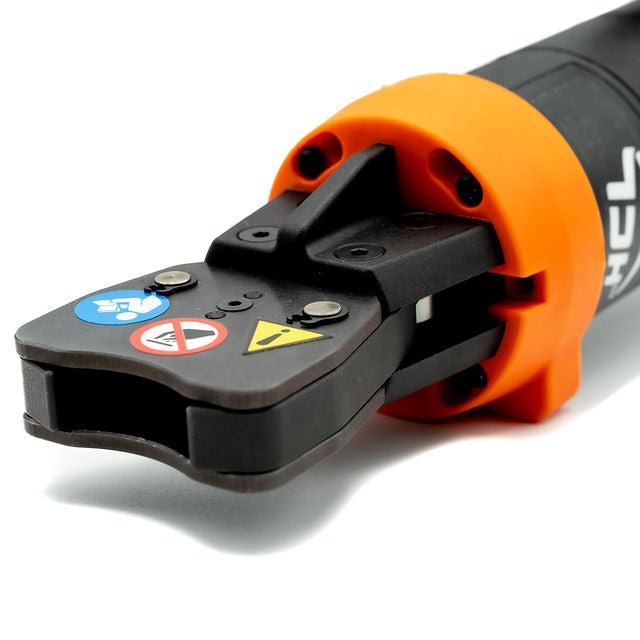

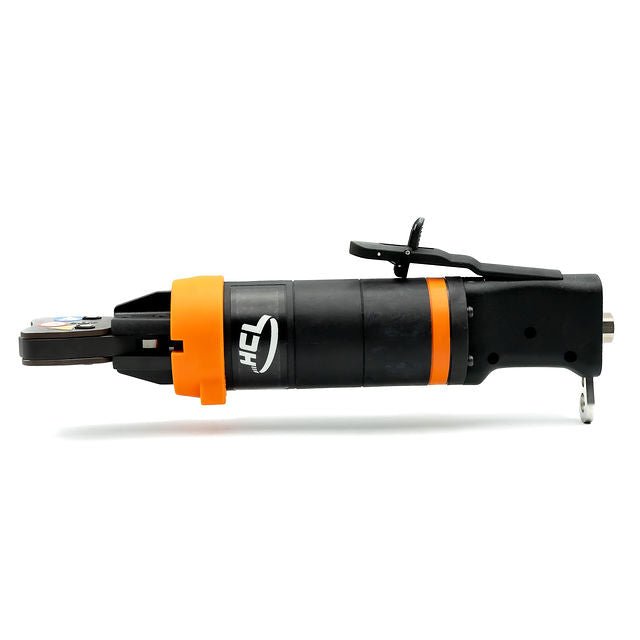

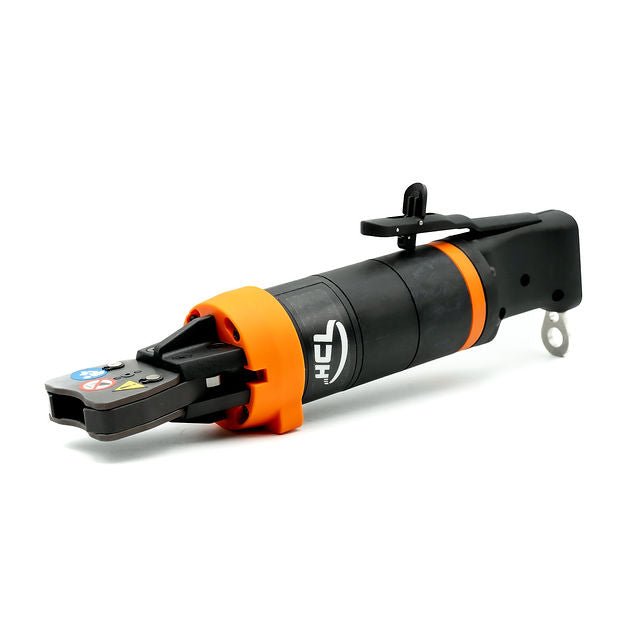

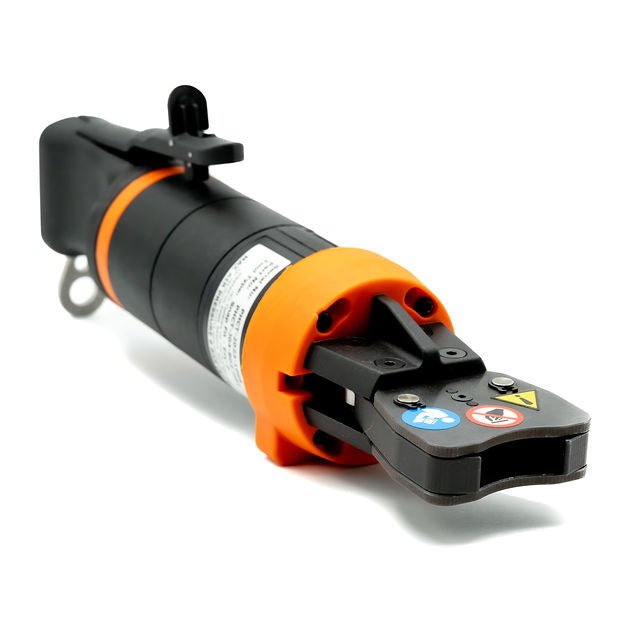

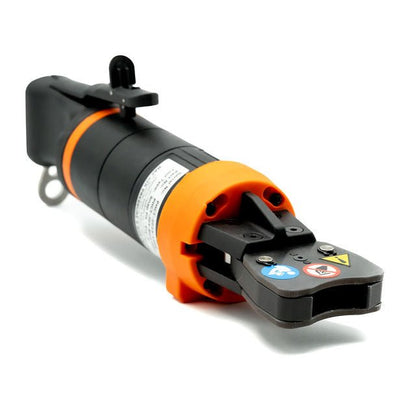

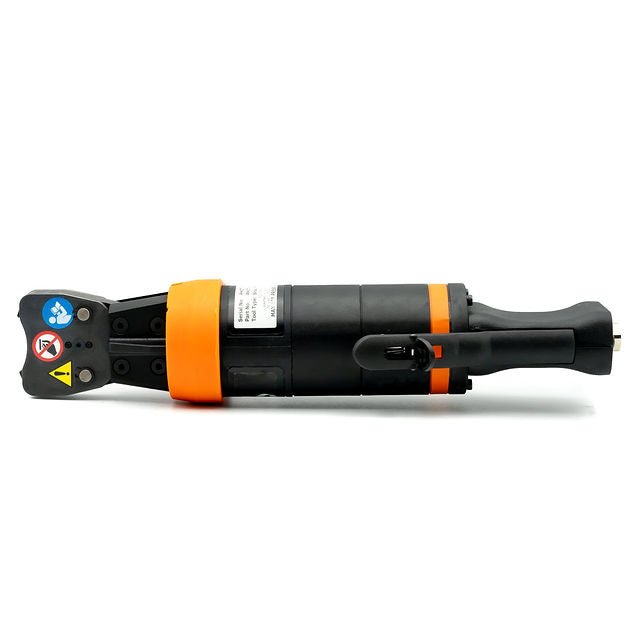

Calliper Jaw style tool able to install the Ezyclik-P Polymer snap fit Hose Clamp which is used for the installation of the HCL Ezyclick Polymer hose clamps or similar items. Pneumatic fitting tool to tighten Ezyclik™P plastic snap fit hose clamps. The tool comes with TPU protective bumper, 2 power modules and counterbalance hook. Closing force can be set by adjusting the incoming air pressure. Download the manual for configuration or contact us for further advice. Colour choice available on request.

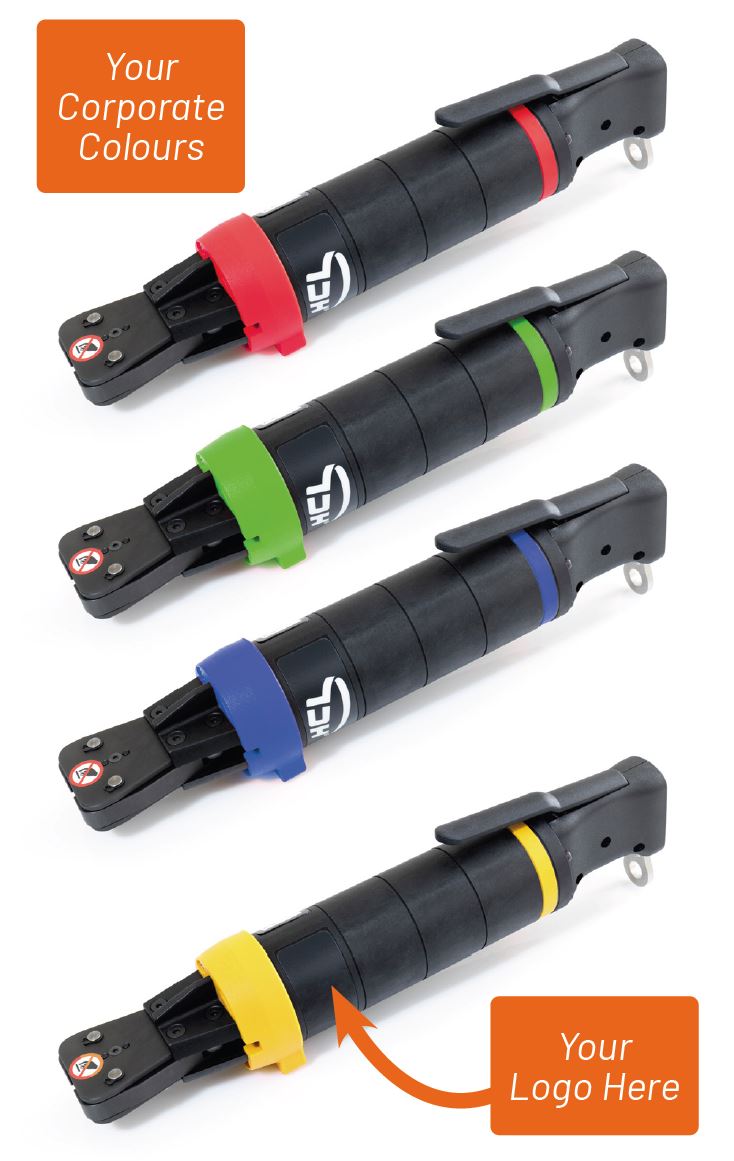

Affordable: HCL Air Tools are the most affordable in the market today. Branding Options: Colours & Logo can be changed to suit client requirements. Tested Durability: Tool design has been tested over many 100k cycles

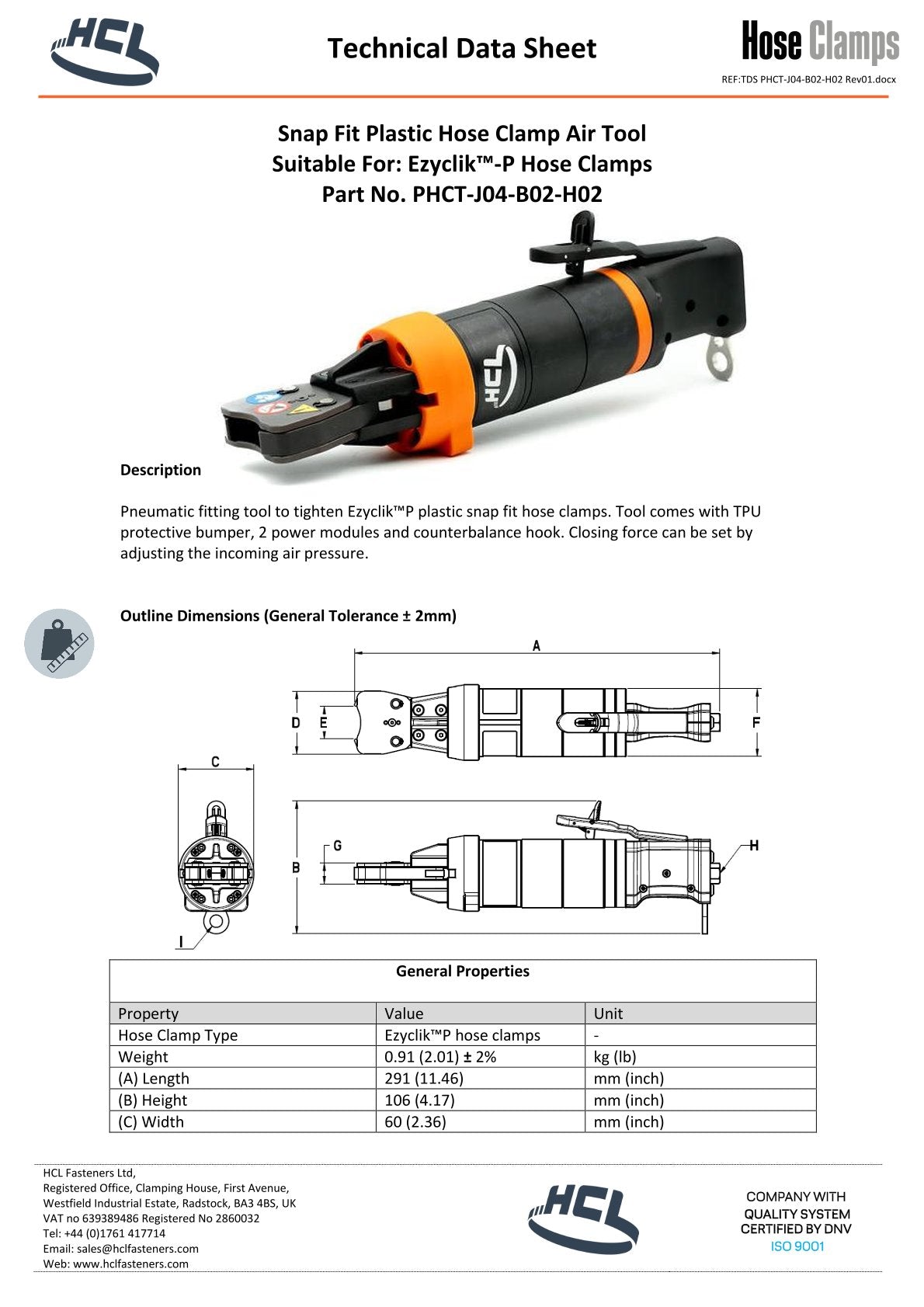

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N PHCT-J04-B02-H02
Series Ezyclik Polymer Hose Clamp Air Tool
Fitting Orientation Vertical
For use with HCL Ezyclik-P Hose Clamps
For use with Clamp 1 Ezyclik-P Hose Clamps
Tool Length 291.0mm (11.46in)
Tool Weight 1.0kg (2.2 lb)
Max Closure Force 1070 N (@ 6 Bar)
Jaw Width 50.0mm (1.97in)
Jaw Closing Range 2.0mm - 26.0mm (0.08in - 1.02in)
Air Inlet Thread Size 3.2mm (0.13in) in BSP
Country of Manufacture United Kingdom
Tariff Code 8203 40 00 00
CE Marked Yes
Hazardous Goods No
RoHS Compliant Yes

Why Choose This HCL Pneumatic Tool?

Audible "Click" Confirmation: A unique and crucial feature, this tool produces a clear audible "click" sound upon the successful completion of a crimp. This provides instant, unmistakable verification that the clamp has been fully closed and the connection is secure.

Designed for Ezyclik-P Clamps: The tool's jaws are expertly matched to the unique crimping mechanism of Ezyclik-P clamps, ensuring a perfect, repeatable crimp that is crucial for a leak-proof and permanent connection.

One-Handed, Pneumatic Operation: The tool's design allows the user to effortlessly crimp the clamp with a single pull of the trigger. This frees up the other hand for holding the assembly, dramatically increasing speed and efficiency on a production line.

Consistent and Reliable: Air power eliminates manual variation, providing a calibrated and repeatable closing force every single time. This consistency is vital for maintaining product quality and integrity in high-volume environments.

Lightweight and Ergonomic: The tool's comfortable design is built for all-day use, minimizing user fatigue during repetitive assembly tasks.

Perfect For:

  • Automotive Assembly and Manufacturing.
  • Appliance Production where Ezyclik-P clamps are used.
  • Any professional setting that requires a fast, reliable, and audibly confirmed solution for clamp installation.
  • High-volume assembly lines focused on quality control and efficiency.

Maximize your productivity and ensure flawless quality. Invest in the HCL Ezyclik-P Hose Clamp Air Tool and streamline your assembly process today!
