HCL | Smart Tie Cable Ties | Downhole | 19mm & 32mm Wide | PK Polymer Material

SKU:ST-20PK-600

€5,57

Sale Sold out

Out of stock

Quantity

Free standard shipping. Next day delivery available. Find out more

View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu

Scroll

Image	Clamp Dia mm ? Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.	Clamp Dia In ? Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.	Band Width ? Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.	Band Thk ? Band Thickness (in/mm): Indicates the physical thickness (height or depth) of the band, measured in inches or Millimetres.	Max System Str ? Max System Str: The overall maximum strength or working pressure limit of the assembled system.	HCL P/N ? HCL/ PN: The unique identifying number assigned to a part by HCL	2D PDF ? 2D PDF: A standard document format containing two-dimensional drawings.	2D DXF ? 2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.	3D STP ? 3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.	Price ? Price: The cost per unit
-	MIn 60.0mm -	2.36in -	19mm (0.75in) -	3.17mm (0.12in) -	603 kgf (1329 lbf) -	ST-20PK-600 -	-	-	-	€5,57
-	MIn 60.0mm -	2.36in -	19mm (0.75in) -	3.17mm (0.12in) -	603 kgf (1329 lbf) -	ST-20PK-750 -	-	-	-	€6,07
-	MIn 60.0mm -	2.36in -	32mm (1.25in) -	4.76mm (0.18in) -	1278 kgf (2818 lbf) -	ST-32PK-550 -	-	-	-	€9,20
-	MIn 60.0mm -	2.36in -	32mm (1.25in) -	4.76mm (0.18in) -	1278 kgf (2818lbf) -	ST-32PK-850 -	-	-	-	€12,04

Description

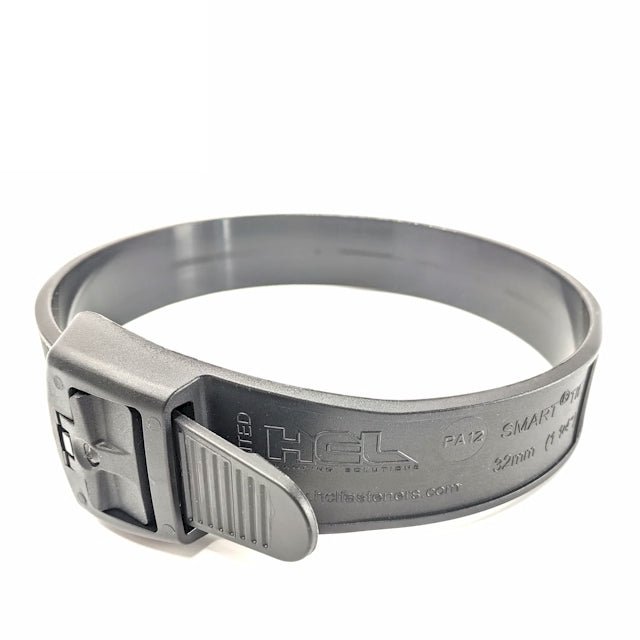

Smart® Tie incorporates the High Strength Tooth Feature of the Smart® Band Hybrid and Compact and creates the strongest Polymer Cable Tie in the World.

Smart® Tie is a patented heavy duty polymer tie wrap, able to withstand system loads in excess of 1200kgf.* It has the advantage of being manufactured from a range of high temperature polymers, giving it superior chemical and temperature resistance up to 175°C*. Lightweight and very easy to use the Smart® Tie has become the ideal downhole cable tie solution and compatibility with the Smart® Protector provides a complete solution for many downhole applications.

The PK material offers high strength and toughness along with excellent chemical resistance making it ideal for the downhole environment

Product Specification Sheet

Download

Specification

Manufactured By	HCL
HCL P/N	ST-PK
Series	HCL Smart Tie
Corrosion Resistance	Excellent
Band Material	Polyketone (PK)
Max Strength	2818 lbf
Max long Term Operating Temp	257°F (125°C)
Flammability	HB UL94 Self Extinguishing
Design Life (Outdoor use)	15+ years
Weathering & UV	Very Good
Chemical Resistance	Very Good
Colour	Black
Tool Compatibility	SM-FT-2000-19 & 32
Country of Manufacture	United Kingdom
Tariff Code	3917 40 00 99
RoHS Compliant	Yes

Smart Tie PK Straps | Polymer Downhole High-Strength Cable Straps (PEEK/Polyketone)

Engineered for the most demanding environments on earth, Smart Tie PK Straps are the critical solution for securing cables and control lines in oil and gas wellbores. Made from a high-performance Polyketone-class polymer, these straps offer an unmatched combination of extreme tensile strength, high temperature, and superior chemical resistance for reliable Downhole performance.

Why Choose These PK Downhole Straps?

Extreme Downhole Performance: The polymer material (Polyketone/PEEK-like) is specifically engineered to withstand the punishing conditions of high temperature, high pressure (HP/HT), and harsh chemical exposure (brines, sour gas) found deep within wellbores.

Exceptional High Tensile Strength: Despite being a polymer, the material offers outstanding mechanical strength and creep resistance, vital for maintaining cable integrity and resisting continuous vibration and tension in the wellbore.

Non-Corrosive & Chemically Inert: The material is completely non-corrosive and chemically inert to aggressive drilling fluids, production chemicals, and corrosive gases, guaranteeing a longer, more reliable service life than metal options in this environment.

Insulating & Non-Conductive: The polymer construction provides a vital insulating barrier for electrical submersible pump (ESP) cables and control lines, enhancing safety and operational integrity.

Quick & Reliable Installation: Designed for fast, secure manual application, these straps reduce the time and complexity of bundling and securing cables before they are lowered into the well.

Perfect For:

Oil and Gas Downhole Cable Securing (ESP power cables, gauges, control lines).
High-Temperature and High-Pressure (HP/HT) well applications.
Geothermal energy production environments.
Any application requiring ultimate strength and resistance to extreme heat and chemicals.

Do not compromise cable integrity in critical well operations. Order the Smart Tie PK Downhole Straps today and secure your high-performance assets!
