Mikalor | ASFA-L Worm Drive Hose Clamp | 9mm Embossed Band | W3 | 430SS Band | 304SS Screw

Mikalor | ASFA-L Worm Drive Hose Clamp | 9mm Embossed Band | W3 | 430SS Band | 304SS Screw

MIK-ASFA-L-W3-32

€1,00
€1,00
Sale Sold out

800 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

8.0 - 16.0mm - 0.31in - 0.63in - 9.0mm (0.35in) - MIK-ASFA-L-W3-16 - 03016014 - 3.0 Nm - 40 Bars - Good - Yes - €0,90 0
12.0mm - 22.0mm - 0.50in - 0.88in - 9.0mm (0.35in) - MIK-ASFA-L-W3-22 - 03016022 - 3.0 Nm - 40 Bars - Good - Yes - €0,95 0
16.0mm - 27.0mm - 0.63in - 1.00in - 9.0mm (0.35in) - MIK-ASFA-L-W3-27 - 03016030 - 3.5 Nm - 38 Bars - Good - Yes - €1,00 0
20.0mm - 32.0mm - 0.75in - 1.25in - 9.0mm (0.35in) - MIK-ASFA-L-W3-32 - 03016049 - 3.5 Nm - 36 Bars - Good - Yes - €1,00 800
25.0mm - 40.0mm - 1.00in - 0.50in - 9.0mm (0.35in) - MIK-ASFA-L-W3-40 - 03016065 - 4.0 Nm - 32 Bars - Good - Yes - €1,14 50
30.0mm - 45.0mm - 1.25in - 1.75in - 9.0mm (0.35in) - MIK-ASFA-L-W3-45 - 03016073 - 4.0 Nm - 28 Bars - Good - Yes - €1,17 0
32.0mm - 50.0mm - 1.25in - 2.00in - 9.0mm (0.35in) - MIK-ASFA-L-W3-50 - 03016081 - 4.0 Nm - 24 Bars - Good - Yes - €1,25 0
40.0mm - 60.0mm - 1.50in - 2.38in - 9.0mm (0.35in) - MIK-ASFA-L-W3-60 - 03016090 - 4.0 Nm - 19 Bars - Good - Yes - €1,34 0
50.0mm - 70.0mm - 2.00in - 2.75in - 9.0mm (0.35in) - MIK-ASFA-L-W3-70 - 03016102 - 4.0 Nm - 17 Bars - Good - Yes - €1,56 100
60.0mm - 80.0mm - 2.38in - 3.13in - 9.0mm (0.35in) - MIK-ASFA-L-W3-80 - 03016110 - 4.0 Nm - 15 Bars - Good - Yes - €1,66 0
70.0mm - 90.0mm - 2.75in - 3.50in - 9.0mm (0.35in) - MIK-ASFA-L-W3-90 - 03016129 - 4.0 Nm - 13 Bars - Good - Yes - €1,76 0
80.0mm - 100.0mm - 3.13in - 4.00in - 9.0mm (0.35in) - MIK-ASFA-L-W3-100 - 03016137 - 4.0 Nm - 11 Bars - Good - Yes - €1,83 0
90.0mm - 110.0mm - 3.50in - 4.25in - 9.0mm (0.35in) - MIK-ASFA-L-W3-110 - 03016145 - 4.0 Nm - 10 Bars - Good - Yes - €2,07 0
100.0mm - 120.0mm - 4.00in - 4.75in - 9.0mm (0.35in) - MIK-ASFA-L-W3-120 - 03016153 - 4.0 Nm - 9 Bars - Good - Yes - €2,08 0
110.0mm - 130.0mm - 4.25in - 5.13in - 9.0mm (0.35in) - MIK-ASFA-L-W3-130 - 03016161 - 4.0 Nm - 8 Bars - Good - Yes - €2,23 0
120.0mm - 140.0mm - 4.75in - 5.50in - 9.0mm (0.35in) - MIK-ASFA-L-W3-140 - 03016170 - 4.0 Nm - 7 Bars - Good - Yes - €2,42 0
130.0mm - 150.0mm - 5.13in - 6.00in - 9.0mm (0.35in) - MIK-ASFA-L-W3-150 - 03016188 - 4.0 Nm - 6 Bars - Good - Yes - €2,39 0
140.0mm - 160.0mm - 5.50in - 6.25in - 9.0mm (0.35in) - MIK-ASFA-L-W3-160 - 03016196 - 4.0 Nm - 5 Bars - Good - Yes - €2,47 0

Description

Thanks to the exclusive design of the housing and the high-strength screw, the ASFA LW1 Worm-Drive Clip has excellent performance while being at the same time very compact.
The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage.

DIN 3017. The ASFA LW3 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC. This clip is ideal for general industrial applications.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.

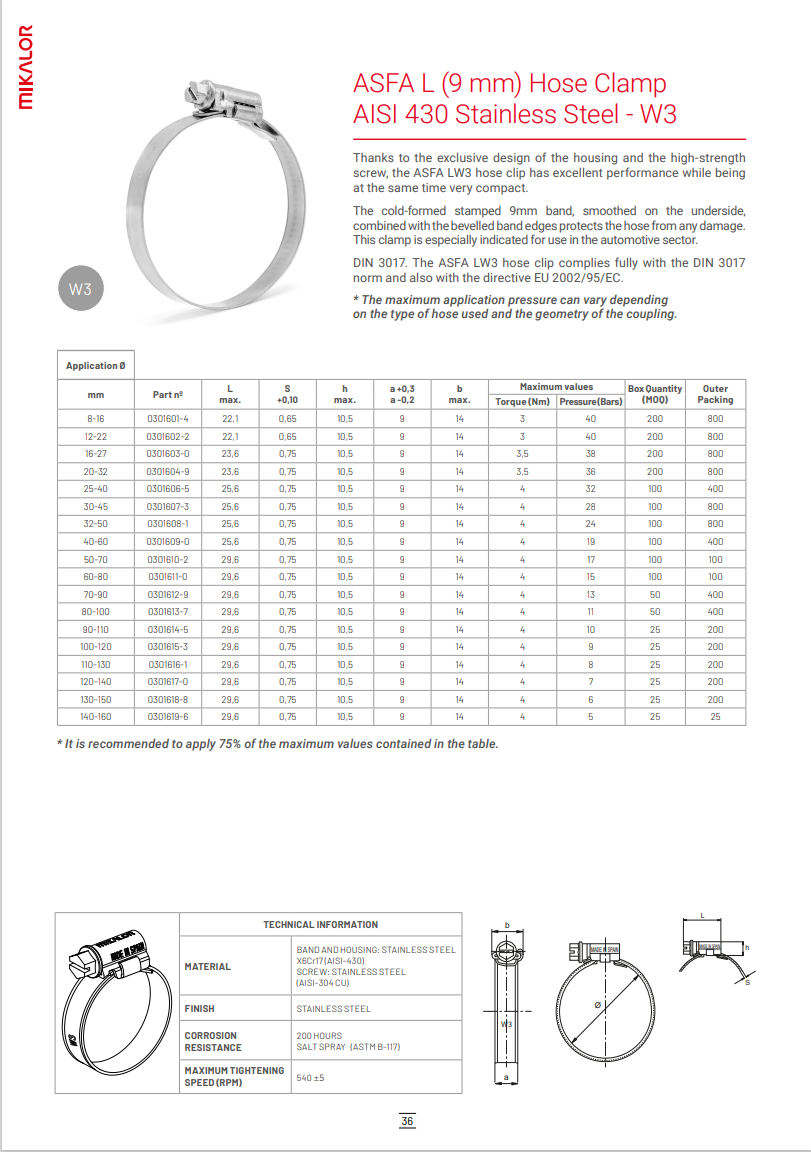

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N MIK-ASFA-L-W3-X
Series Mikalor ASFA L W3
Corrosion Resistance Good
Corrosion Specification 200 Hours Salt Spray (ASTM B-117)
Hose Clamp Width mm/in 9.0mm (0.35in)
Band Style Embossed Band
Band Material W3 430 Stainless Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material W4 304 Stainless Steel
Bolt/Screw Size 7.0mm (0.28in) A/F
Colour Silver
Max Tightening Speed RPM 540 +/-5
Specification 1 DIN 3017
Specification 2 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes
