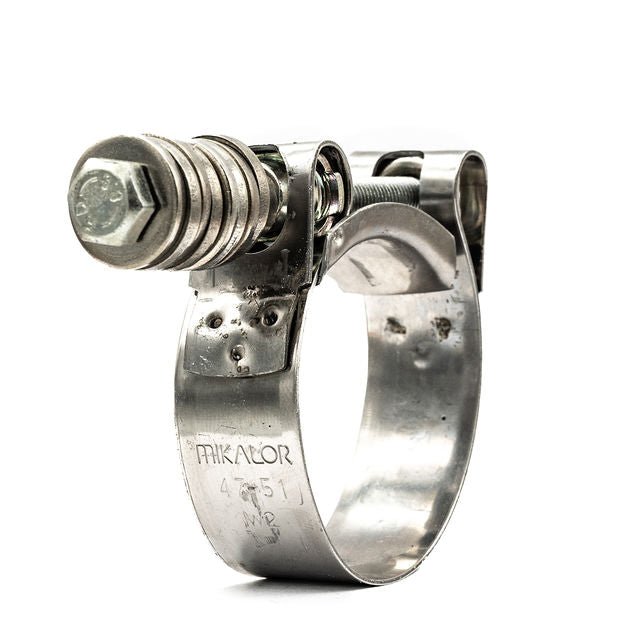

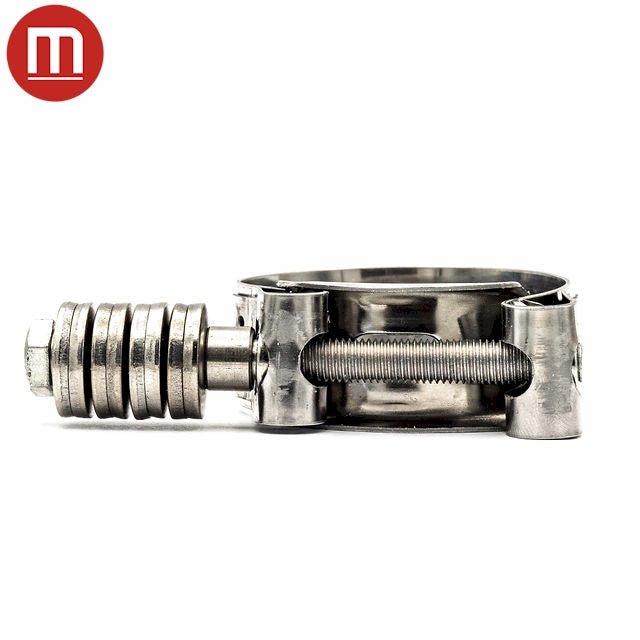

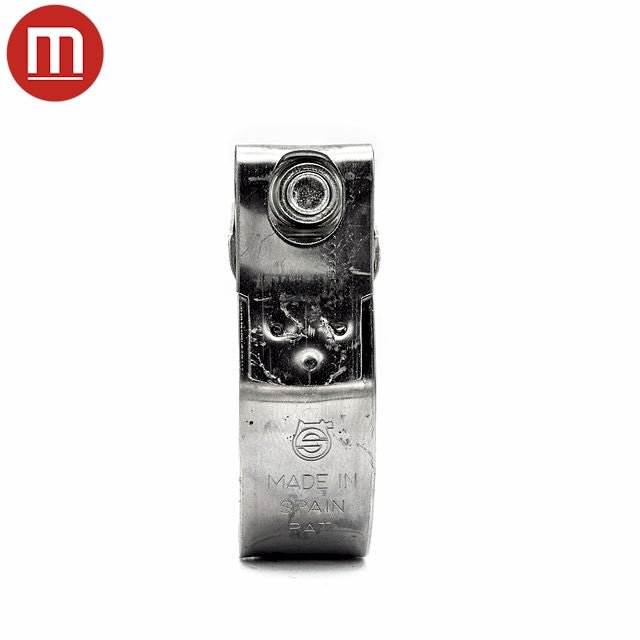

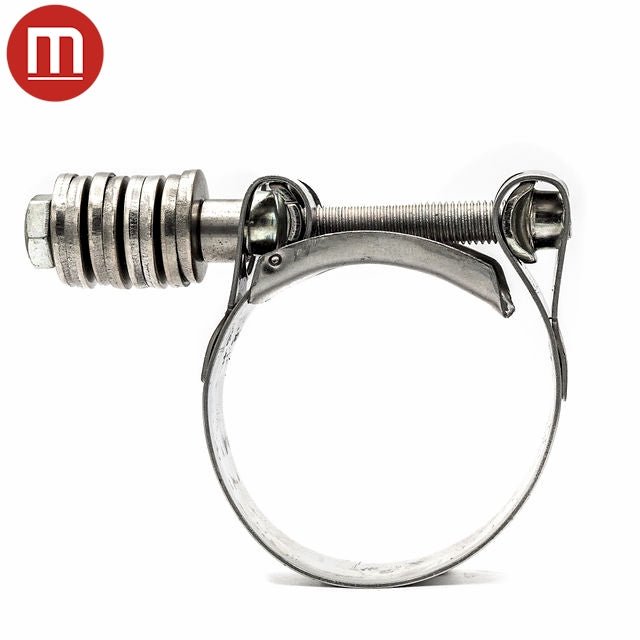

Mikalor | SUPRA Constant Tension Heavy Duty Hose Clamp | W2 430 Stainless Steel Band

Mikalor | SUPRA Constant Tension Heavy Duty Hose Clamp | W2 430 Stainless Steel Band

HD-SUPRA-17-W2

€13,27
€13,27
Sale Sold out

50 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Max Torq ?

Max Torque (Nm): The maximum rotational or twisting force, measured in Newton-metres
Max Pressure ?

Max Pressure (Bars): The maximum pressure a system or component is designed to withstand.
Bolt Size
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

17.0mm - 19.0mm - 0.67in - 0.75in - 18.0mm (0.70in) - HD-SUPRA-17-W2 - 03020100 - 4.5 Nm - 50 Bars - M6 - €13,27 50
19.0mm - 21.0mm - 0.75in - 0.83in - 18.0mm (0.70in) - HD-SUPRA-19-W2 - 03020118 - 4.5 Nm - 50 Bars - M6 - €5,49 100
21.0mm - 23.0mm - 0.83in - 0.91in - 18.0mm (0.70in) - HD-SUPRA-21-W2 - 03020126 - 4.5 Nm - 48 Bars - M6 - €5,51 0
23.0mm - 25.0mm - 0.91in - 0.98in - 18.0mm (0.70in) - HD-SUPRA-23-W2 - 03020134 - 4.5 Nm - 48 Bars - M6 - €5,54 0
25.0mm - 27.0mm - 0.98in - 1.06in - 18.0mm (0.70in) - HD-SUPRA-25-W2 - 03020142 - 4.5 Nm - 45 Bars - M6 - €5,86 20
27.0mm - 29.0mm - 1.06in - 1.14in - 18.0mm (0.70in) - HD-SUPRA-27-W2 - 03020150 - 4.5 Nm - 45 Bars - M6 - €6,23 0
29.0mm - 31.0mm - 1.14in - 1.22in - 20.0mm (0.78in) - HD-SUPRA-29-W2 - 03020169 - 8 Nm - 42 Bars - M7 - €8,01 0
31.0mm - 34.0mm - 1.22in - 1.34in - 20.0mm (0.78in) - HD-SUPRA-31-W2 - 03020177 - 8 Nm - 42 Bars - M7 - €8,11 50
34.0mm - 37.0mm - 1.34in - 1.46in - 20.0mm (0.78in) - HD-SUPRA-34-W2 - 03020185 - 8 Nm - 40 Bars - M7 - €8,25 25
37.0mm - 40.0mm - 1.46in - 1.57in - 20.0mm (0.78in) - HD-SUPRA-37-W2 - 03020193 - 8 Nm - 40 Bars - M7 - €8,27 0
40.0mm - 43.0mm - 1.57in - 1.69in - 20.0mm (0.78in) - HD-SUPRA-40-W2 - 03020206 - 8 Nm - 38 Bars - M7 - €9,53 0
43.0mm - 47.0mm - 1.69in - 1.85in - 20.0mm (0.78in) - HD-SUPRA-43-W2 - 03020214 - 10 Nm - 38 Bars - M7 - €10,43 0
47.0mm - 51.0mm - 1.85in - 2.01in - 20.0mm (0.78in) - HD-SUPRA-47-W2 - 03020222 - 10 Nm - 36 Bars - M7 - €10,58 50
51.0mm - 55.0mm - 2.01in - 2.17in - 20.0mm (0.78in) - HD-SUPRA-51-W2 - 03020230 - 10 Nm - 36 Bars - M7 - €10,66 50
55.0mm - 59.0mm - 2.17in - 2.32in - 20.0mm (0.78in) - HD-SUPRA-55-W2 - 03020249 - 10 Nm - 34 Bars - M7 - €10,77 25
59.0mm - 63.0mm - 2.32in - 2.48in - 20.0mm (0.78in) - HD-SUPRA-59-W2 - 03020257 - 10 Nm - 34 Bars - M7 - €10,80 15
63.0mm - 68.0mm - 2.48in - 2.68in - 20.0mm (0.78in) - HD-SUPRA-63-W2 - 03020265 - 10 Nm - 34 Bars - M7 - €10,91 15
68.0mm - 73.0mm - 2.68in - 2.87in - 25.0mm (0.98in) - HD-SUPRA-68-W2 - 03020273 - 25 Nm - 28 Bars - M8 - €19,41 0
73.0mm - 79.0mm - 2.87in - 3.11in - 25.0mm (0.98in) - HD-SUPRA-73-W2 - 03020281 - 25 Nm - 28 Bars - M8 - €19,57 10
79.0mm - 85.0mm - 3.11in - 3.35in - 25.0mm (0.98in) - HD-SUPRA-79-W2 - 03020290 - 25 Nm - 28 Bars - M8 - €19,73 15
85.0mm - 91.0mm - 3.35in - 3.58in - 25.0mm (0.98in) - HD-SUPRA-85-W2 - 03020302 - 25 Nm - 20 Bars - M8 - €19,89 15
91.0mm - 97.0mm - 3.58in - 3.82in - 25.0mm (0.98in) - HD-SUPRA-91-W2 - 03020310 - 25 Nm - 20 Bars - M8 - €20,04 15
97.0mm - 104.0mm - 3.82in - 4.09in - 25.0mm (0.98in) - HD-SUPRA-97-W2 - 03020329 - 25 Nm - 20 Bars - M8 - €22,80 0
104.0mm - 112.0mm - 4.09in - 4.41in - 25.0mm (0.98in) - HD-SUPRA-104-W2 - 03020337 - 25 Nm - 12 Bars - M8 - €23,27 25
112.0mm - 121.0mm - 4.41in - 4.76in - 25.0mm (0.98in) - HD-SUPRA-112-W2 - 03020345 - 25 Nm - 12 Bars - M8 - €23,46 10
121.0mm - 130.0mm - 4.76in - 5.12in - 25.0mm (0.98in) - HD-SUPRA-121-W2 - 03020353 - 25 Nm - 12 Bars - M8 - €23,67 0
130.0mm - 140.0mm - 5.12in - 5.51in - 28.0mm (1.10in) - HD-SUPRA-130-W2 - 03020361 - 50 Nm - 9 Bars - M10 - €37,51 0
140.0mm - 150.0mm - 5.51in - 5.91in - 28.0mm (1.10in) - HD-SUPRA-140-W2 - 03020370 - 50 Nm - 9 Bars - M10 - €37,76 0
150.0mm - 162.0mm - 5.91in - 6.38in - 28.0mm (1.10in) - HD-SUPRA-150-W2 - 03020388 - 50 Nm - 9 Bars - M10 - €38,03 0
162.0mm - 174.0mm - 6.38in - 6.85in - 28.0mm (1.10in) - HD-SUPRA-162-W2 - 03020396 - 50 Nm - 6 Bars - M10 - €38,31 0
174.0mm - 187.0mm - 6.85in - 7.36in - 28.0mm (1.10in) - HD-SUPRA-174-W2 - 03020409 - 50 Nm - 6 Bars - M10 - €38,59 0
187.0mm - 200.0mm - 7.36in - 7.87in - 28.0mm (1.10in) - HD-SUPRA-187-W2 - 03020417 - 50 Nm - 6 Bars - M10 - €38,89 0
200.0mm - 213.0mm - 7.87in - 8.39in - 28.0mm (1.10in) - HD-SUPRA-200-W2 - 03020425 - 50 Nm - 3 Bars - M10 - €39,19 0
213.0mm - 226.0mm - 8.39in - 8.90in - 28.0mm (1.10in) - HD-SUPRA-213-W2 - 03020433 - 50 Nm - 3 Bars - M10 - €39,48 0
226.0mm - 239.0mm - 8.90in - 9.41in - 28.0mm (1.10in) - HD-SUPRA-226-W2 - 03020441 - 50 Nm - 3 Bars - M10 - €44,21 0
239.0mm - 252.0mm - 9.41in - 9.92in - 28.0mm (1.10in) - HD-SUPRA-239-W2 - 03020450 - 50 Nm - 3 Bars - M10 - €44,78 0

Description

The Supra CT W2 clamp incorporates a bespoke bolt and a series of conical washers to the already outstanding Supra W2 clamp. This specialized version of the Supra W2 clamp is used in applications subject to vibration and/or great variations in temperature which can cause the components of a hose assembly to expand and contract. Thanks to the spring washer system, the Supra CT maintains constant pressure around the hose despite variations in temperature or vibration.

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N HD-SUPRA-X-W2
Series SUPRA Constant Tension W2
Corrosion Resistance Fair
Corrosion Specification 72 Hours Salt Spray (ASTM B-117)
Hose Clamp Width mm/in 18.0mm (0.71in) 20.0mm (0.79in) 25.0mm (0.98in) 28.0mm (1.10in)
Band Style Lined Band
Band Material W3 430 Stainless Steel
Band/Bridge Material 430 Stainless Steel
Bolt/Screw Type Hex Nut
Bolt/Screw Material W1 Zinc Plated Steel
Washers/Trunions Material Stainless Steel W4 AISI 304
Finish Stainless Steel
Colour Silver
Max Tightening Speed RPM 540 +/-5
Specification 1 EU Directive 2002/95/EC
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Heavy-Duty Constant Sealing: Mikalor SUPRA Hose Clamp with Constant Tension - 430 Stainless Steel Band (17.0-252.0mm)

Ensure exceptionally secure and consistently tight seals that adapt to dynamic conditions with the Mikalor SUPRA Heavy Duty Hose Clamp featuring Constant Tension. Engineered for demanding applications, this robust clamp utilizes a unique bolt and conical washer system to maintain optimal clamping force despite temperature variations and vibrations. Constructed with a durable 430 stainless steel band, it offers good corrosion resistance across a wide size range of 17.0mm to 252.0mm (0.66 - 9.92in). This heavy-duty clamp is the ideal solution for critical connections requiring unwavering performance.

Why Choose the Mikalor SUPRA Heavy Duty Hose Clamp with Constant Tension?

  • Automatic Constant Tension: The innovative bolt and conical washer system actively compensates for hose expansion and contraction due to temperature changes and vibrations, ensuring a consistently leak-free seal.
  • Heavy-Duty Performance: Designed for high-stress applications in combustion engines, tractors, trucks, and heavy equipment where reliability is paramount.
  • Durable 430 Stainless Steel Band: Offers good corrosion resistance and strength for demanding environments.
  • Wide Size Range: Covers a broad spectrum of diameters from 17.0mm to 252.0mm (0.66-9.92in), suitable for various heavy-duty hose and ducting applications.
  • Robust Construction: Engineered for long-lasting performance and resistance to loosening under challenging conditions.
  • Bevelled Band Edges: Prevent damage to the hose, ensuring a secure and durable hold without cutting or chafing.
  • High Clamping Force Capability: Designed to achieve high torque values for secure and reliable connections.

Perfect For:

  • Combustion Engines (Coolant Hoses, Air Intake Systems)
  • Heavy-Duty Vehicles (Trucks, Tractors, Construction Equipment)
  • Agricultural Machinery
  • Industrial Equipment Subject to Vibration and Temperature Fluctuations
  • Critical Connections Requiring Constant Sealing Pressure

Experience Unwavering Heavy-Duty Performance:

The Mikalor SUPRA Heavy Duty Hose Clamp with Constant Tension is engineered to provide a superior and reliable sealing solution for the most demanding applications. Its unique constant tension mechanism ensures that the clamping force remains optimal, preventing leaks and maintaining the integrity of the connection even under extreme operating conditions. The robust construction and durable 430 stainless steel band provide the strength and corrosion resistance needed for heavy-duty use. Trust the Mikalor SUPRA clamp for unwavering performance in your most critical systems.

Key Features:

  • Material: 430 Stainless Steel Band with High-Strength Bolt and Conical Washers (typically 8.8 Grade Steel and 304 Stainless Steel Washers/Trunnions)

  • Type: Heavy Duty Hose Clamp with Constant Tension
  • Bandwidth: Heavy Duty (Specific width may vary slightly by size range)
  • Size Range: 17.0mm-252.0mm (0.66-9.92in)
  • Automatic Constant Tension for a Leak-Free Seal
  • Heavy-Duty Construction for Demanding Applications
  • Bevelled Band Edges to Protect Hoses

For the ultimate in heavy-duty, constant tension sealing performance in demanding applications, choose the Mikalor SUPRA Hose Clamp. Ensure the reliability and longevity of your critical connections – order yours today!
