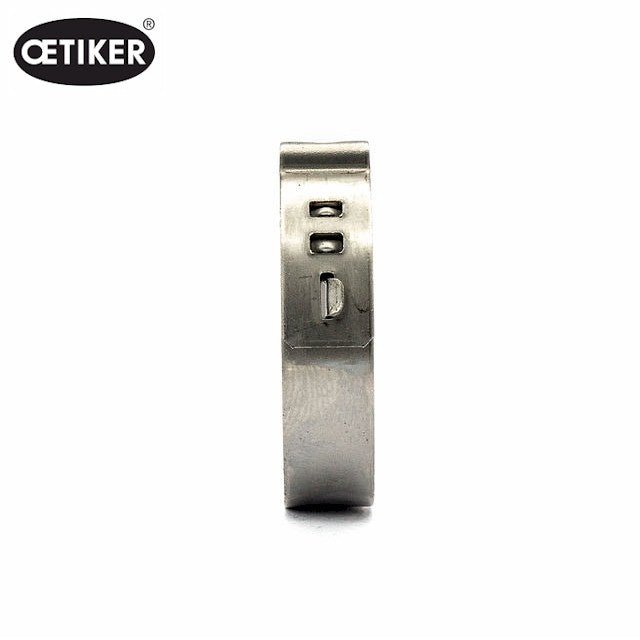

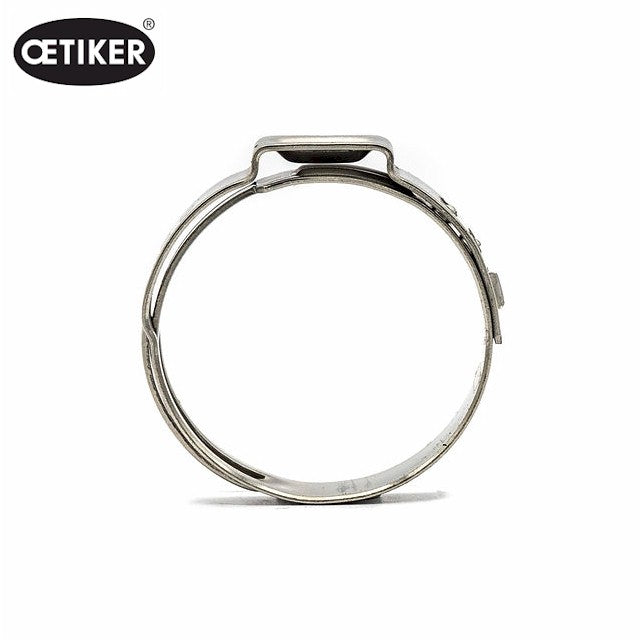

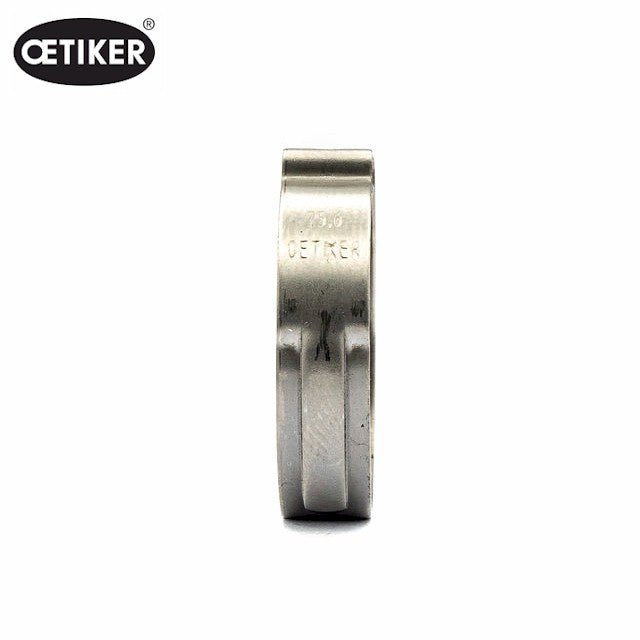

Oetiker | Stepless Ear (Pinch) Hose Clamps | 5mm Band Width | W4 304 Stainless Steel Band

Oetiker | Stepless Ear (Pinch) Hose Clamps | 5mm Band Width | W4 304 Stainless Steel Band

STEPLESS-5.8-7.0-304SS

€0,62
€0,62
Sale Sold out

2000 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5.3mm - 6.5mm - 0.21in - 0.26in - 5.0mm (0.20in) - 16702488 - STEPLESS-5.3-6.5-304SS - 304SS - Very Good - No - €0,60 0
5.8mm - 7.0mm - 0.23in - 0.28in - 5.0mm (0.20in) - 16700001 - STEPLESS-5.8-7.0-304SS - 304SS - Very Good - No - €0,62 2000
6.3mm - 7.5mm - 0.25in - 0.30in - 5.0mm (0.20in) - 16706953 - STEPLESS-6.3-7.5-304SS - 304SS - Very Good - No - €0,63 2000
6.8mm - 8.0mm - 0.27in - 0.31in - 5.0mm (0.20in) - 16700002 - STEPLESS-6.8-8.0-304SS - 304SS - Very Good - No - €0,65 2000
7.0mm - 8.7mm - 0.28in - 0.34in - 5.0mm (0.20in) - 16700003 - STEPLESS-7.0-8.7-304SS - 304SS - Very Good - No - €0,66 2000
7.3mm - 9.1mm - 0.29in - 0.36in - 5.0mm (0.20in) - 16702491 - STEPLESS-7.3-9.1-304SS - 304SS - Very Good - No - €0,68 1000
7.8mm - 9.5mm - 0.31in - 0.37in - 5.0mm (0.20in) - 16700004 - STEPLESS-7.8-9.5-304SS - 304SS - Very Good - No - €0,69 200
8.3mm - 10.0mm - 0.33in - 0.39in - 5.0mm (0.20in) - 16700005 - STEPLESS-8.3-10.0-304SS - 304SS - Very Good - No - €0,71 200
8.8mm - 10.5mm - 0.35in - 0.41in - 5.0mm (0.20in) - 16700006 - STEPLESS-8.8-10.5-304SS - 304SS - Very Good - No - €0,72 2000
9.2mm - 10.9mm - 0.36in - 0.43in - 5.0mm (0.20in) - 16702492 - STEPLESS-9.2-10.9-304SS - 304SS - Very Good - No - €0,74 2000
9.6mm - 11.3mm - 0.38in - 0.44in - 5.0mm (0.20in) - 16700007 - STEPLESS-9.6-11.3-304SS - 304SS - Very Good - No - €0,75 500
10.1mm - 11.8mm - 0.40in - 0.46in - 5.0mm (0.20in) - 16700008 - STEPLESS-10.1-11.8-304SS - 304SS - Very Good - No - €0,77 1000

Description

At 5.0mm wide, The Oetiker Stepless narrow band concentrates the transmission of clamping force into a uniform compression and surface pressure. The clamp ear compensates for component intolerances with adjustable surface pressure whilst the dimple increases the clamping force with a spring-effect compensating for changes in diameter caused by thermal expansion. The specially formed strip edges reduce risk of damage to clamped parts.

Product Specification Sheet

Download

Specification

Manufactured By Oetiker
HCL P/N STEPLESS-X-304SS
Series Stepless 167
Corrosion Resistance Excellent
Corrosion Specification >1000 hours DIN EN ISO 9227
Hose Clamp Width mm/in 5.0mm (0.20in)
Band Material W4 304 Stainless Steel
Finish Stainless Steel
Colour Silver
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Stop leaks and ensure reliable connections with genuine 5mm Oetiker Stepless Ear Pinch Hose Clamps, crafted from premium 304 Stainless Steel. Engineered for superior performance and corrosion resistance, these clamps deliver a uniform, 360° seal, eliminating leak paths and providing unmatched holding power.

Why Choose Oetiker Stepless Ear Pinch Hose Clamps?

  • True 360° Stepless Design: Unlike traditional clamps, Oetiker's innovative stepless design eliminates steps and overlaps, ensuring a consistent radial compression and a leak-free seal around the entire circumference of the hose.
  • Premium 304 Stainless Steel: Built to withstand harsh environments, these clamps offer exceptional resistance to corrosion, rust, and chemicals, guaranteeing long-lasting performance in demanding applications.
  • Superior Holding Power: The unique ear pinch design provides a powerful and secure grip, preventing hose slippage and ensuring reliable connections under pressure and vibration.
  • Easy Installation: Simple and efficient installation with Oetiker pincers or side cutters. Achieve a professional-grade seal in seconds.
  • Versatile Applications: Ideal for a wide range of applications, including automotive, industrial, marine, plumbing, HVAC, and more. Secure fuel lines, coolant hoses, air hoses, and more with confidence.
  • Precise Sizing: Available in a comprehensive range of sizes to perfectly match your hose and fitting requirements.
  • Made for Durability: Engineered for long life and repeated use.

Perfect For:

  • Automotive Repairs & Maintenance (Fuel Lines, Coolant Hoses, Vacuum Lines)
  • Industrial Fluid & Air Handling Systems
  • Marine Applications (Saltwater Resistant)
  • Plumbing & HVAC Installations
  • DIY Projects & Home Repairs
  • Any application requiring a reliable and leak-free hose connection.

Invest in the best. Invest in Oetiker Stepless Ear Pinch Hose Clamps. Experience the difference of a truly reliable and leak-free hose connection. Browse our extensive selection of sizes and order yours today!
