Constant Tension Hose Clamps: Consistent Clamping Force Through Thermal Cycling

Constant tension hose clamps are the engineered solution to the most common cause of hose connection seal failure over time: the progressive loss of clamping force caused by thermal cycling, hose material creep, and stress relaxation in fixed-tension clamps. Their integrated spring mechanism — typically a Belleville (conical disc) washer incorporated into the screw assembly — automatically compensates for changes in hose diameter, maintaining consistent radial sealing pressure regardless of temperature fluctuation or hose material relaxation across the service life of the connection.

In applications ranging from automotive cooling systems to industrial boilers, HVAC heating circuits, and pharmaceutical CIP/SIP systems — wherever a hose connection experiences repeated temperature cycling — constant tension clamps are the correct specification, and a fixed worm drive clamp is the wrong one.

Why Fixed Worm Drive Clamps Fail in Thermally Cycling Applications

A standard worm drive clamp provides a fixed clamping force set at installation. In thermally cycling applications, two mechanisms progressively reduce this clamping force over time:

• Thermal cycling: As the hose heats up, the rubber or polymer material expands — temporarily increasing the sealed contact pressure. As it cools, the hose contracts and the fixed-diameter band cannot follow — the clamp is now looser than at installation. Each cycle leaves the band slightly less tight than before, as the hose material is unable to fully return to its original dimensions. Over hundreds or thousands of heat/cool cycles, this produces a measurable and progressive reduction in clamping force.
• Cold flow and stress relaxation: Rubber and elastomeric hose materials creep (deform permanently) under sustained compressive load at operating temperature. The hose OD at the clamp position reduces slightly as the material flows under the band's radial pressure — the fixed band is now larger than the hose, reducing clamping force. This is cold flow, and it occurs independently of thermal cycling.

A constant tension clamp eliminates both mechanisms. Its spring automatically adjusts band diameter as the hose expands and contracts — absorbing the dimensional changes rather than translating them into lost clamping force. The spring also compensates for cold flow by continuously tracking the reducing hose OD.

HCL's Constant Tension Clamp Range

Mikalor Constant Pressure Heavy-Duty Spring Clamp — General Purpose

The Mikalor Constant Pressure Heavy-Duty Spring Clamp covers 12–58mm diameter in a 1/2" (12mm) wide band format — the general-purpose constant tension worm drive for automotive cooling, heating system, and industrial thermal cycling applications. The 12mm band distributes clamping force over a wider hose surface than narrow-band designs, providing better hose protection under sustained spring pressure. This is the standard recommendation throughout this glossary for automotive cooling hose connections, boiler and heat pump flow/return connections, and HVAC heating circuit hose connections.

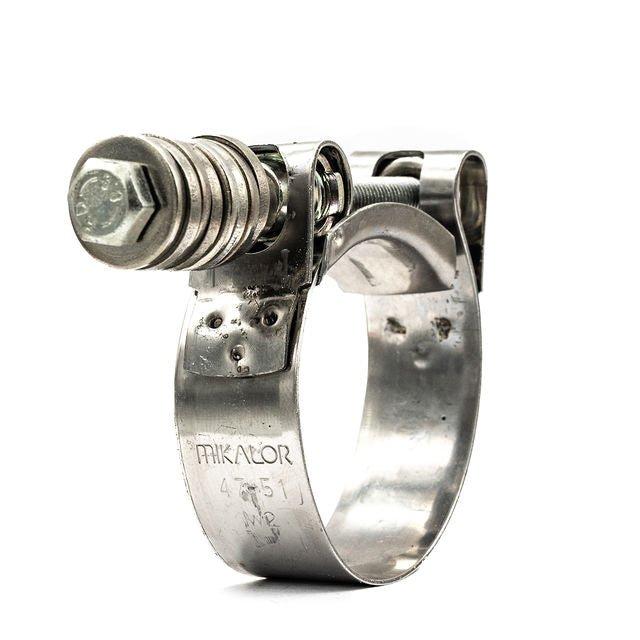

Mikalor Supra with Constant Tension — Heavy-Duty T-Bolt with Spring

The Mikalor Heavy-Duty Supra with Constant Tension combines the T-bolt design's high clamping force with the Belleville spring's constant tension compensation — the correct specification for large-diameter, high-pressure hose connections in thermally cycling systems where a standard worm drive spring clamp's lower clamping force is insufficient. The 430SS band provides the spring properties required for the Belleville washer mechanism to function correctly across the operating temperature range. Specified for industrial process equipment, large-bore engine cooling connections, and high-pressure thermal cycling circuits where both maximum clamping force and thermal compensation are simultaneously required.

Norma Cobra Snap-Fit with Constant Tension Spring — Rapid Installation

The Norma Cobra Snap-Fit with Constant Tension Spring in 304SS combines the Norma Cobra's snap-fit installation (compress-and-release with pliers, no screwdriver) with an integrated spring that provides inherent constant tension behaviour. The correct specification for automotive OEM production line applications where constant-tension protection is required alongside the rapid, operator-independent installation speed of the snap-fit format — eliminating both the re-tightening maintenance overhead of fixed worm drives and the installation time of standard screw-tightened constant tension designs.

Constant Tension vs Standard Worm Drive: The Key Specification Decision

System Characteristic	Standard Worm Drive	Constant Tension Clamp
Temperature cycling significant?	❌ Fixed force — loses tension over cycles	✓ Spring compensates — force maintained
Hose material is elastomeric?	❌ Cold flow reduces clamping force	✓ Spring tracks hose OD reduction
Connection maintenance access?	✓ Re-tightenable — but requires scheduled re-tightening	✓ Adjustable — but no re-tightening needed
Stable temperature, no cycling?	✓ Correct and cost-effective	Overkill — standard worm drive sufficient
Long service life without maintenance?	❌ Seal integrity degrades over cycles	✓ Maintains seal indefinitely

Key Applications Across Industries

• Automotive cooling and heating systems: Radiator hoses, heater matrix connections, coolant bypass hoses — the most common application; constant tension clamps are the OEM standard for all automotive thermal cycling connections
• HVAC and boiler connections: Central heating flow/return hose connections, heat pump connections, boiler flexible connectors — daily thermal cycling from cold to operating temperature (70–90°C) requires constant tension rather than fixed worm drive
• Pharmaceutical CIP/SIP systems: Clean-in-Place and Steam-in-Place flexible connections cycle from ambient to 80–90°C (CIP) and 121–134°C (SIP) — constant tension maintains sealing pressure through these extreme thermal cycles, eliminating weeping connections in GMP-controlled areas
• Industrial process equipment: Heat exchanger connections, reactor cooling circuits, and thermal fluid system connections where significant temperature variation is normal operating condition
• Power generation cooling systems: Generator and turbine cooling water connections experiencing large temperature differentials between standby and full-load operation
• Renewable energy: Inverter cooling, wind turbine nacelle cooling, and solar thermal collector connections — wide ambient-to-operating temperature ranges in installations that may be unmaintained for extended periods
• Domestic plumbing: Boiler flexible connectors, unvented cylinder connections — thermal cycling in household hot water systems that will not be inspected between service visits

Material Specification

Constant tension clamp band material selection follows the same W-grade principles as standard clamps, with one additional consideration: the spring mechanism material must maintain its elastic properties across the application temperature range:

• 304SS (W4) band and spring: Standard specification for automotive, HVAC, and general industrial thermal cycling applications — 304SS stainless retains adequate spring properties up to approximately 150°C continuous service. Mikalor heavy-duty spring range; Norma Cobra snap-fit with spring.
• 430SS band: Used in the Mikalor Supra with Constant Tension heavy-duty range — 430SS (ferritic stainless) is specified for the band in this design for its superior spring return characteristics in the Belleville washer mechanism, providing more consistent constant tension behaviour through larger temperature cycles. Note that 430SS has lower corrosion resistance than 304SS in chloride environments — specify accordingly.

Selection Criteria

• Temperature range: Confirm the clamp's rated temperature range covers the application's full operating cycle — from minimum ambient (cold start) to maximum operating temperature. See our temperature range guide.
• Diameter sizing: The clamp must be sized for the assembled hose-on-fitting OD at ambient temperature — the spring mechanism then extends to follow the hose as it expands under heat. Measure at ambient, not at operating temperature.
• Band width: Wider bands (12mm) distribute spring clamping force over a larger hose surface, reducing localised pressure on soft hose material. Appropriate for soft silicone and EPDM hoses common in automotive and heating applications.
• Installation format: Screw-tightened (Mikalor heavy-duty) for service-access connections; snap-fit (Norma Cobra) for production line rapid installation; heavy-duty T-bolt (Mikalor Supra) for large-diameter high-pressure thermal cycling connections.

Installation Best Practices

• Do not over-tighten: The spring mechanism operates within a defined compression range — tighten to the manufacturer's specified installation position, not to maximum torque. Over-tightening compresses the Belleville spring beyond its working range, eliminating the constant tension function and potentially damaging the spring permanently.
• No re-tightening required: The spring self-compensates — re-tightening after initial installation is neither required nor recommended unless the clamp has been loosened for maintenance access.
• Inspect spring condition: Include the spring element in scheduled maintenance inspections — replace any constant tension clamp showing permanent spring deformation (the clamp feels loose but the screw is fully tightened), as the Belleville spring has yielded and lost its compensation function.

Conclusion

Constant tension clamps are the correct specification whenever thermal cycling is present — which includes every automotive cooling connection, every boiler and heat pump flexible connection, every HVAC heating circuit hose, and every CIP/SIP flexible connection. A standard fixed worm drive clamp in these applications will progressively lose sealing force and develop slow leaks; a constant tension clamp maintains consistent sealing pressure indefinitely. Browse HCL's full constant tension hose clamp collection including the Mikalor heavy-duty spring clamp, Mikalor Supra with constant tension, and Norma Cobra snap-fit, or contact our technical team for constant tension clamp selection advice for your specific application.
