HCL | Fibbia | Smart Band Flex (sistema di cinturini PIM) | Larghezza 12,7 mm | Acetal POM | Approvato Telcordia

HCL | Fibbia | Smart Band Flex (sistema di cinturini PIM) | Larghezza 12,7 mm | Acetal POM | Approvato Telcordia

SB-BU-FX-1/2-LH-POM-50

€12,72
€12,72
Vendita Esaurito
Spese di spedizione calcolate al momento del pagamento.

Esaurito
Visualizza tutti i dettagli

Hai bisogno di consigli? Rivolgiti al nostro team di assistenza clienti esperto.

Chiama

TBC
Dal lunedì al venerdì dalle 8:00 alle 16:00

E-mail

sales@hcl-clamping.eu

Descrizione

Il sistema di fascette in polimero Smart® Band Flex è un prodotto di alta qualità che soddisfa o supera lo standard Telcordia TR-TSY-00789, garantendo prestazioni e affidabilità di prim'ordine. Realizzata in resistente materiale acetalico di colore nero, questa fascetta intelligente offre una resistenza superiore alla luce solare (UV), all'umidità e agli ambienti marini, rendendola ideale per l'uso all'aperto. Con un'impressionante durata prevista all'aperto di oltre 20 anni, questo prodotto è progettato per durare nel tempo.

Scheda tecnica del prodotto

Scarica

Specifiche

Prodotto da HCL Clamping USA
Codice HCL SB-BU-FX-1/2-LH-POM
Serie HCL Smart Band Flex
Resistenza alla corrosione Eccellente
Materiale della fascia Acetalica POM
Massima resistenza 214.10kgf (472 lbf)
Temperatura massima di esercizio a lungo termine 95 °C (203 °F)
Temperatura di installazione consigliata Standard
Infiammabilità HB UL94 Autoestinguente
Colore Nero
Da utilizzare con Smart Band Flex Banding
Paese di fabbricazione Regno Unito
Codice tariffario 3917 40 00 99
Merci pericolose No
Conforme alla direttiva RoHS Sì

Smart Band Flex Polymer Buckle (12.7mm) | Acetal POM for Consistent Tension & Flexibility

Designed for use with thin-gauge or flexible strapping (PIM Strap), the Smart Band Flex Polymer Buckle provides secure, non-corrosive fastening in a small format. Made from precision Acetal (POM) polymer, this 12.7mm buckle ensures superior dimensional stability and high resistance to creep, maintaining tension reliability over time.

Why Choose This POM Flex Buckle?

High Stiffness and Creep Resistance (Acetal POM): Utilizing Acetal (POM), this buckle delivers exceptional stiffness and superior resistance to creep (material deformation under continuous load). This guarantees that the tension applied to the flexible 12mm banding is consistently held, ensuring a secure, long-lasting connection.

Low Friction Installation: The naturally low coefficient of friction of the Acetal material allows the 12mm strap to slide smoothly during tensioning, helping technicians achieve uniform, precise tension without binding or damaging the flexible strapping.

12.7mm Small Format: perfectly sized for small diameter bundles, lightweight signage, or applications where space is extremely limited and a minimal fastening footprint is required. Imperial: - 0.50in

Non-Corrosive & Non-Conductive: The polymer construction is entirely immune to rust, corrosion, and is non-conductive, making it a safe and ideal choice for electrical and chemical processing environments.

Optimized for Flexible Strapping (PIM): This buckle is engineered to complement flexible (Flex/PIM) banding, completing a lightweight, high-performance, non-metallic system that is easy to install.

Perfetto per:

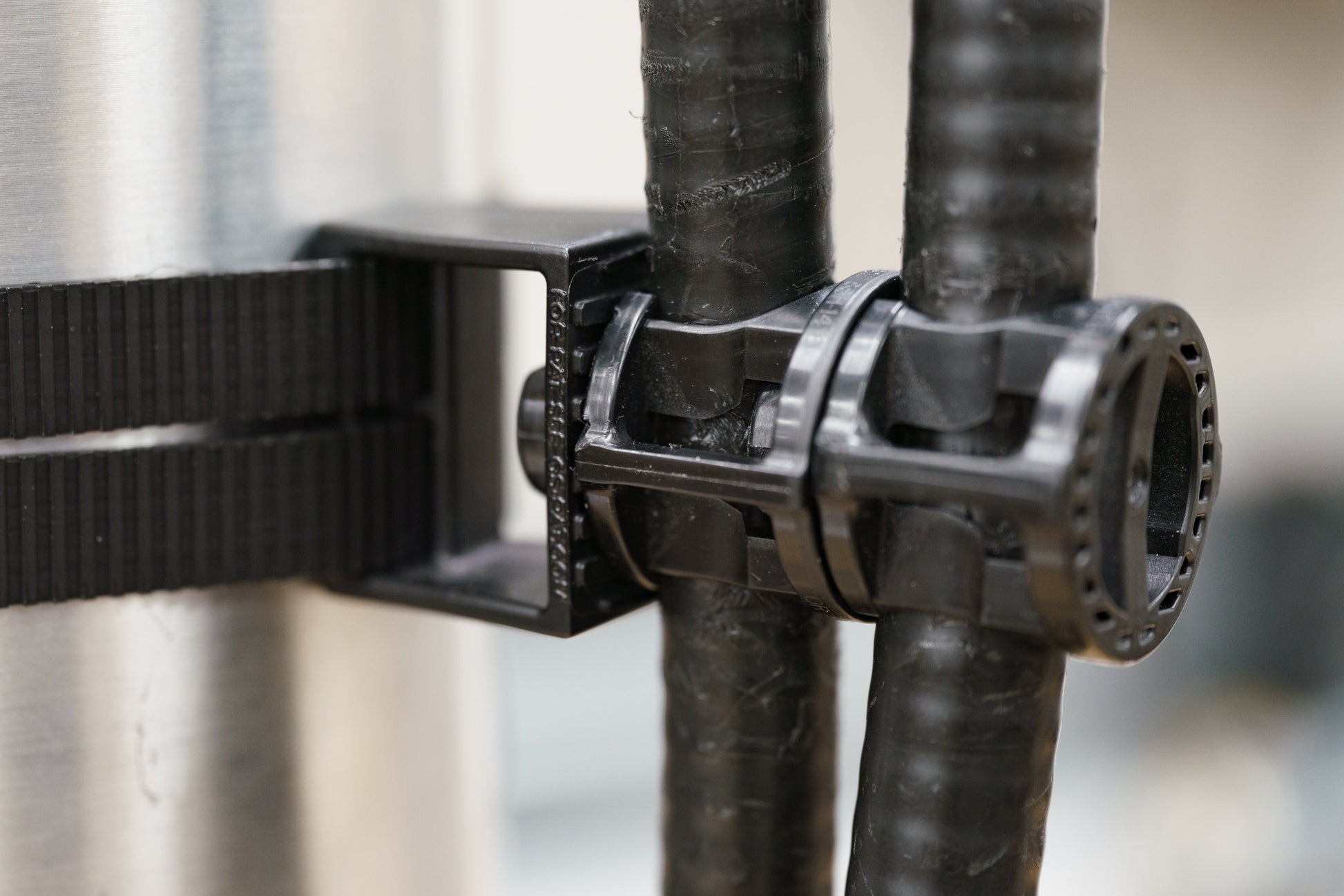

  • Bundling small-diameter cables and hoses with flexible strapping.
  • Lightweight signage and fixture mounting requiring a minimal footprint.
  • Telecommunications and electrical applications where non-conductivity is vital.
  • Industrial maintenance where small, corrosion-resistant clamps are needed.

For stable tension on flexible materials, trust the mechanical precision of Acetal. Order the Smart Band Flex Polymer Buckle today!
