HCL | Utensile pneumatico (ad aria) | Per fascette metalliche a scatto (Cobra, Clic) | Adatto per linee di produzione

HCL | Utensile pneumatico (ad aria) | Per fascette metalliche a scatto (Cobra, Clic) | Adatto per linee di produzione

PHCT-J03-B02-H02

€964,61
€964,61
Vendita Esaurito
Shipping calculated at checkout.

Esaurito
Visualizza tutti i dettagli

Hai bisogno di consigli? Rivolgiti al nostro team di assistenza clienti esperto.

Chiama

TBC
Dal lunedì al venerdì dalle 8:00 alle 16:00

E-mail

sales@hcl-clamping.eu

Descrizione

HCL Metal Snap-Fit Hose Clamp Air Tool - Effortless & Secure Installation! Revolutionize your assembly process for metal snap-fit clamps with the specialized HCL Air Pneumatic Installation Tool, part number PHCT-J03-B02-H02. Engineered to provide a fast, secure, and one-handed solution, this tool makes the installation of snap-fit clamps a simple and highly efficient task.

Calliper Jaw style tool able to install a variety of steel Snap-Fit Clamps including, Ezyclick-M, Ezyclik-M+, Norma Cobra, Mikalor Clip Clamp, Caillau Clic Clamp. Use the Pneumatic fitting tool to tighten metallic snap fit hose clamps. Tool comes with TPU protective bumper, 2 power modules and counterbalance hook. Closing force can be set by adjusting the incoming air pressure. Download the manual for configuration or contact us for further advice on how to use this tool for your requirements

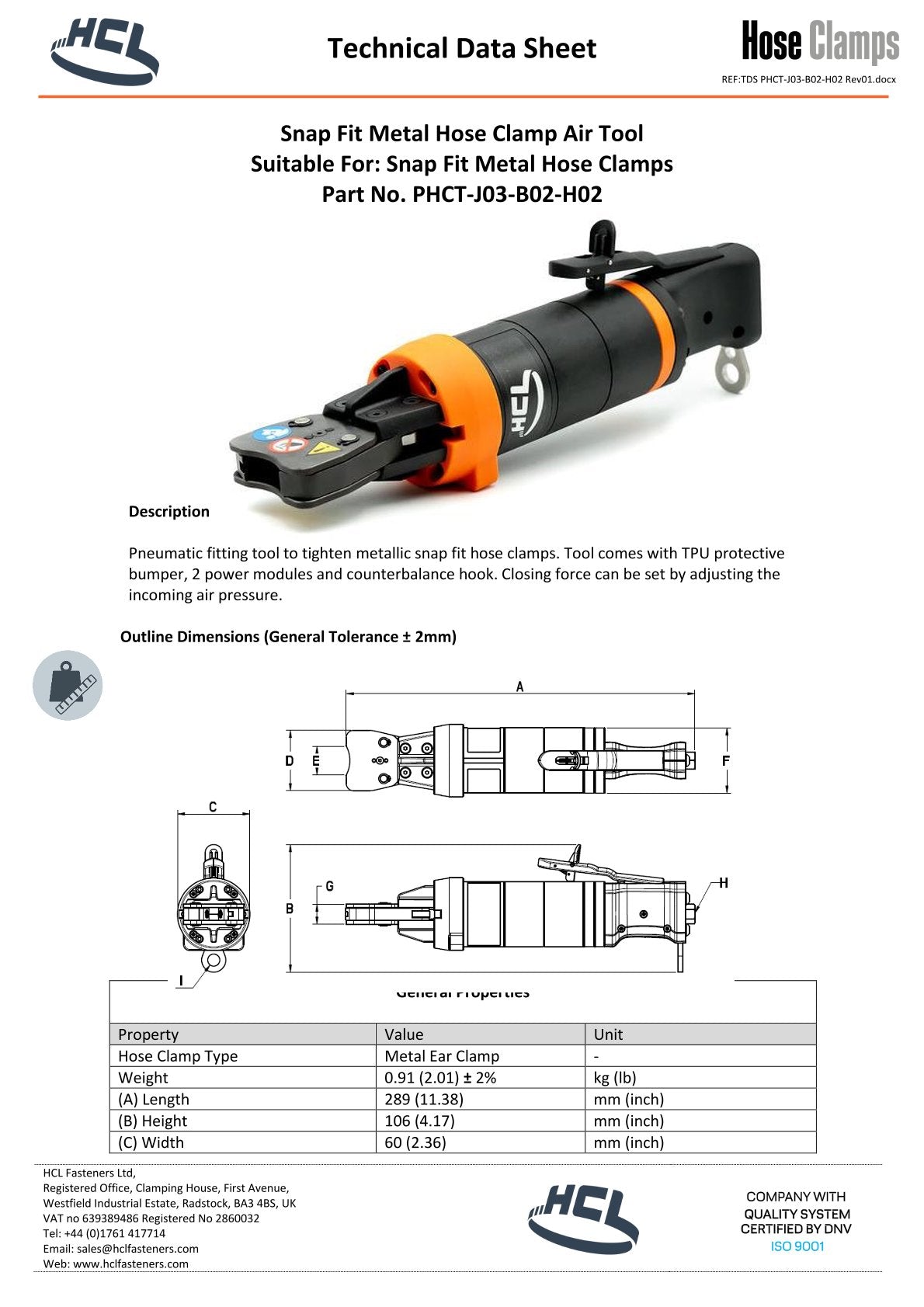

Scheda tecnica del prodotto

Scarica

Specifiche

Prodotto da HCL
Codice HCL PHCT-J03-B02-H02
Serie Clic, Cobra Hose Clamp Air Tool
Orientamento di montaggio Verticale
Da utilizzare con Fascette metalliche a scatto (Cobra ecc.)
Da utilizzare con il morsetto 1 Morsetto a clip Mikalor (EZY-M-PLUS)
Da utilizzare con il morsetto 2 Morsetto Norma Cobra (COBRA)
Da utilizzare con il morsetto 3 Morsetto Tridon Ezyclik-M (EZY-M)
Lunghezza utensile 290.0(11.42)
Peso dell'utensile 0.9kg (2.0lb)
Forza di chiusura massima 1149N (@ 6 Bar)
Larghezza mascella 50.0(1.97)
Ampiezza di chiusura della mascella 0 - 24.0mm
Dimensione filettatura ingresso aria 3.2mm (0.13in) in BSP
Paese di fabbricazione Regno Unito
Codice tariffario 8203 40 00 00
Marcatura CE Sì
Merci pericolose No
Conforme alla direttiva RoHS Sì

Perché scegliere questo utensile pneumatico HCL?

Designed for Metal Snap-Fit Clamps: This tool is expertly matched to the unique design of metal snap-fit hose clamps, ensuring a perfect, repeatable crimp that is crucial for a leak-proof and permanent connection.

One-Handed, Pneumatic Operation: The tool's design allows the user to effortlessly crimp the clamp with a single pull of the trigger. This frees up the other hand for holding the assembly, dramatically increasing speed and efficiency on a production line.

Consistent and Reliable: Air power eliminates manual variation, providing a calibrated and repeatable closing force every single time. This consistency is vital for maintaining product quality and integrity in high-volume environments.

High-Volume Efficiency: Designed for rapid, continuous use, this pneumatic tool drastically reduces installation time and operator fatigue compared to manual methods.

Lightweight and Ergonomic: The comfortable design is built for all-day use, making it an essential tool for any repetitive assembly task involving snap-fit clamps.

Perfetto per:

  • Automotive Assembly and Manufacturing.
  • Appliance Production (e.g., washing machines, dishwashers).
  • General Manufacturing where metal snap-fit clamps are used.
  • Any professional setting that requires a fast, reliable, and ergonomic solution for clamp installation.

Maximize your productivity and ensure flawless quality. Invest in the HCL Metal Snap-Fit Hose Clamp Air Tool and streamline your assembly process today!
