HCL | Utensile pneumatico (ad aria) per installazione | Per fascette stringitubo in polimero Ezyclik | Adatto per linee di produzione

HCL | Utensile pneumatico (ad aria) per installazione | Per fascette stringitubo in polimero Ezyclik | Adatto per linee di produzione

PHCT-J04-B02-H02

15.081,30 Kč
15.081,30 Kč
Vendita Esaurito

Esaurito
Visualizza tutti i dettagli

Hai bisogno di consigli? Rivolgiti al nostro team di assistenza clienti esperto.

Chiama

TBC
Dal lunedì al venerdì dalle 8:00 alle 16:00

E-mail

sales@hcl-clamping.eu

Descrizione

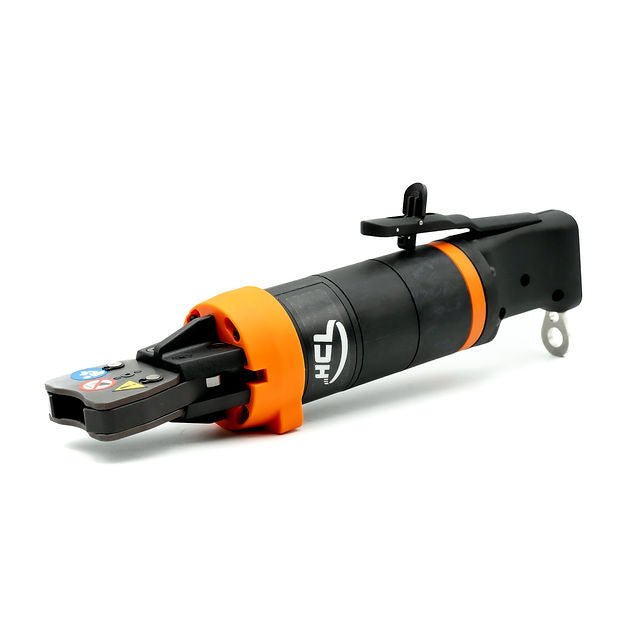

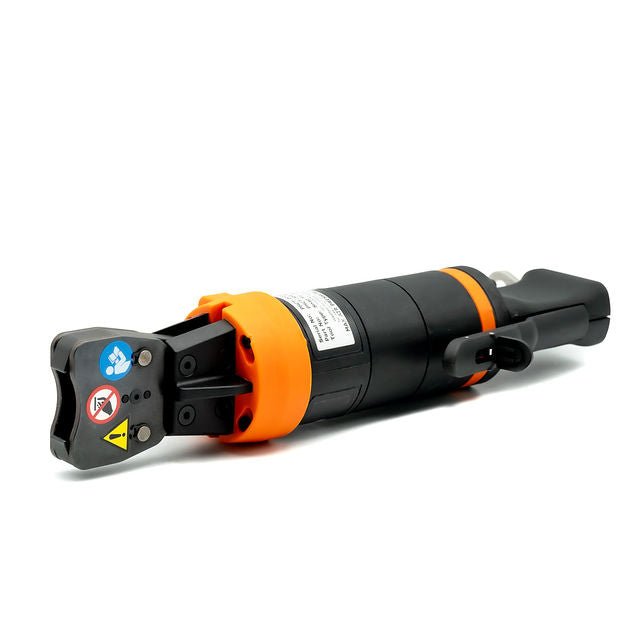

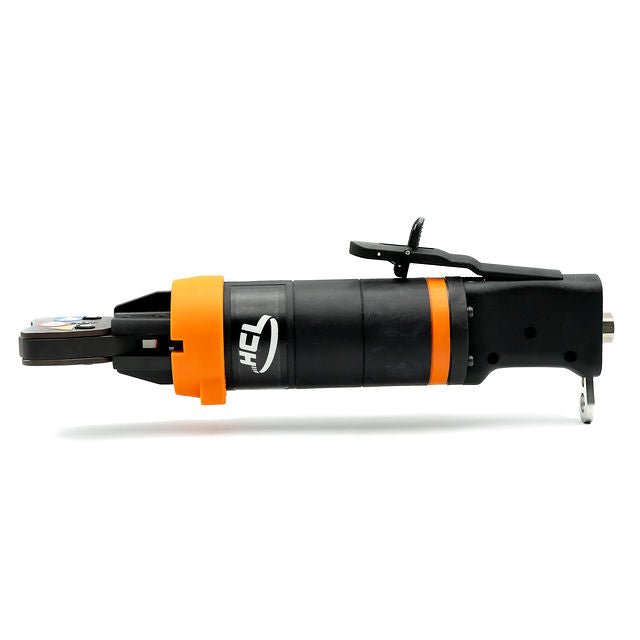

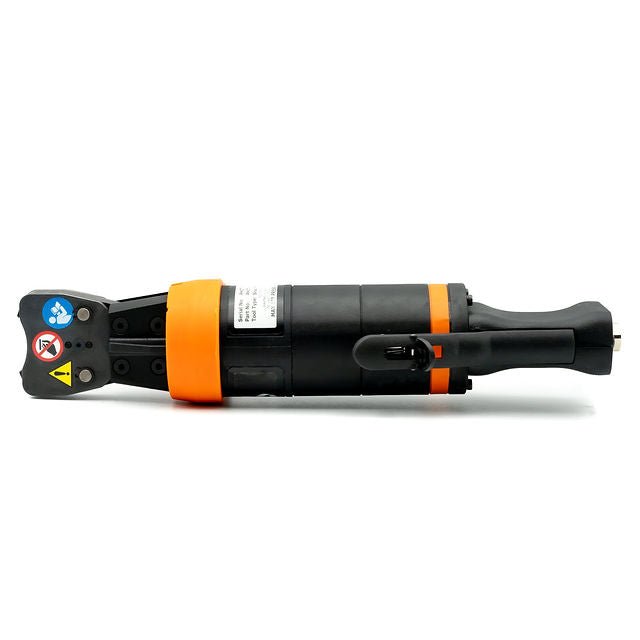

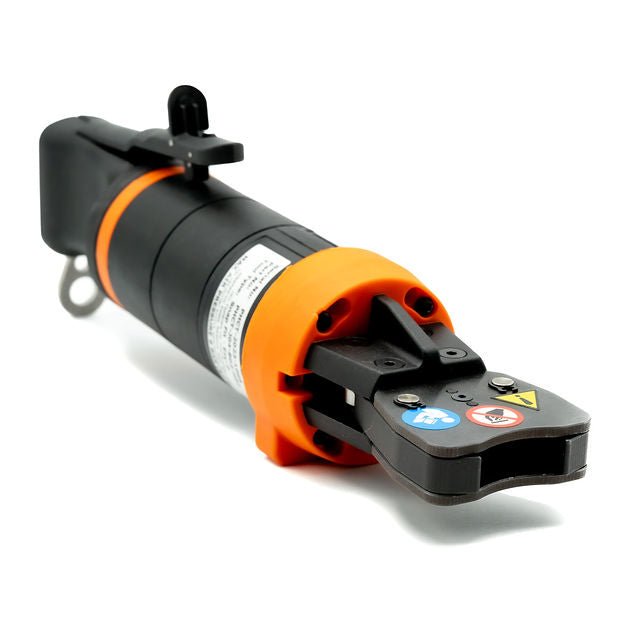

HCL Ezyclik-P Hose Clamp Air Tool - Fast & Audibly Confirmed Installation!. Ensure every connection is perfect with the HCL Ezyclik-P Hose Clamp Air Pneumatic Installation Tool, part number PHCT-J04-B02-H01. This specialized tool provides a fast, powerful, and audibly confirmed crimp, making the installation of Ezyclik-P clamps a simple, precise, and highly efficient process.

Calliper Jaw style tool able to install the Ezyclik-P Polymer snap fit Hose Clamp which is used for the installation of the HCL Ezyclick Polymer hose clamps or similar items. Pneumatic fitting tool to tighten Ezyclik™P plastic snap fit hose clamps. The tool comes with TPU protective bumper, 2 power modules and counterbalance hook. Closing force can be set by adjusting the incoming air pressure. Download the manual for configuration or contact us for further advice. Colour choice available on request.

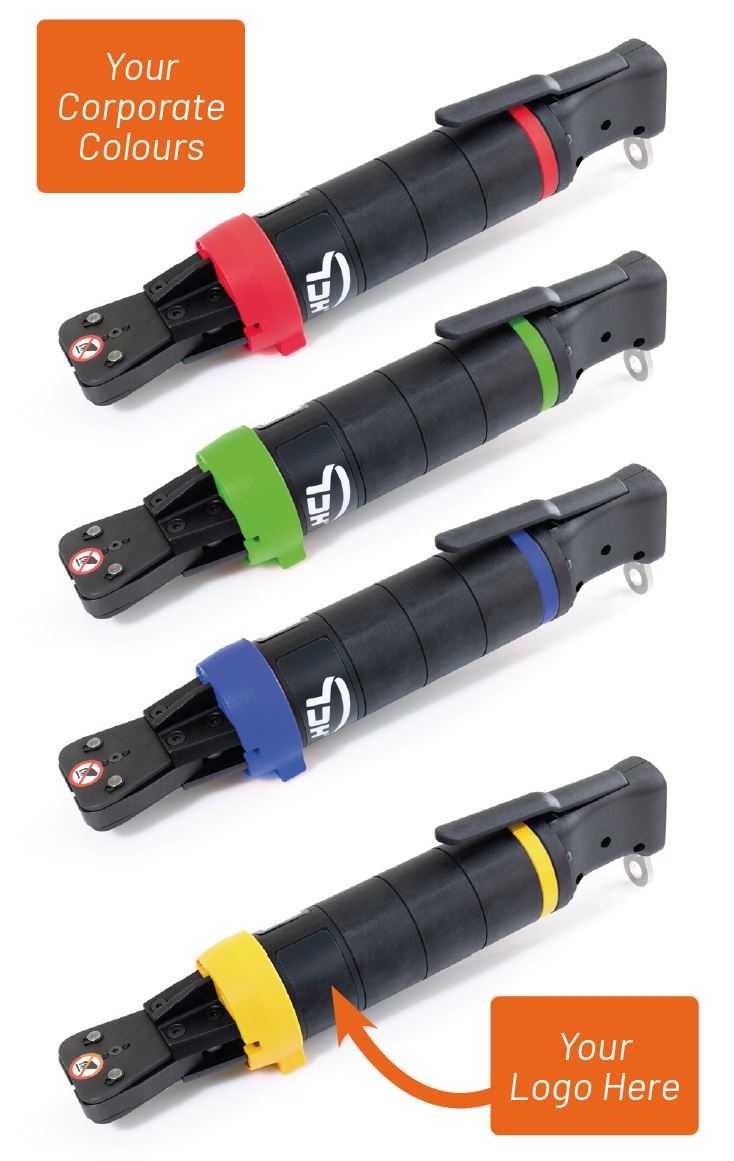

Conveniente: gli utensili pneumatici HCL sono i più convenienti attualmente disponibili sul mercato. Opzioni di personalizzazione: i colori e il logo possono essere modificati in base alle esigenze del cliente. Durata testata: il design degli utensili è stato testato per oltre 100.000 cicli.

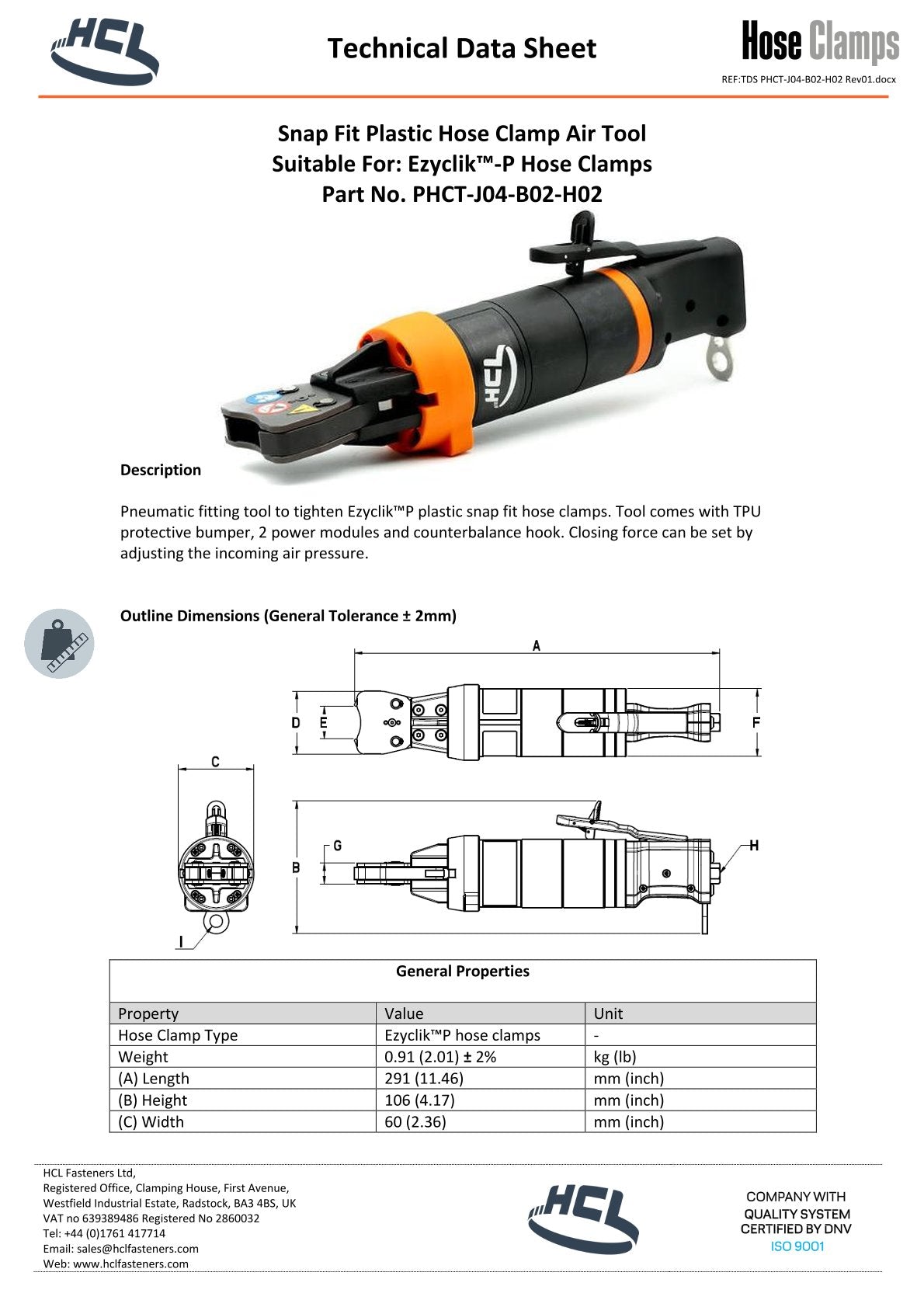

Scheda tecnica del prodotto

Scarica

Specifiche

Prodotto da HCL
Codice HCL PHCT-J04-B02-H02
Serie Ezyclik Polymer Hose Clamp Air Tool
Orientamento di montaggio Verticale
Da utilizzare con Fascette stringitubo HCL Ezyclik-P
Da utilizzare con il morsetto 1 Fascette stringitubo Ezyclik-P
Lunghezza utensile 291.0(11.46)
Peso dell'utensile 1.0kg (2.2 lb)
Forza di chiusura massima 1070 N (@ 6 Bar)
Larghezza mascella 50.0(1.97)
Ampiezza di chiusura della mascella 2.0mm - 26.0mm (0.08in - 1.02in)
Dimensione filettatura ingresso aria 3.2mm (0.13in) in BSP
Paese di fabbricazione Regno Unito
Codice tariffario 8203 40 00 00
Marcatura CE Sì
Merci pericolose No
Conforme alla direttiva RoHS Sì

Perché scegliere questo utensile pneumatico HCL?

Audible "Click" Confirmation: A unique and crucial feature, this tool produces a clear audible "click" sound upon the successful completion of a crimp. This provides instant, unmistakable verification that the clamp has been fully closed and the connection is secure.

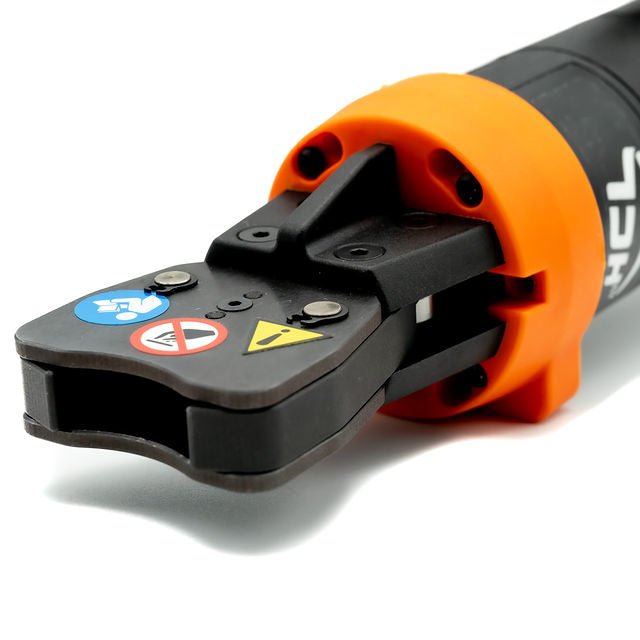

Designed for Ezyclik-P Clamps: The tool's jaws are expertly matched to the unique crimping mechanism of Ezyclik-P clamps, ensuring a perfect, repeatable crimp that is crucial for a leak-proof and permanent connection.

One-Handed, Pneumatic Operation: The tool's design allows the user to effortlessly crimp the clamp with a single pull of the trigger. This frees up the other hand for holding the assembly, dramatically increasing speed and efficiency on a production line.

Consistent and Reliable: Air power eliminates manual variation, providing a calibrated and repeatable closing force every single time. This consistency is vital for maintaining product quality and integrity in high-volume environments.

Lightweight and Ergonomic: The tool's comfortable design is built for all-day use, minimizing user fatigue during repetitive assembly tasks.

Perfetto per:

  • Automotive Assembly and Manufacturing.
  • Appliance Production where Ezyclik-P clamps are used.
  • Any professional setting that requires a fast, reliable, and audibly confirmed solution for clamp installation.
  • High-volume assembly lines focused on quality control and efficiency.

Maximize your productivity and ensure flawless quality. Invest in the HCL Ezyclik-P Hose Clamp Air Tool and streamline your assembly process today!
