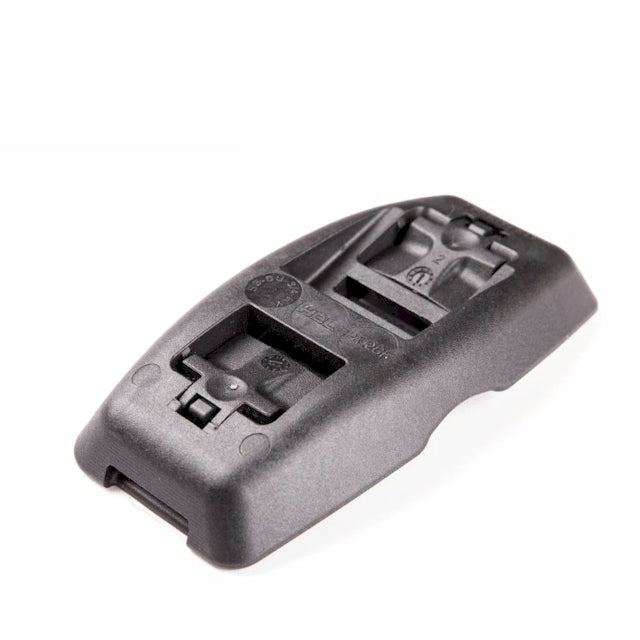

HCL | Hebilla para correa inteligente | Híbrida | 19 mm | Polímero acetal | Apta para correas inteligentes acetal de 19 mm

HCL | Hebilla para correa inteligente | Híbrida | 19 mm | Polímero acetal | Apta para correas inteligentes acetal de 19 mm

SB-BU-3/4-HY-POM

111,83 Kč
111,83 Kč
Venta Agotado

Agotado
Ver todos los detalles

¿Necesitas asesoramiento? Habla con nuestro equipo de atención al cliente experto.

Llamar

TBC
De lunes a viernes, de 8:00 a 16:00.

Correo electrónico

sales@hcl-clamping.eu

Descripción

Smart® Band es un sistema de banda y hebilla no metálico. Muy adecuado para una gran variedad de aplicaciones de flejado, no es corrosivo, no es conductor y no es magnético. La banda Smart Band está disponible en 4 anchuras y varias longitudes de carrete, y es capaz de soportar cargas extremas, lo que la convierte en el sistema de sujeción no metálico más resistente del mundo. Las cifras de resistencia dependen de la elección de la hebilla (consulte el folleto para obtener más información). HCL también ofrece una serie de herramientas de instalación para garantizar una instalación segura y sencilla.

The Hybrid buckles offer superior system strength in comparison to the standard buckles and are designed to be used with the compatible sized band of the same POM material.

Hoja de especificaciones del producto

Descargar

Especificación

Fabricado por HCL
Serie HCL Smart Band Hybrid
Resistencia a la corrosión Excelente
Material de la banda Acetal POM
Máxima resistencia 2238 libras-fuerza
Temperatura máxima de funcionamiento a largo plazo 203 °F (95 °C)
Inflamabilidad HB UL94 Autoextinguible
Intemperie y rayos UV Excelente
Resistencia química Bien
Color Negro
Para usar con 19mm POM Reels
País de fabricación Reino Unido
Código arancelario 3917 40 00 99
Cumple con la normativa RoHS Sí

Smart Band POM Hybrid Buckle (19mm) | Acetal Polymer for High Stiffness & Dimensional Stability

Achieve a precise, highly consistent, and secure clamp with the Smart Band POM Hybrid Buckle. Made from high-performance Acetal (Polyoxymethylene) polymer, this buckle is engineered for superior stiffness and exceptional resistance to creep, ensuring the tension you apply is maintained over the long term.

Why Choose This POM Hybrid Buckle?

High Stiffness and Dimensional Stability (POM): Utilizing Acetal (POM), this buckle boasts high mechanical stiffness and minimal moisture absorption. This ensures the component maintains its precise dimensions and high clamping force over time, even with temperature and humidity fluctuations.

Excellent Creep Resistance: The superior resistance to creep (material deformation under continuous load) is the key differentiator. This ensures that the initial tension applied to the band remains consistent, preventing the bundle from loosening over the service life of the connection.

Low Friction Installation: The naturally low coefficient of friction of the Acetal material allows the banding to slide smoothly during tensioning, helping technicians achieve maximum, uniform, and precise tension without binding.

Non-Corrosive & Non-Conductive: Like other high-performance polymer solutions, it is completely immune to rust and general corrosion and is non-conductive, making it safe for both electrical and harsh chemical environments.

19mm Standard Size: The 19mm width is compatible with corresponding standard-width Smart Band materials for versatile application.

Perfecto para:

  • Applications requiring consistent clamping force over a long period.
  • Securing bundles subject to constant vibration or mechanical load.
  • Telecommunications and electrical utility work (non-conductive benefit).
  • Industrial applications where stability and resistance to creep are paramount.

For stable, long-lasting tension in your critical bundles, choose mechanical precision. Order the Smart Band POM Hybrid Buckle today!
