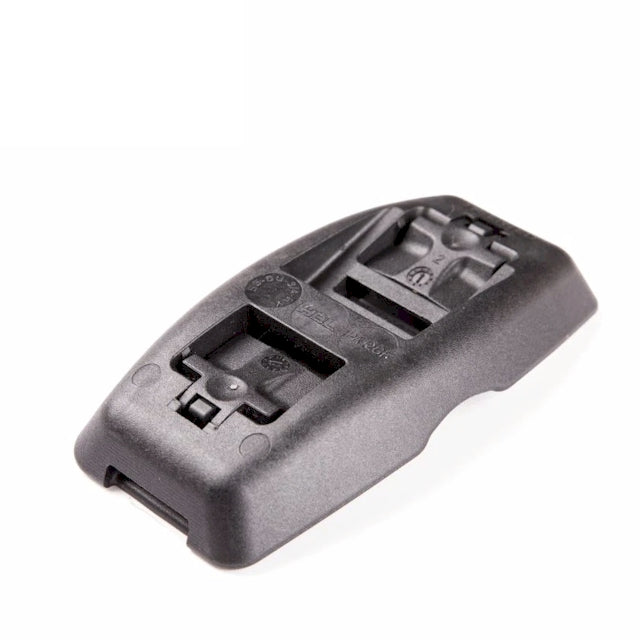

  • HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band 19.0mm (0.74in) - HCL Fasteners EU - Image 1
1 1

HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band

HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band

SB-BU-3/4-HY-PA12GF

155,22 Kč
155,22 Kč
Sale Sold out

Out of stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu
Scroll
For Band Width ?

Band Width in/mm: Specifies the measurement across the width of the band, provided in both inches & Millimetres.

Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Max System Str ?

Max System Str: The overall maximum strength or working pressure limit of the assembled system.

HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band
HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band
- 		19.0mm (0.74in) - Min 200.0mm - 7.87in - 1321kgf - 2911lbf - SB-BA-3/4-HY-PA12GF - - - - 155,22 Kč 0
HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band
HCL Smart Band Buckle | Hybrid | 19mm & 32mm Wide | PA12 Material | Suitable for 19mm & 32mm PA12 Smart Band

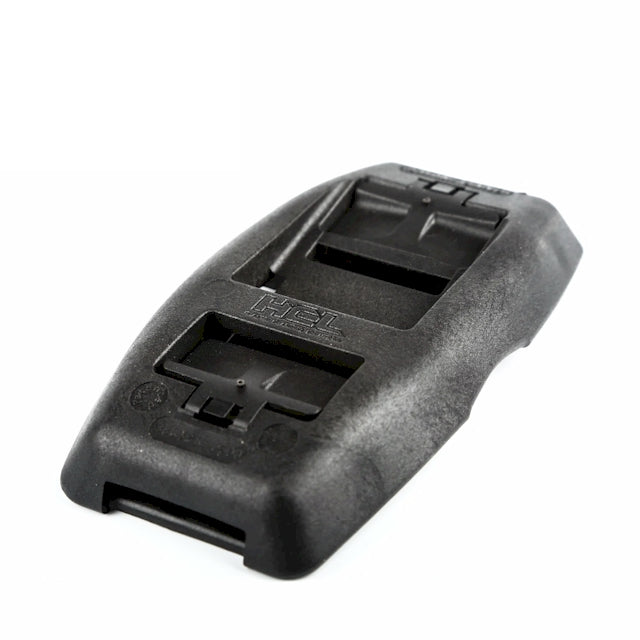

- 		32.0mm (1.25in) - Min 400.0mm - 15.74in - 2344kgf - 5166lbf - SB-BU-1-1/4-HY-PA12GF - - - - 316,15 Kč 0

Description

Smart® Band is a non-metallic band and buckle system. Highly suited to a variety of Banding applications, Non-Corrosive, Non-Conductive & Non-Magnetic. The Smart Band is available in 4 widths and several reel lengths and is capable of withstanding extreme loads making it the strongest non-metallic clamping system in the world. Strength figures are dependent on Buckle Choice (see brochure for more information) HCL also offers a number of installation tools to provide safe & simple installation.

The Hybrid buckles offer superior system strength in comparison to the standard buckles and are designed to be used with the compatible sized band of the same PA12 material- The PA12 offers enhanced UV & Weathering resistance and long life subsea characteristics over the PA66 material

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N SB-BU-X-HY-PA12GF
Series HCL Smart Band Hybrid
Corrosion Resistance Excellent
Band Material Nylon 12 (PA12)
Max Strength 5166 lbf
Max long Term Operating Temp 230°F (110°C)
Flammability HB UL94 Self Extinguishing
Weathering & UV Excellent
Chemical Resistance Good
Colour Black
For use with 19mm & 32mm PA12 Reels
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
RoHS Compliant Yes

Smart Band PA12 Hybrid Buckle | Dual-Width Nylon 12 Head (19mm & 32mm)

Maximize your inventory efficiency and secure your most challenging bundles with the Smart Band PA12 Hybrid Buckle. Featuring a high-performance Nylon 12 head that resists moisture and chemicals, this unique buckle is engineered to fit both 19mm and 32mm banding, offering versatile, reliable fastening for any environment.

Why Choose This PA12 Dual-Width Buckle?

Versatile Dual-Width Compatibility: The distinguishing feature is its innovative design that accommodates both 19mm and 32mm band widths. This simplifies stocking, reduces inventory costs, and provides field technicians with a single solution for varying load requirements.

Low Moisture Absorption (PA12): The premium Nylon 12 Polymer (PA12) absorbs significantly less moisture than standard nylon, ensuring the buckle's mechanical strength and dimensional stability remain consistent in wet, humid, or outdoor conditions.

Superior Chemical Resistance: I will stress the excellent resistance to aggressive agents like road salts, chlorides, and solvents, minimizing the risk of environmental stress cracking common with less advanced polymers.

Non-Corrosive & Non-Conductive: The PA12 head is entirely immune to rust and general corrosion and is non-conductive, making it a safe and ideal choice for securing sensitive electrical and telecommunications equipment.

Hybrid System Advantage: Designed as the high-performance head for a hybrid system, it leverages the benefits of the polymer for resistance and insulation while allowing coupling with a strong composite or metal band.

Perfect For:

  • Field service crews requiring a versatile, multi-size fastening solution.
  • Outdoor environments exposed to high humidity, salt spray, or cold temperatures.
  • Securing electrical or telecommunications cables where non-conductivity is vital.
  • Industrial applications dealing with corrosive brines or solvents.

Simplify your inventory and fortify your connections against the elements. Order the Smart Band PA12 Hybrid Buckle today!
