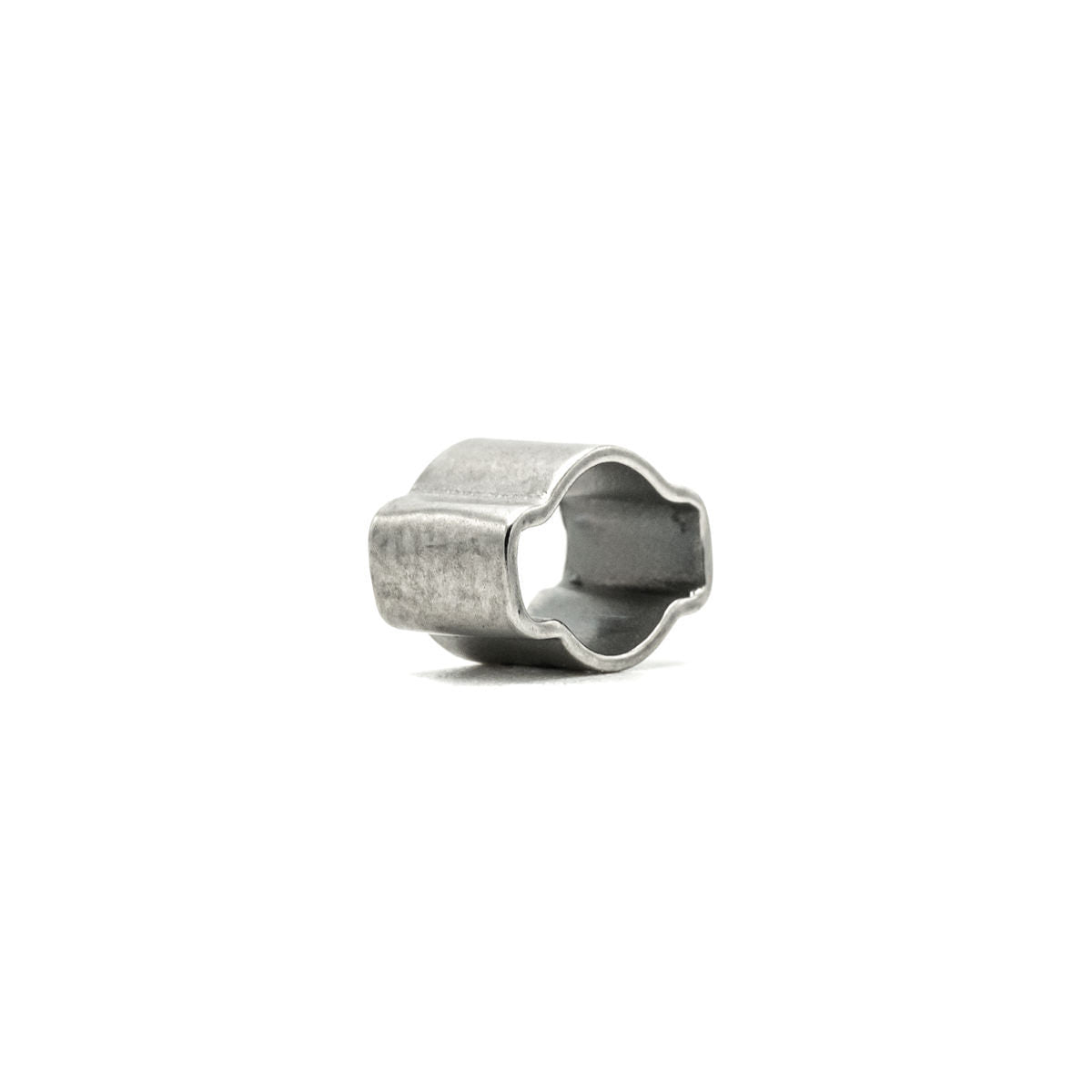

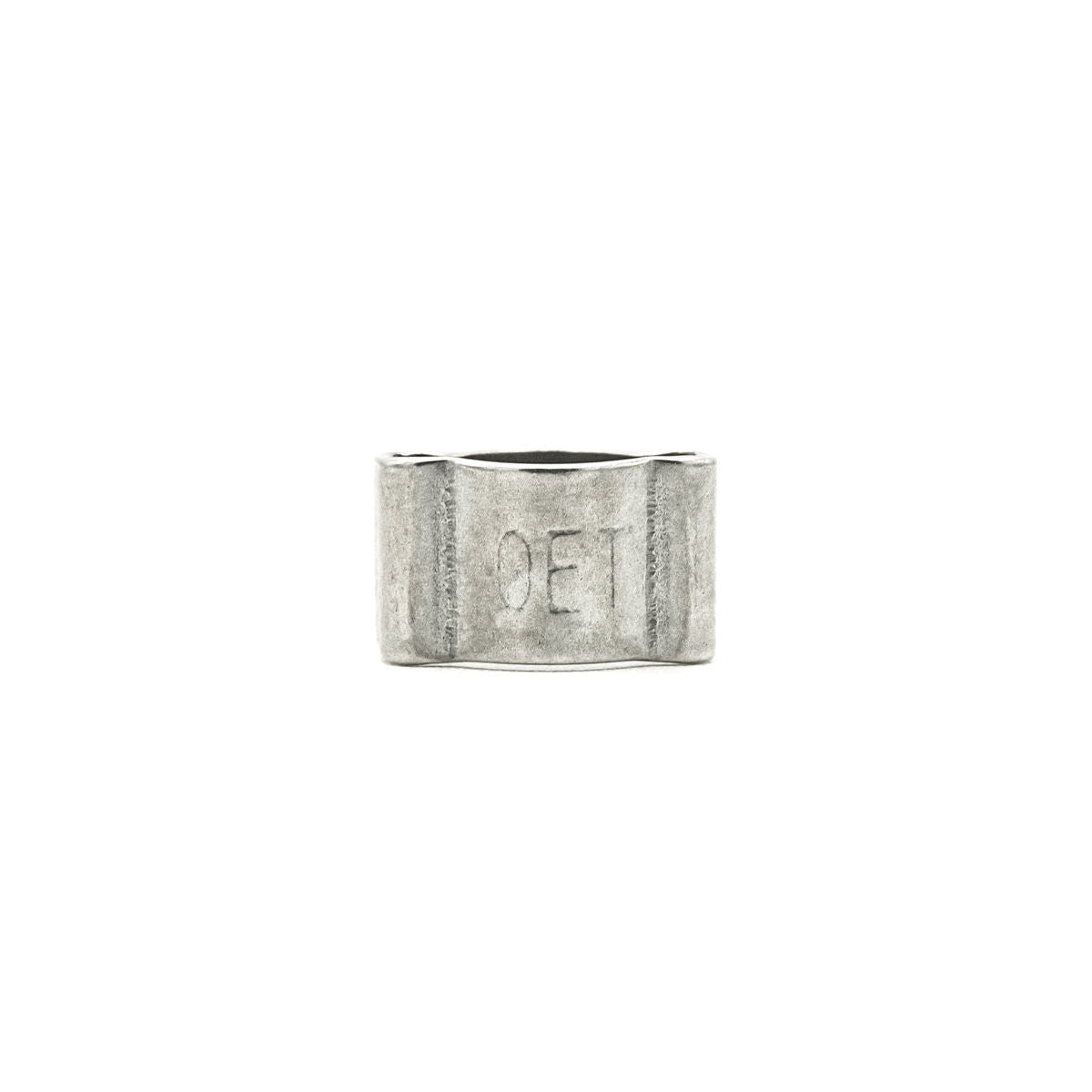

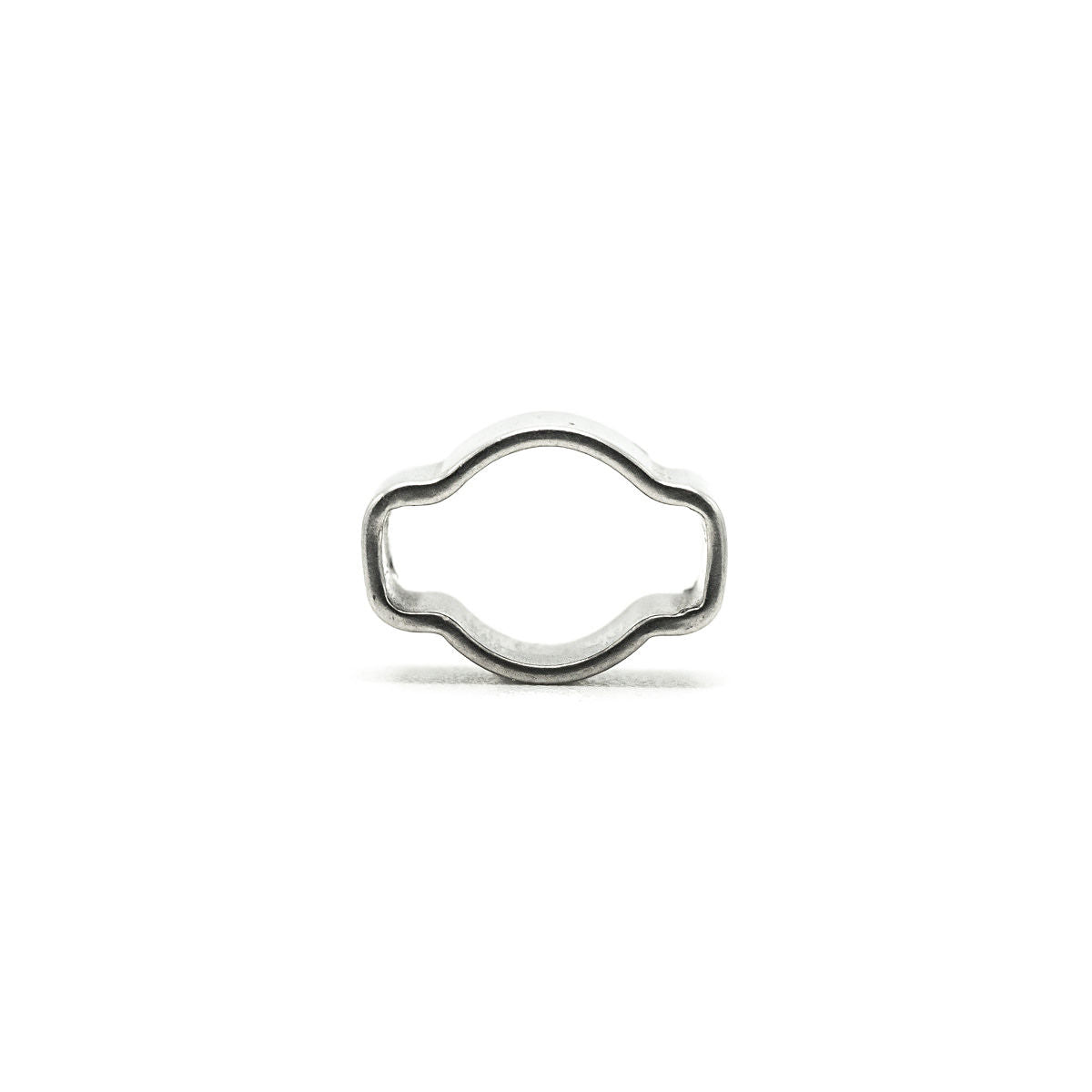

Oetiker| Double Pinch (Ear) Hose Clamps | W4 304 Stainless Steel | Tamper Proof

SKU:OET-DEC-151-W4-3.1

16,37 Kč

Sale Sold out

100 in stock

Quantity

Free standard shipping. Next day delivery available. Find out more

View full details

Need advice? Talk to our expert customer support team

Call

TBC
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.eu

Scroll

Clamp Dia mm ? Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.	Clamp Dia In ? Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.	MFG P/N ? MFG P/N: The unique identifying number assigned to a part by its manufacturer.	HCL P/N ? HCL/ PN: The unique identifying number assigned to a part by HCL	Corrosion Res ? Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.	Price ? Price: The cost per unit	Stock ? Stock: available products that can be purchased	Order Qty ? Order Quantity: The total amount of units you wish to order
3.1mm - 4.3mm -	0.12in - 0.17in -	15100000 -	OET-DEC-151-W4-3.1 -	Very Good -	16,37 Kč	100
3.4mm - 5.0mm -	0.13in - 0.20in -	15100002 -	OET-DEC-151-W4-3.4 -	Very Good -	16,86 Kč	100

Description

The ears of these clamps do not have a dimple and nearly double the clamping range, compared to the 1-ear clamp. 2 ears provide a degree of elasticity to accommodate changes in size of the parts being joined, such as that which may be caused by thermal expansion or vibration.

Installation techniques are similar to those for 1-Ear Clamps, but the force applied when closing the second ear may react against the opposing closed ear and make a second crimping operation necessary. For perfect sealing, the ears must be adequately
closed during installation

The ears of these clamps should be closed with the recommended, uniform force (known as force priority). This method will result in a constant, reproducible stress within the clamp material, without overloading either the clamp or the parts being assembled. The
nominal diameter of the clamp should always be chosen so that, when installed with the correct clamping force, the ears are almost closed.

Product Specification Sheet

Download

Specification

Manufactured By	Oetiker
HCL P/N	OET-DEC-151-W4-X
Series	Double Ear
Corrosion Resistance	Very Good
Corrosion Specification	800 hours Corrosion resistance according to DIN EN ISO 9227
Band Material	W4 304 Stainless Steel
Finish	Stainless Steel
Colour	Silver
Country of Manufacture	Germany
Tariff Code	7326 90 92
Hazardous Goods	No
RoHS Compliant	Yes
