HCL | Pneumatický (vzduchový) instalační nástroj | Pro spony Herbie velikosti N-85 | Vhodné pro výrobní linky

HCL | Pneumatický (vzduchový) instalační nástroj | Pro spony Herbie velikosti N-85 | Vhodné pro výrobní linky

PHCT-J07-B02-H02

€822,94
822,94
Akce Vyprodáno
Shipping calculated at checkout.

Není skladem
  • Standardní doprava zdarma. Možnost doručení následující den. Zjistěte více
Zobrazit podrobnosti

Potřebujete poradit? Obraťte se na náš tým odborné zákaznické podpory

Zavolejte

Bude upřesněno
Pondělí-pátek 8:00 až 16:00

E-mail

sales@hcl-clamping.eu

Popis

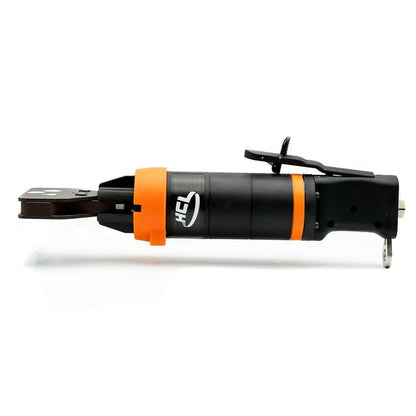

HCL Herbie Clip Air Tool (Large) - The Definitive Pneumatic Crimping Solution! Master the installation of standard and large-diameter Herbie Clips with the specialized HCL Herbie Clip Hose Clamp Air Tool, part number PHCT-J07-B02-H02. Engineered to deliver substantial and consistent pneumatic force, this tool guarantees a fast, precise, and secure crimp for all your heavy-duty hose assembly needs.

Calliper Jaw style tool able to install the Herbie Clip Double Grip Polymer Hose Clamp - works with sizes ; Can also be used with alternative products such as the Hellerman Snapper, Heyco, Micro Plastics or Essentra Clamps. Contact us for configuration. Works with Herbie Clips size N-85

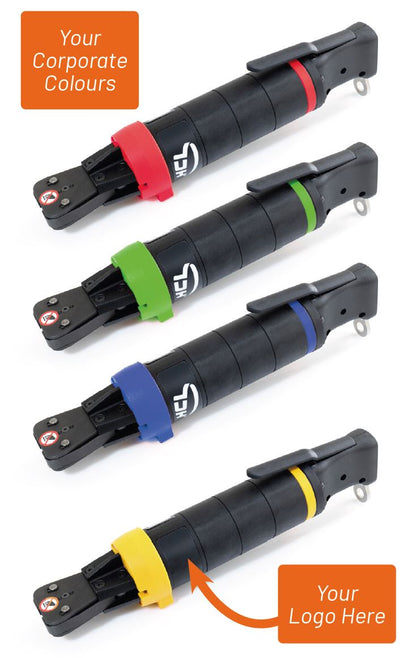

Affordable: HCL Air Tools are the most affordable in the market today. Branding Options: Colours & Logo can be changed to suit client requirements. Tested Durability: Tool design has been tested over many 100k cycles

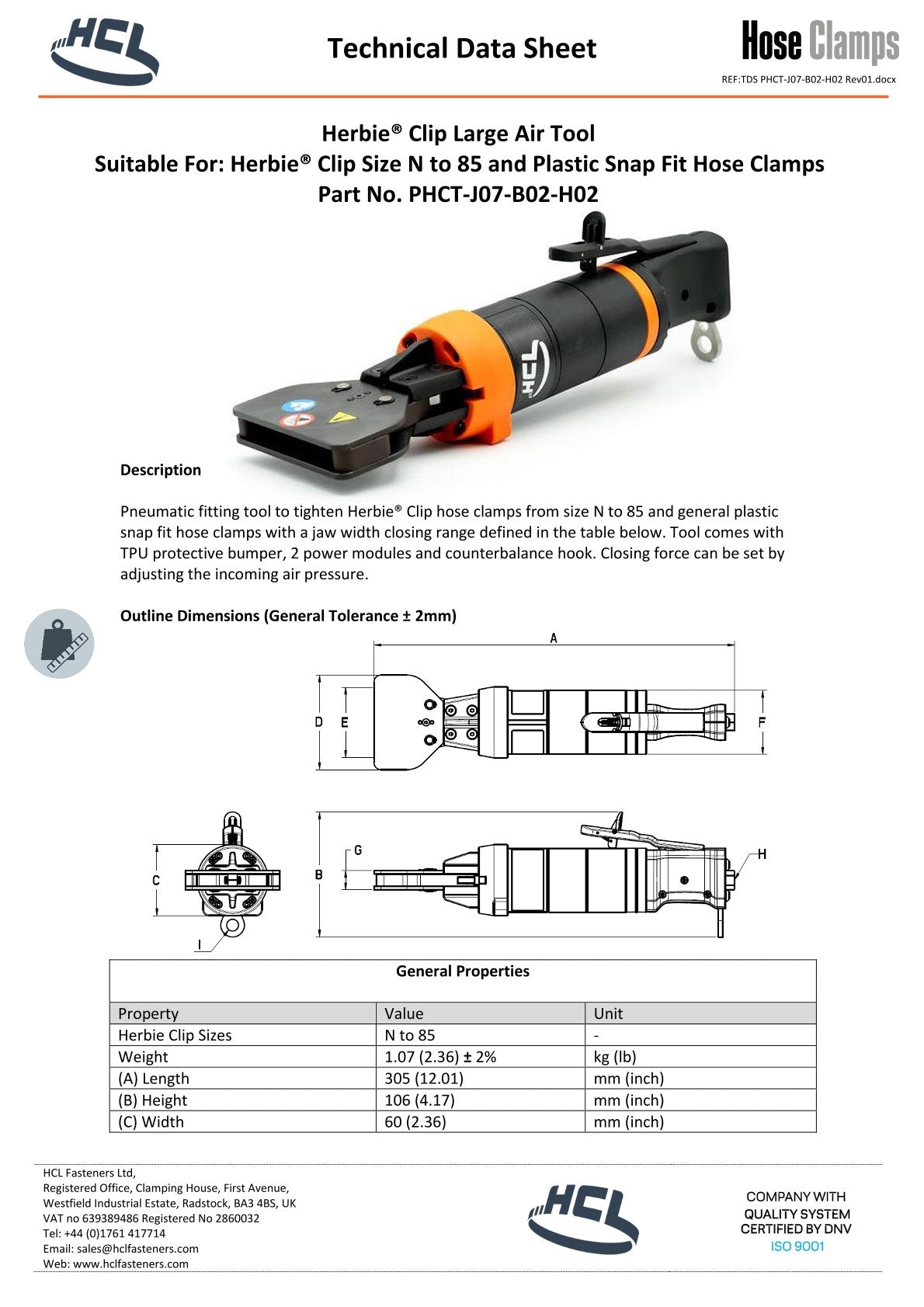

Technický list výrobku

Stáhnout

Specifikace

Výrobce HCL
HCL č. dílu PHCT-J07-B02-H02
Série Herbie Clip Air Tool Large
Orientace montáže Svislá
Pro použití s Herbie Clip Hose Clamps sizes N-85
Pro použití se sponou 1 Herbie Clips Black & Natural sizes N-85
Délka nástroje 300.0(11.81)
Hmotnost nástroje 1.1kg (2.4lb)
Maximální uzavírací síla 702N (@ 6 Bar)
Šířka čelistí 80.0(3.15)
Rozsah uzavírání čelistí 25.0 - 59.0mm
Velikost závitu vzduchového vstupu 3,2 mm (0,13 palce) v BSP
Země výroby Spojené království
Celní kód 8203 40 00 00
Označeno CE Ano
Nebezpečné zboží Ne
Vyhovuje RoHS Ano

Proč si vybrat toto pneumatické nářadí HCL?

Large Capacity for Versatility: This tool is expertly designed to handle the most common range of Herbie Clips, making it the essential tool for standard automotive, truck, and industrial hose applications.

Consistent Pneumatic Power: Air power eliminates manual effort, providing a calibrated and repeatable crimping force every single time. This is critical for ensuring the long-term, leak-proof integrity of your connections on an assembly line.

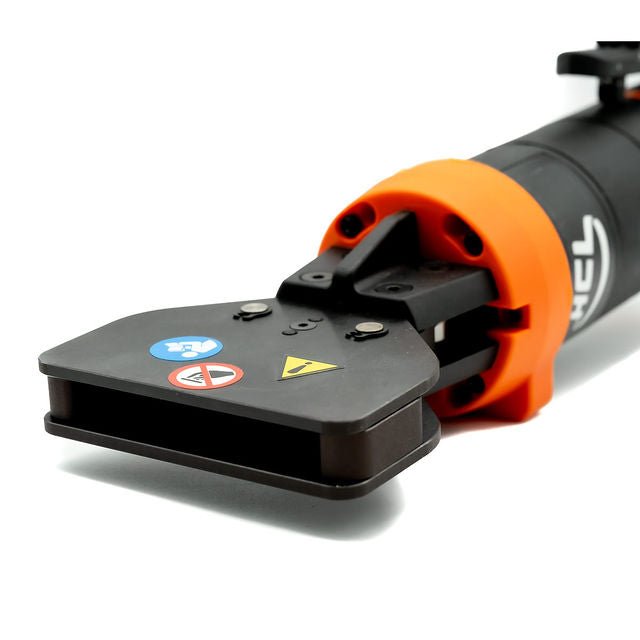

Precision Herbie Clip Jaw: The jaws are expertly matched to the unique double-tooth configuration of the Herbie Clip, ensuring proper engagement and a perfect, non-slip crimp without damaging the clamp or the hose.

High-Volume Efficiency: Designed for production or frequent use, this tool drastically reduces installation time compared to manual methods, boosting productivity and throughput.

Robust Industrial Build: Made from durable, high-quality components, this pneumatic tool is built to withstand the continuous, high-intensity demands of a professional assembly line or service workshop.

Ideální pro:

  • Automotive and Industrial Assembly Lines.
  • Heavy Equipment Maintenance and service workshops.
  • Manufacturing facilities using Herbie Clips.
  • High-volume installations of standard to large-diameter Herbie Clips.

Maximize power and consistency in your clamping. Invest in the HCL Herbie Clip Hose Clamp Air Tool (Large) and secure your connections with confidence today!
